Model Comparison of Network Camera

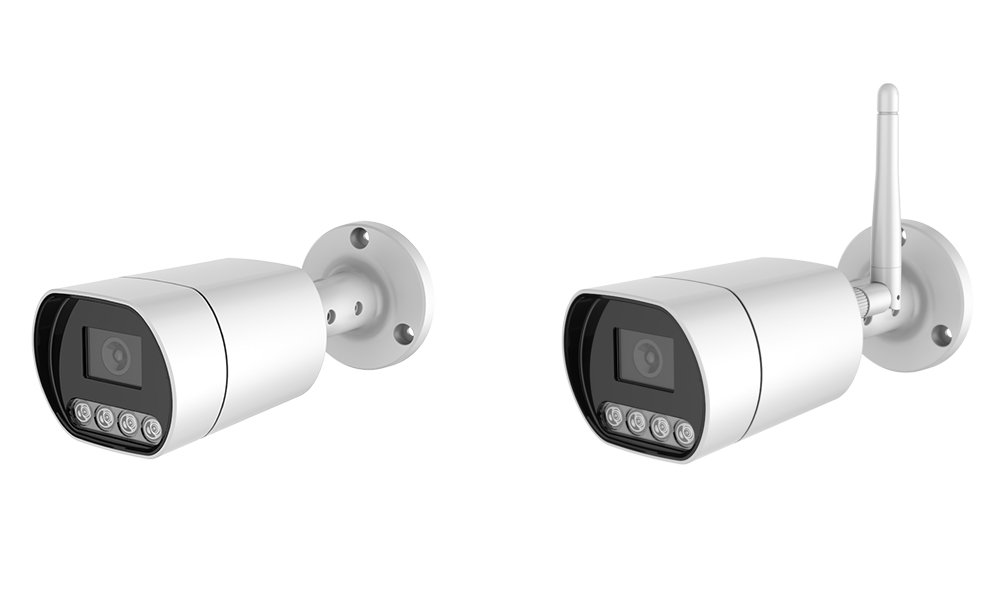

Bullet | 2x LED | Fixed Lens Series
|
Part Number
|
||||||
|
Type
|
4K(8MP) PoE
|
4K(8MP) WiFi
|
5MP PoE
|
5MP WiFi
|
3MP PoE
|
3MP WiFi
|
|
Light Mode
|
IR or Dual Light(IR+WARM)
|
Dual Light(IR+WARM)
|
||||
|
Resolution
|
3840*2160@15fps
|
2592*1944@30fps
|
2304*1296@30fps
|
|||
|
Sensor
|
1/2.8" Progressive Scan CMOS Sensor
|
|||||
|
Lens
|
2.8mm(BY DEFAULT)/3.6mm/6mm/8mm
|
|||||
| WDR |
80dB
|
|||||
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
|||||
|
Video Encoding
|
H.265/H.264
|
|||||
|
Audio Encoding
|
AAC/G.711A/G.711U
|
|||||
|
Sampling
|
up to 16K
|
|||||
|
Bitrate Type
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|||||
|
Bitrate
|
256kbps~8Mbps(Configurable)
|
|||||
|
Frame Rate
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max. 4K@15FPS
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable);
|
||||
|
Features
|
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
|
|||||
|
Image Adjustment
|
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
|
|||||
|
Protocols
|
IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, RTSP, PPPOE, SMTP, UPNP, VOIP
|
|||||
|
Compatibility
|
ONVIF(Profile S/Profile G/Profile T), CGI, RTMP, RTSP, Hikvision, Dahua
|
|||||
|
AI Features
|
Human Detection, Motion Detection, Linecrossing Detection, Intrusion Detection.
|
|||||
|
Network Port
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|||||
|
Audio Port
|
Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port for Optional
|
|||||
|
Hardware Reset
|
Yes, built-in RESET button in the pigtail cable.
|
|||||

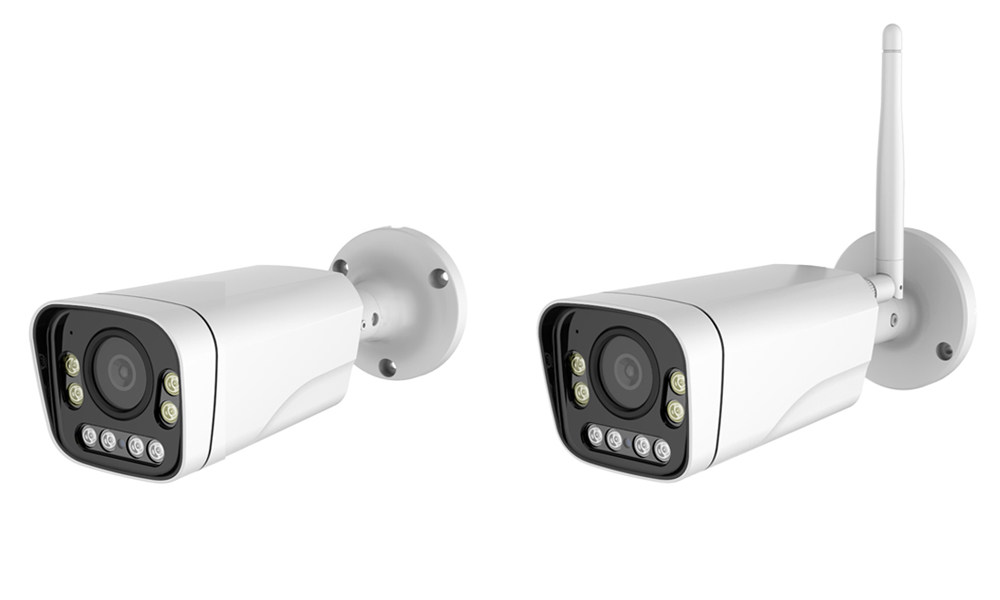

Bullet | 4x LED | Fixed Lens Series
|
Part Number
|
||||||
|
Type
|
4K(8MP) PoE
|
4K(8MP) WiFi
|
5MP PoE
|
5MP WiFi
|
3MP PoE
|
3MP WiFi
|
|
Light Mode
|
IR or Dual Light(IR+WARM)
|
Dual Light(IR+WARM)
|
||||
|
Resolution
|
3840*2160@15fps
|
2592*1944@30fps
|
2304*1296@30fps
|
|||
|
Sensor
|
1/2.8" Progressive Scan CMOS Sensor
|
|||||
|
Lens
|
2.8mm(BY DEFAULT)/3.6mm/6mm/8mm
|
|||||
| WDR |
80dB
|
|||||
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
|||||
|
Video Encoding
|
H.265/H.264
|
|||||
|
Audio Encoding
|
AAC/G.711A/G.711U
|
|||||
|
Sampling
|
up to 16K
|
|||||
|
Bitrate Type
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|||||
|
Bitrate
|
256kbps~8Mbps(Configurable)
|
|||||
|
Frame Rate
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max. 4K@15FPS
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable);
|
||||
|
Features
|
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
|
|||||
|
Image Adjustment
|
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
|
|||||
|
Protocols
|
IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, RTSP, PPPOE, SMTP, UPNP, VOIP
|
|||||
|
Compatibility
|
ONVIF(Profile S/Profile G/Profile T), CGI, RTMP, RTSP, Hikvision, Dahua
|
|||||
|
AI Features
|
Human Detection, Motion Detection, Linecrossing Detection, Intrusion Detection.
|
|||||
|
Network Port
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|||||
|
Audio Port
|
Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port for Optional
|
|||||
|
Hardware Reset
|
Yes, built-in RESET button in the pigtail cable.
|
|||||
Bullet | 8x LED | Fixed Lens Series
|
Part Number
|
ZSD5PSH16A
|
ZSD5WSH16A
|
ZSD3PSH16A
|
ZSD3WSH16A
|
||
|
Type
|
4K(8MP) PoE
|
4K(8MP) WiFi
|
5MP PoE
|
5MP WiFi
|
3MP PoE
|
3MP WiFi
|
|
Light Mode
|
IR or Dual Light(IR+WARM)
|
Dual Light(IR+WARM)
|
||||
|
Resolution
|
3840*2160@15fps
|
2592*1944@30fps
|
2304*1296@30fps
|
|||
|
Sensor
|
1/2.8" Progressive Scan CMOS Sensor
|
|||||
|
Lens
|
2.8mm(BY DEFAULT)/3.6mm/6mm/8mm/12mm
|
|||||
| WDR |
80dB
|
|||||
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
|||||
|
Video Encoding
|
H.265/H.264
|
|||||
|
Audio Encoding
|
AAC/G.711A/G.711U
|
|||||
|
Sampling
|
up to 16K
|
|||||
|
Bitrate Type
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|||||
|
Bitrate
|
256kbps~8Mbps(Configurable)
|
|||||
|
Frame Rate
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max. 4K@15FPS
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable);
|
||||
|
Features
|
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
|
|||||
|
Image Adjustment
|
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
|
|||||
|
Protocols
|
IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, RTSP, PPPOE, SMTP, UPNP, VOIP
|
|||||
|
Compatibility
|
ONVIF(Profile S/Profile G/Profile T), CGI, RTMP, RTSP, Hikvision, Dahua
|
|||||
|
AI Features
|
Human Detection, Motion Detection, Linecrossing Detection, Intrusion Detection.
|
|||||
|
Network Port
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|||||
|
Audio Port
|
Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port for Optional
|
|||||
|
Hardware Reset
|
Yes, built-in RESET button in the pigtail cable.
|
|||||
Bullet | 8x LED | Varifocal Lens
| Part Number | ||
|
Type
|
4K(8MP) PoE
|
4K(8MP) WiFi
|
|
Light Mode
|
IR or Dual Light(IR+WARM)
|
|
|
Resolution
|
3840*2160@15fps
|
|
|
Sensor
|
1/2.8" Progressive Scan CMOS Sensor
|
|
|
Lens
|
2.7~13.5mm
|
|
|
WDR
|
80dB
|
|
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
|
|
Video Encoding
|
H.265/H.264
|
|
|
Audio Encoding
|
AAC/G.711A/G.711U
|
|
|
Sampling
|
up to 16K
|
|
|
Bitrate Type
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|
|
Bitrate
|
256kbps~8Mbps(Configurable)
|
|
|
Frame Rate
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max. 4K@15FPS
|
|
|
Features
|
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
|
|
|
Image Adjustment
|
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
|
|
|
Protocols
|
IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, RTSP, PPPOE, SMTP, UPNP, VOIP
|
|
|
Compatibility
|
ONVIF(Profile S/Profile G/Profile T), CGI, RTMP, RTSP, Hikvision, Dahua
|
|
|
AI Features
|
Human Detection, Motion Detection, Linecrossing Detection, Intrusion Detection.
|
|
|
Network Port
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
|
Audio Port
|
Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port for Optional
|
|
|
Hardware Reset
|
Yes, built-in RESET button in the pigtail cable.
|
|

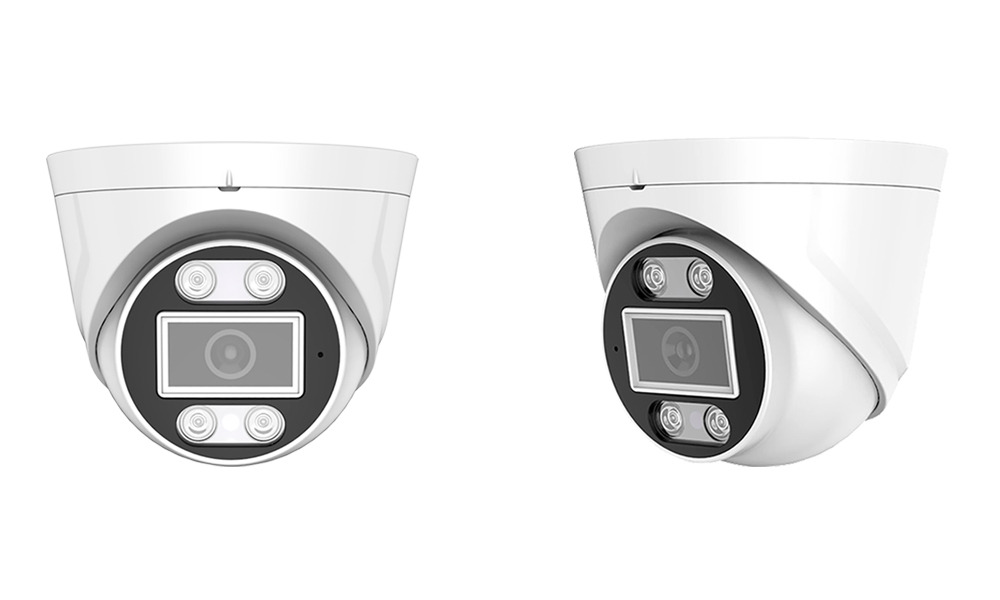

Dome | 4x LED | Fixed Lens Series
|
Part Number
|
ZBQ8PSH16F (X)
|
ZBQ5PSH16F (X)
|
ZBQ3PSH16F (X)
|
|||
|
Type
|
4K(8MP) PoE
|
4K(8MP) WiFi
|
5MP PoE
|
5MP WiFi
|
3MP PoE
|
3MP WiFi
|
|
Light Mode
|
IR or Dual Light(IR+WARM)
|
Dual Light(IR+WARM)
|
||||
|
Resolution
|
3840*2160@15fps
|
2592*1944@30fps
|
2304*1296@30fps
|
|||
|
Sensor
|
1/2.8" Progressive Scan CMOS Sensor
|
|||||
|
Lens
|
2.8mm(BY DEFAULT)/3.6mm/6mm/8mm
|
|||||
| WDR |
80dB
|
|||||
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
|||||
|
Video Encoding
|
H.265/H.264
|
|||||
|
Audio Encoding
|
AAC/G.711A/G.711U
|
|||||
|
Sampling
|
up to 16K
|
|||||
|
Bitrate Type
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|||||
|
Bitrate
|
256kbps~8Mbps(Configurable)
|
|||||
|
Frame Rate
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max. 4K@15FPS
|
50Hz: 1-25fps; 60Hz: 1-30fps(Configurable);
|
||||
|
Features
|
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
|
|||||
|
Image Adjustment
|
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
|
|||||
|
Protocols
|
IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, RTSP, PPPOE, SMTP, UPNP, VOIP
|
|||||
|
Compatibility
|
ONVIF(Profile S/Profile G/Profile T), CGI, RTMP, RTSP, Hikvision, Dahua
|
|||||
|
AI Features
|
Human Detection, Motion Detection, Linecrossing Detection, Intrusion Detection.
|
|||||
|
Network Port
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|||||
|
Audio Port
|
Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port for Optional
|
|||||
|
Hardware Reset
|
Yes, built-in RESET button in the pigtail cable.
|
|||||
