4G LTE Dongle Series | LTE Dongle

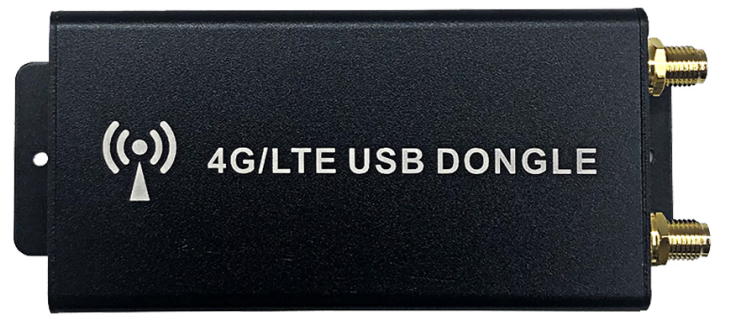

4GDEG25G Series

Introduction

Part Number
Connector
Type-C, Standard SIM Card Slot(Drawer), 2x 4G Antennas
NotesNOTE: Please note this is not a plug-and-play dongle; it requires the installation of the corresponding drivers of module. For more details, please refer to article: Quick Start of LTE Dongle.
The EXVIST 4G LTE Dongle Evaluation Kit is designed to simplify the deployment of Internet of Things (IoT) applications across various sectors, including: Industrial Equipment Networking, Security Applications, Medical Device Networking, Industrial Internet of Things (IIoT), PC Computers, Charging Pile Networking, Raspberry Pi Projects, Vehicle Applications, Industrial Routing Applications.

Key Features

  1. Compatibility: The evaluation kit is fully compatible with Quectel EC25 and EG25-G Mini PCIe Series Modules, making it versatile for different connectivity needs.
  2. Standard SIM Card Socket: The kit includes a standard SIM card socket (drawer), allowing for easy integration and management of mobile network connectivity.
  3. User-Friendly Setup: Designed with user convenience in mind, the kit allows for quick and efficient deployment in various IoT applications.
  4. Robust Performance: Leverage the high-speed connectivity of 4G LTE to ensure reliable data transmission for critical applications.

Applications

Whether you are developing a project related to smart cities, healthcare, or manufacturing, the EXVIST 4G LTE Dongle Evaluation Kit provides the essential tools and connectivity required for real-time data exchange and monitoring.

Operation Band

LTE CAT4
EC25-G Mini PCIe
Region
Global
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/B28
LTE-TDD
B38/B39/B40/B41
WCDMA
B1/B2/B4/B5/B6/B8/B19
GSM/EDGE
B2/B3/B5/B8
GNSS
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (Optional)
Carrier
Europe: Deutsche Telekom
America: Verizon/AT&T/U.S. Cellular
Canada: Telus/Rogers*
Info
🧙TIPS: For more information of EG25-G, please click and download Quectel EG25-G Specification or refer to article Datasheet of EG25-G Series.

Hardware Interfaces

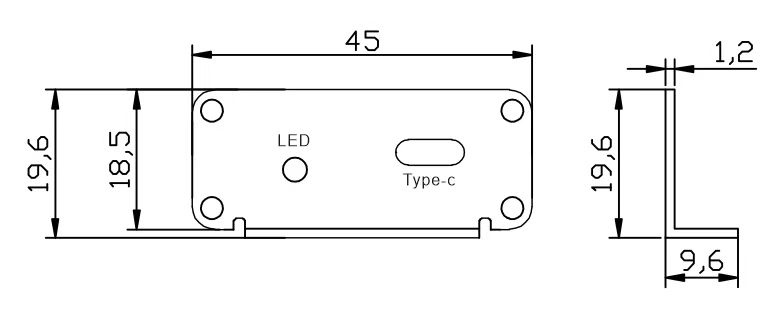

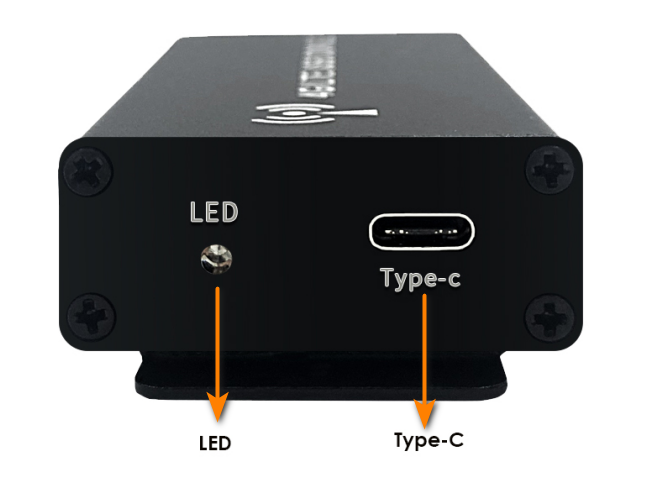

Type-C Interfaces


Notes
NOTE: 1x Type-C to USB-A 2.0 cable (Max. 52cm with Type-C & USB-A connector) will be attached in the gift box.

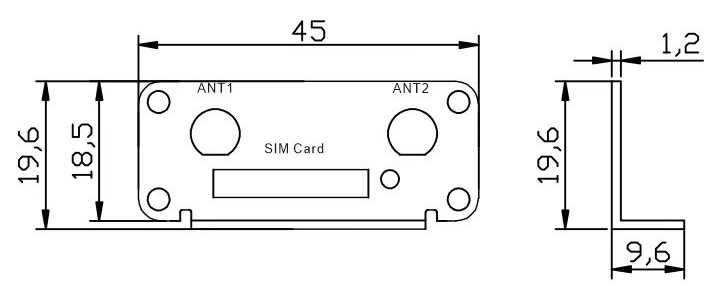

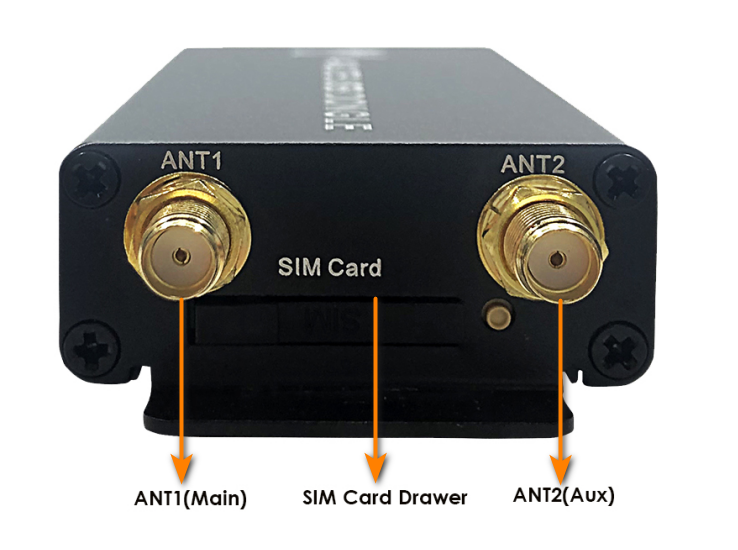

SIM Card & Antennas


Notes
NOTE
  1. Our device uses a standard SIM card slot that requires a push mechanism. It operates at a voltage of 3.3V for TTL and is powered by USB 5V. Please ensure to carefully observe the correct orientation when inserting the SIM card.
  2. If you want to install your own 4G LTE Module (Mini PCIe), it is highly advisable to connect ANT1 to the main IPEX connector on the module and ANT2 to the auxiliary IPEX connector. This configuration will allow the two antennas to cross inside the dongle, helping to minimize interference.

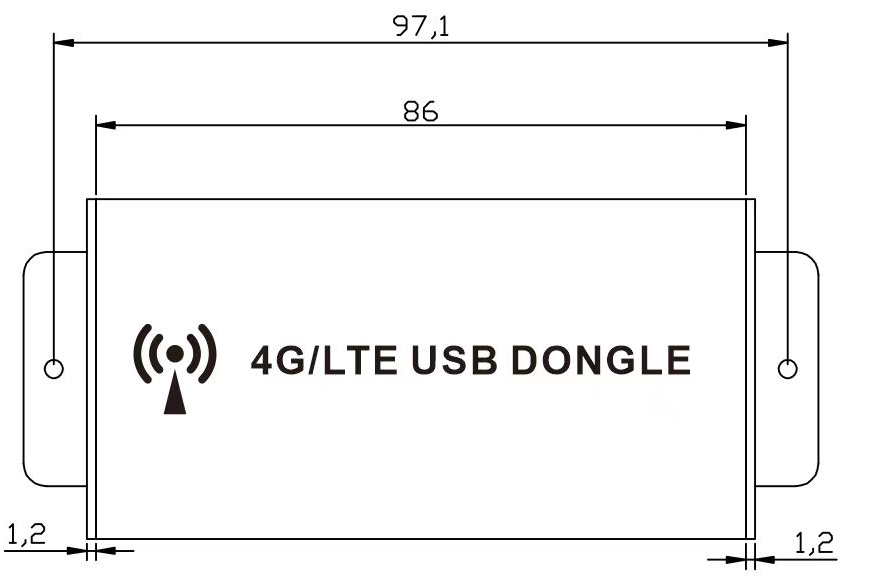

Dimension




Structure

  1. 4G DONGLE Graphic
Info
🧙TIPS: Feel free to click and download the necessary structure if needed.

Installation Guide

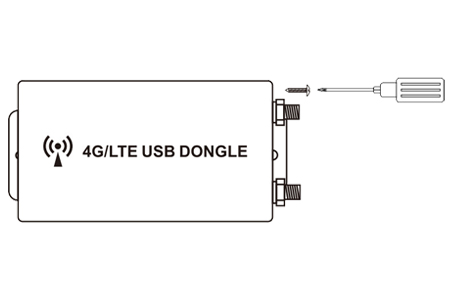

Loosen the screws


Notes
NOTE: just loosen the four screws on the right hand side.

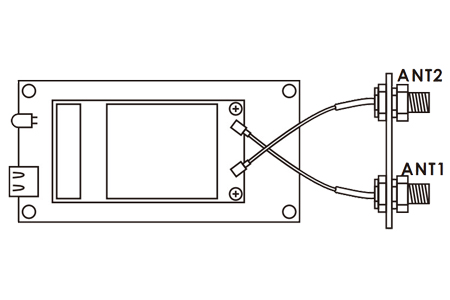

Install the module and antenna

  1. Insert the Mini PCIe LTE module into the designated slot on industrial adapter P2U52V08TC;
  2. Connect ANT1 to the Main IPEX connector on the LTE module;
  3. Connect ANT2 to the Aux IPEX connector.


Notes
NOTE:
Understanding the IPEX Connectors:
  1. Main IPEX Connector (ANT1): Generally provides primary signal reception and transmission.
  2. Auxiliary IPEX Connector (ANT2): Often used for diversity reception or as a secondary antenna to improve signal quality.
Why Cross Antennas?
  1. Reducing Interference: By crossing the two antennas, you help minimize interference caused by multipath propagation, where the same signal arrives at the receiver from different paths, potentially canceling each other out.
  2. Improving Signal Quality: This configuration leverages diversity combining techniques, which can effectively enhance the overall signal quality and reliability of the LTE connection.

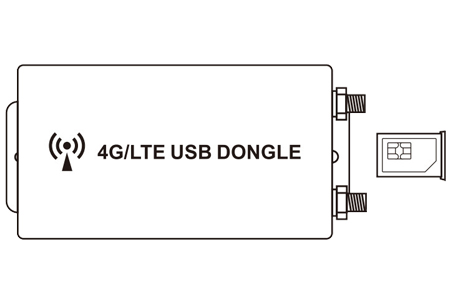

Insert the SIM card

Press the self-ejecting button to release the SIM card holder, and then insert the SIM card in the correct orientation:

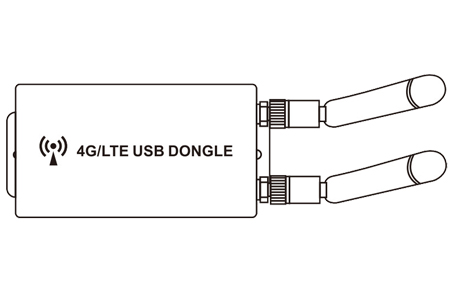

Connect the external antenna



Notes
NOTE:
  1. If possible, position the antennas away from each other to minimize interference.
  2. If your device's design permits, mount the antennas at approximately 90 degrees to each other to enhance reception capabilities.

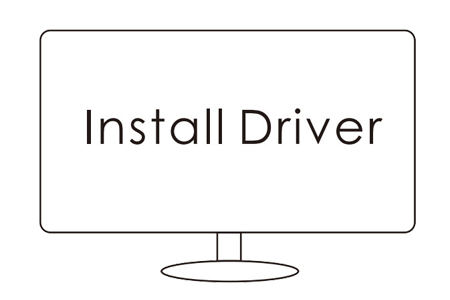

Install the module driver

Notes
NOTE: Download and install the appropriate drivers for the Mini PCIe LTE module on your PC. If you’re using Quectel modules, you can download them from the following article: Download Drivers.

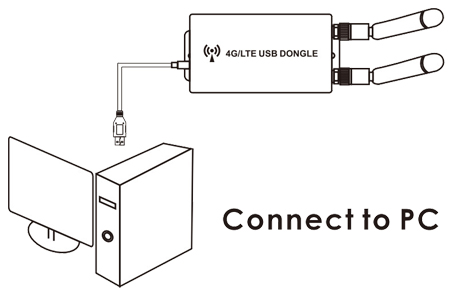

Connect to the PC

Connect the dongle to your PC using the included Type-C to USB 2.0 cable and check if you can connect to the 4G Internet:

Notes
NOTE: If you’re unable to connect to your local 4G Internet, please double-check the following issues:
  1. Have you installed the correct drivers for the 4G module?
  2. Is your SIM card enabled?
  3. If it’s not working, please use the appropriate tools to configure the APN settings accordingly.
