Configuring Video Settings on EXVIST HDMI Encoders

Video of Encoder

Video

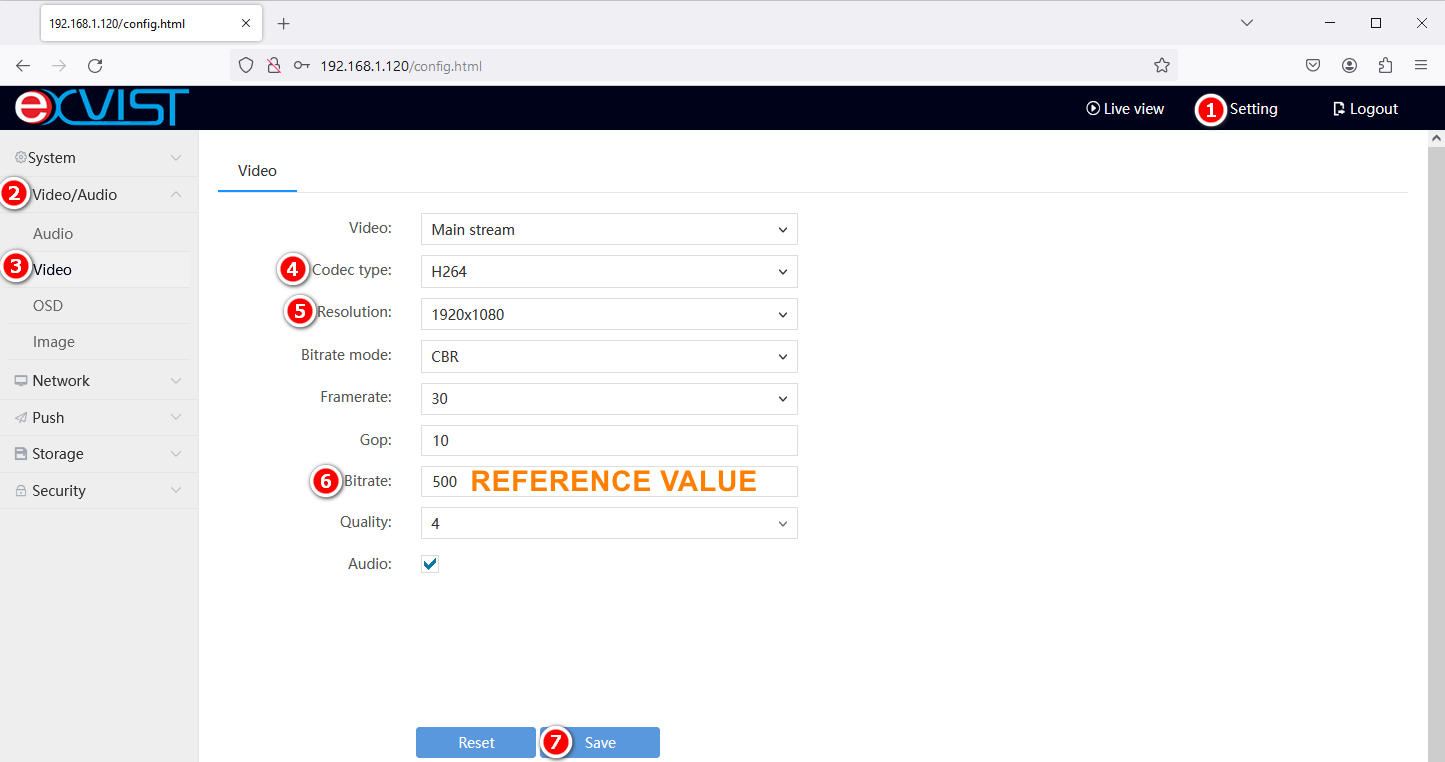

  1. Go to Setting->Video/Audio->Video
Item
Description
Video
Main stream/Sub stream
Codec type
H.264/H.265
Resolution
Up to 1920*1080P(Main Stream)
Bitrate Mode
VBR/CBR
Framerate
Up to 25/30fps or 50/60fps, Determined by System Mode
GOP(Key Interval)
5-200
Bitrate
64-12000Kbit/s
Quality
0-5(VBR available only)
Audio
ON/OFF
Info
🧙TIPS: H.264 is supported for RTMP ONLY while H.264 & H.265 are supported for Preview, RTSP Pull and Push. RTSP Push will be available in the latest firmware released around Dec 2023.

Info
🧙TIPS:
  1. If the system mode is set to 1*1080P@50/60, then it can be set at most 60fps. If not available, please double check whether it's supported for your model.
  2. Lowering the Key Interval (GOP) can improve image quality in certain cases if required.
  3. It's a good practice to set a lower bitrate, such as 500Kbits/s, if your local bandwidth is limited. Lowering the bitrate reduces the amount of data used for streaming video, which can help improve the quality and stability of the stream when network conditions are poor or bandwidth is constrained because too much uploading bandwidth will be occupied.
  4. If it's required to view image directly in ODM(ONVIF Device Manager), it's necessary to disable.
  5. H.264 is supported for Preview/RTMP, and H.265 is supported for both RTSP Pull and Push. For more details, please refer to Preview of Encoder.

Learn more about FAQs of Video

  1. FAQs: Video of Encoder
