FAQs: EXVIST Encoder System Settings Troubleshooting

FAQs: System Settings of Encoder

System Mode

Is it possible to switch the System Mode?

Yes, it is possible to switch the system mode, subject to the following conditions:
  1. Depending on the models and their capabilities, the ability to switch system modes may vary. Some models may support this feature, while others may not.
  2. If the system supports it and you desire to experience 60fps (frames per second), you can switch the system mode by following these steps:
  3. Navigate to Setting: Access the system settings by locating the "Settings" option in the menu of the encoder.
  4. Access System Settings: Within the settings menu, look for the "System Settings" option.
  5. From the dropdown list, choose "System Mode"
  6. Change the setting from 1080P@25/30+D1@25/30 to 1080P@50/60 (1080P Encoder) or 1*2160P@25/30+D1@25/30 to 1*1080P@50/60 (4K Encoder).
  7. After making this change, the system will reboot. Keep in mind that there will only be one main stream available to use after this change.
It's important to note that the ability to switch system modes and the available options may differ based on the specific model and its capabilities. It's also recommended to ensure that the system is capable of supporting the desired mode before making any changes.

How can I stream at 50fps or 60fps using an HDMI encoder?

If it only gives you 25 or 30fps, then it's necessary to switch the system mode to support 50 or 60fps if available. Go to Setting->System Setting->Select "System Mode" from the dropdown list: 2*1080P@25/30+D1@25/30 to 1*1080P@50/60 and reboot the encoder to make it valid:
Notes
NOTES: then main stream ONLY will be available for streaming after switching the system mode. For more information, please refer to FAQs: Streaming at 50fps or 60fps.

What might be the reason for the unsuccessful live video streaming at 50 frames per second after switching the system mode?

Here are some considerations especially when it's a 4K encoder and the objective is to stream at 1080p at 60fps:
  1. Ensure that the input resolution of HDMI is 1920 * 1080P at 60Hz. If not, it's important to verify the refresh rate is set to 60Hz.
  2. Set the frame rate to 60 frames per second for the video stream by navigating to Video/Audio->Video->Framerate.

How can we test the frame rate of the stream

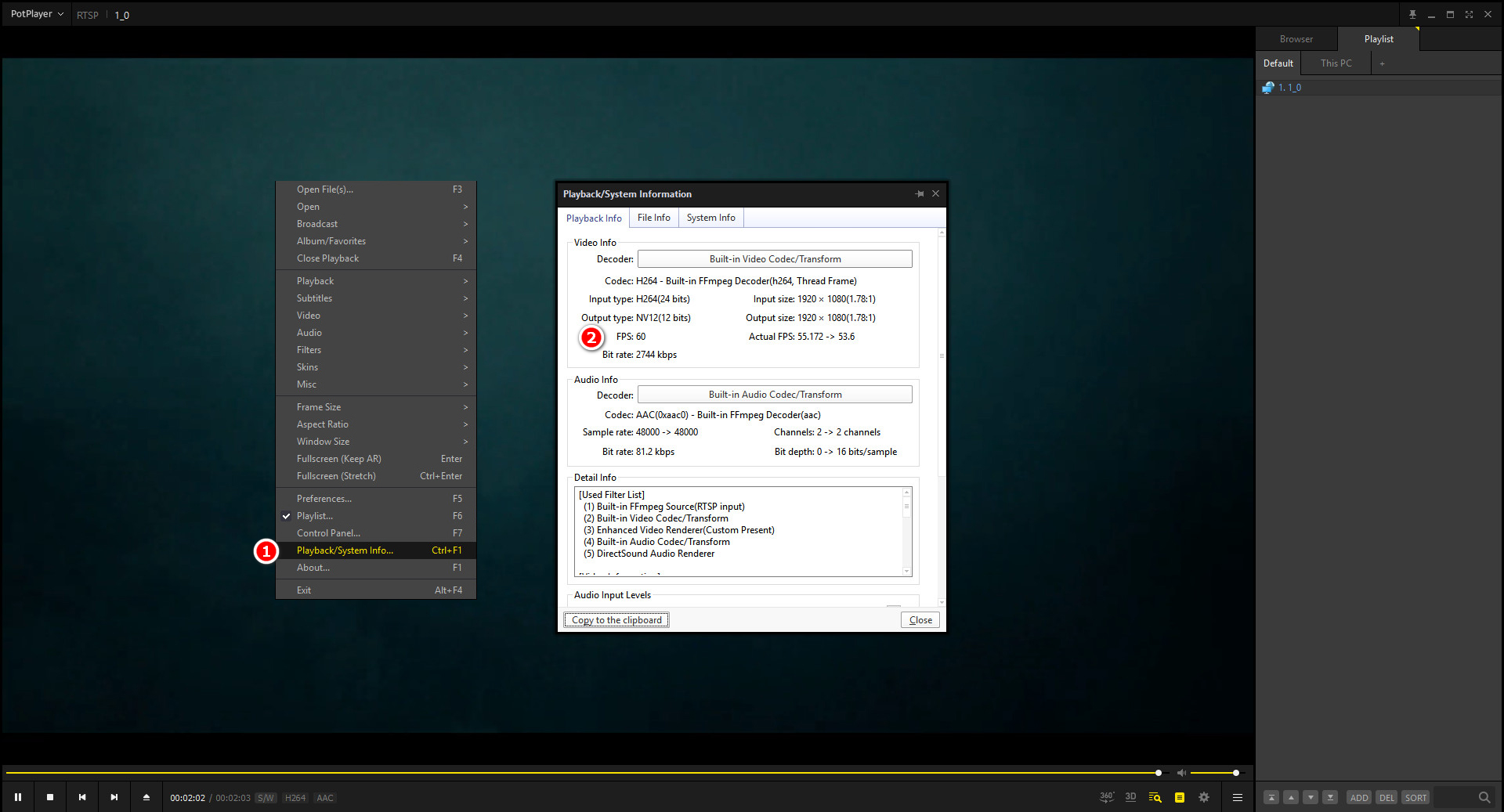

Typically, we recommend playing the RTSP stream using PotPlayer, then right-clicking the mouse and choosing Playback/System Info to view the real frames per second.

Device Name

How can I change the device name for my HDMI encoder?

To change the device name of your HDMI encoder, follow these steps:
  1. Access Settings: Go to the Settings menu on your HDMI encoder.
  2. Navigate to System: Select System, then choose System Settings.
  3. Edit Device Name: Find the Device Name field, enter your desired name.
  4. Save Changes: Click on Save to apply the new name.
After saving, verify that the new device name is displayed correctly.

Boot Logo

Notes
NOTES: The Boot Logo is generally available for the SS52 MS7 Encoder Series.
The Boot Logo refers to the image that is displayed on your monitor when your device is powered on or restarted. This logo is typically shown during the initial startup process and can be customized to reflect your brand, system, or personal preference. It is outputted through the HDMI output connector, providing a visual introduction to the device before the main interface is loaded.
To upload a boot logo, please adhere to the following requirements:
  1. File Format: Only JPG images are accepted.
  2. File Size: The image must be less than 64 KB.
  3. Resolution: The image resolution should be 1024 x 768 pixels.
Make sure your image meets these criteria to ensure successful uploading.

Video Lost Picture

How can I replace the image of video loss?

To replace the image of video loss and customize the display in the system setting, follow these steps:
  1. Navigate to Setting: Access the system settings by locating the "Settings" option in the menu of the encoder.
  2. Access System Settings: Within the settings menu, look for the "System Settings" option. Click on it to access the settings related to the system configurations and display options.
  3. Select "Browse": Look for an option labeled "Browse" within the system settings related to video display or error messages.
  4. Choose Replacement Image: Click on the "Browse" button and select an image from your computer to replace the default image that indicates video loss. This image should be clear and easily understandable to convey the message effectively. And it should be in JPG<128K & 1280*720.
  5. Upload Image: Click on the "Upload" button and it'll reboot automatically to apply the changes.
  6. Verify the Change: Check the updated display to ensure that the replacement image for video loss is now being used after rebooting.
By following these steps, you can customize the image that is displayed when the system encounters video loss, ensuring that the message is clearly conveyed and easily understood by users. If you have access to a specific screenshot or image that you believe would better represent video loss, this option allows you to personalize the display to improve user experience.

Is there any requirement for Replacement Image of Video Loss?

To ensure that the replacement image for video loss meets the specified criteria of being in JPG format, under 128KB in size, and with dimensions of 1280 x 720 pixels, you'll need to follow these additional guidelines when selecting the replacement image:
  1. Image Format: Convert the replacement image to JPG format if it's not already in that format. If needed, use an image editing software or an online image converter to change the format to JPG.
  2. File Size: Check the file size of the replacement image. If it exceeds 128KB, use image compression tools or software to reduce the file size while maintaining reasonable image quality. This will ensure it meets the required limit.
  3. Image Dimensions: Ensure that the dimensions of the replacement image are exactly 1280 x 720 pixels. If the image is larger or smaller than these dimensions, use image editing software to resize it to the specified dimensions.
After confirming that the replacement image complies with the requirements of being in JPG format, under 128KB in size, and with the dimensions of 1280 x 720 pixels, follow the previously mentioned steps to select and apply the image in the system settings. These guidelines will help ensure that the replacement image for video loss is compatible with the system's specifications and provides a clear and effective representation of the video loss message.

Video Output Format

Notes
NOTES: The configuration of HDMI output resolution is generally restricted to the SS52 MS7 Encoder Series.

How can I configure the HDMI output resolution for my streaming encoder?

Configuring the HDMI output resolution for your HDMI encoder is a straightforward process. Please follow the steps below to change the resolution according to your requirements:
  1. Access Settings: Start by navigating to the Settings menu on your HDMI encoder.
  2. Go to System: Once in the settings menu, look for the System option. This section contains various system-related settings, including video configurations.
  3. Select System Settings: Under the System menu, click on System Settings. This will take you to a more detailed configuration area where you can adjust various parameters.
  4. Choose Video Output Format: Find and select the Video Output Format option. This setting allows you to modify the output configurations for video signals sent via HDMI.
  5. Scroll to Desired Resolution: In the Video Output Format menu, you will see a list of available resolutions. Scroll down to find the resolution that best fits your display and preferences (e.g., 720p, 1080p, 4K).
  6. Save Changes: After selecting your preferred resolution, be sure to save the changes. There should be an option to confirm or apply your settings. This step is crucial for the new resolution to take effect.
  7. Verify the Output: Once you have saved the settings, it's a good idea to connect your codec to your HDMI display and verify that the output resolution is set correctly. You should see the new resolution reflected on the screen.
If you encounter any issues while adjusting the HDMI output resolution or if you need further assistance, please feel free to contact our support team for help!

Why is the default HDMI output resolution set to 1920x1080P@60Hz on my 4K encoder?

If the default HDMI output resolution is 4K (3840x2160), there might be issues displaying it correctly on most monitors. This is because the default display resolution for most monitors is 1920x1080. Monitors that do not support resolutions higher than 1080p may not be able to show content properly, potentially causing distortion or loss of clarity.

However, if you wish to display 4K (3840x2160) content, you can adjust the output resolution by navigating to System Settings and selecting Video Output Format. This change allows the codec to output 4K resolution, ensuring that the video displays correctly on monitors that support higher resolutions. It's important to make sure that your monitor can handle 4K resolution to view the content without any issues.

Learn more about System Settings of Encoder
