FAQs: Preview | HDMI Encoder

FAQs: Preview of Encoder

How can I address the issue of "Black Screen"?

To address the issue of black screen when trying to preview live video in browsers due to the lack of support for H.265 in Flash, you can consider the following options:
  1. Use Alternative Video Players: Instead of relying on Flash, consider using alternative video players that support H.265 encoding. There are many modern video players like VLC, PotPlayer and streaming platforms that are compatible with H.265 and can display the video content without issues.
  2. Switch to H.264 format: If possible, consider switching video encoding to H.264 format, which is supported by Flash. To make it, go to Setting->Video/Audio->Video->Change Codec type from H.265 to H.264.
It's important to note that the best approach will depend on your specific use case and technical requirements. Consider consulting with a web developer or video encoding specialist for the most suitable solution.

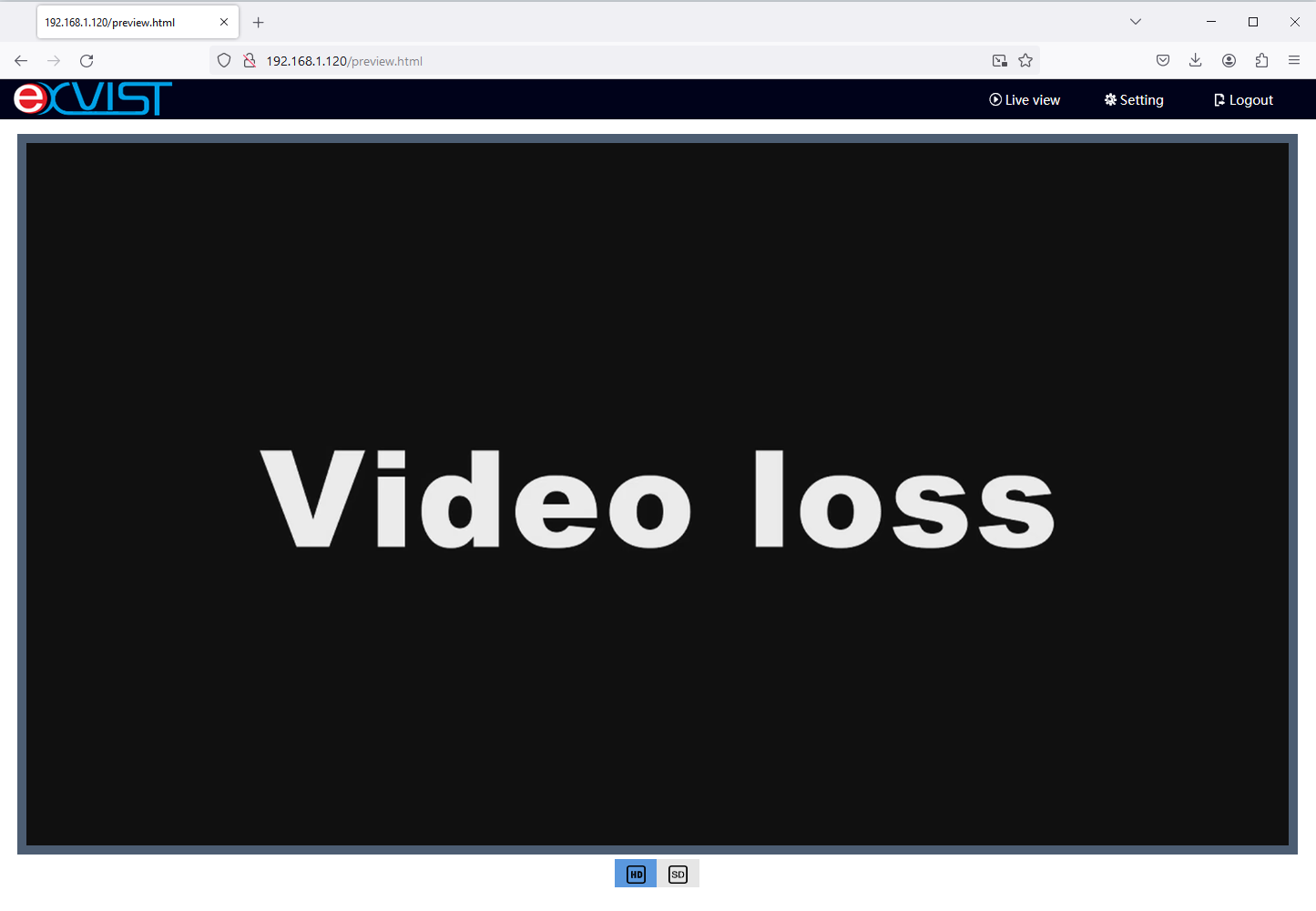

How can I address the issue of "Video Loss"?

The "Video Loss" message typically appears when the encoder is unable to detect any video input from the connected source especially when it's showing 1920x1080@30HZ in the page of system status. The recommended troubleshooting steps provided are aimed at resolving this issue. Here's an explanation of why "Video Loss" occurs and the steps to address it:
  1. No Video Source Detection: The "Video Loss" message indicates that the encoder was unable to detect any video input, resulting in a blank or black screen in the output. This can occur due to issues such as a loose cable connection, signal interference, or malfunctioning video source.
  2. Troubleshooting Steps:
  3. a. Power Off the Encoder: Turning off the encoder can help reset its internal settings and potentially resolve any temporary issues.
  4. b. Clean HDMI Connectors: Dust, debris, or oxidation on the HDMI connectors can hinder proper signal transmission. Cleaning the connectors with industrial alcohol can help ensure a clean and reliable connection.
  5. c. Re-plug the HDMI Cable: Reconnecting the HDMI cable after cleaning the connectors can help establish a secure and stable connection between the video source and the encoder.
  6. d. Power On the Encoder: Once the HDMI cable is reconnected, powering on the encoder can allow it to detect the video source and establish a proper signal connection.
  7. e. Verify Video Source Detection: After performing the above steps, check if the encoder successfully detects the video source and displays the correct resolution and frame rate settings.
By following these steps, you can troubleshoot the "Video Loss" issue and potentially restore the video input detection on the encoder. If the problem persists, further technical support or professional assistance may be required to diagnose and address the underlying cause of the issue. Or maybe it's related to EDID.

How can I preview video in H.265?

To preview videos encoded in H.265 format, you can use alternative video players that support this encoding. Here are some options to consider:
  1. VLC Media Player: VLC is a popular open-source media player that supports a wide range of video codecs, including H.265. It is available for various platforms such as Windows, macOS, and Linux, making it a versatile choice for viewing H.265 encoded videos.
  2. PotPlayer: PotPlayer is another feature-rich media player that can handle H.265 video playback smoothly. It offers a customizable interface and supports various video formats, making it a good choice for H.265 content.
  3. MPC-HC (Media Player Classic - Home Cinema): This lightweight media player has built-in support for H.265 playback and is known for its simplicity and efficiency.
  4. MPV: MPV is a powerful, command-line-based media player that supports a wide range of video codecs and formats, including H.265. It is favored for its high-quality playback and customization options.
By utilizing these alternative video players and platforms, you can effectively preview videos encoded in H.265 without relying on Flash or encountering compatibility issues. Additionally, always ensure that your hardware and software meet the system requirements for H.265 video playback to ensure an optimal viewing experience.

How can I replace the image of video loss?

To replace the image of video loss and customize the display in the system setting, follow these steps:
  1. Navigate to Setting: Access the system settings by locating the "Settings" option in the menu of the encoder.
  2. Access System Settings: Within the settings menu, look for the "System Settings" option. Click on it to access the settings related to the system configurations and display options.
  3. Select "Browse": Look for an option labeled "Browse" within the system settings related to video display or error messages.
  4. Choose Replacement Image: Click on the "Browse" button and select an image from your computer to replace the default image that indicates video loss. This image should be clear and easily understandable to convey the message effectively. And it should be in JPG<128K & 1280*720.
  5. Upload Image: Click on the "Upload" button and it'll reboot automatically to apply the changes.
  6. Verify the Change: Check the updated display to ensure that the replacement image for video loss is now being used after rebooting.
By following these steps, you can customize the image that is displayed when the system encounters video loss, ensuring that the message is clearly conveyed and easily understood by users. If you have access to a specific screenshot or image that you believe would better represent video loss, this option allows you to personalize the display to improve user experience.

Is there any requirement for Replacement Image of Video Loss?

To ensure that the replacement image for video loss meets the specified criteria of being in JPG format, under 128KB in size, and with dimensions of 1280 x 720 pixels, you'll need to follow these additional guidelines when selecting the replacement image:
  1. Image Format: Convert the replacement image to JPG format if it's not already in that format. If needed, use an image editing software or an online image converter to change the format to JPG.
  2. File Size: Check the file size of the replacement image. If it exceeds 128KB, use image compression tools or software to reduce the file size while maintaining reasonable image quality. This will ensure it meets the required limit.
  3. Image Dimensions: Ensure that the dimensions of the replacement image are exactly 1280 x 720 pixels. If the image is larger or smaller than these dimensions, use image editing software to resize it to the specified dimensions.
After confirming that the replacement image complies with the requirements of being in JPG format, under 128KB in size, and with the dimensions of 1280 x 720 pixels, follow the previously mentioned steps to select and apply the image in the system settings. These guidelines will help ensure that the replacement image for video loss is compatible with the system's specifications and provides a clear and effective representation of the video loss message.
