System Info of Codec

System Info

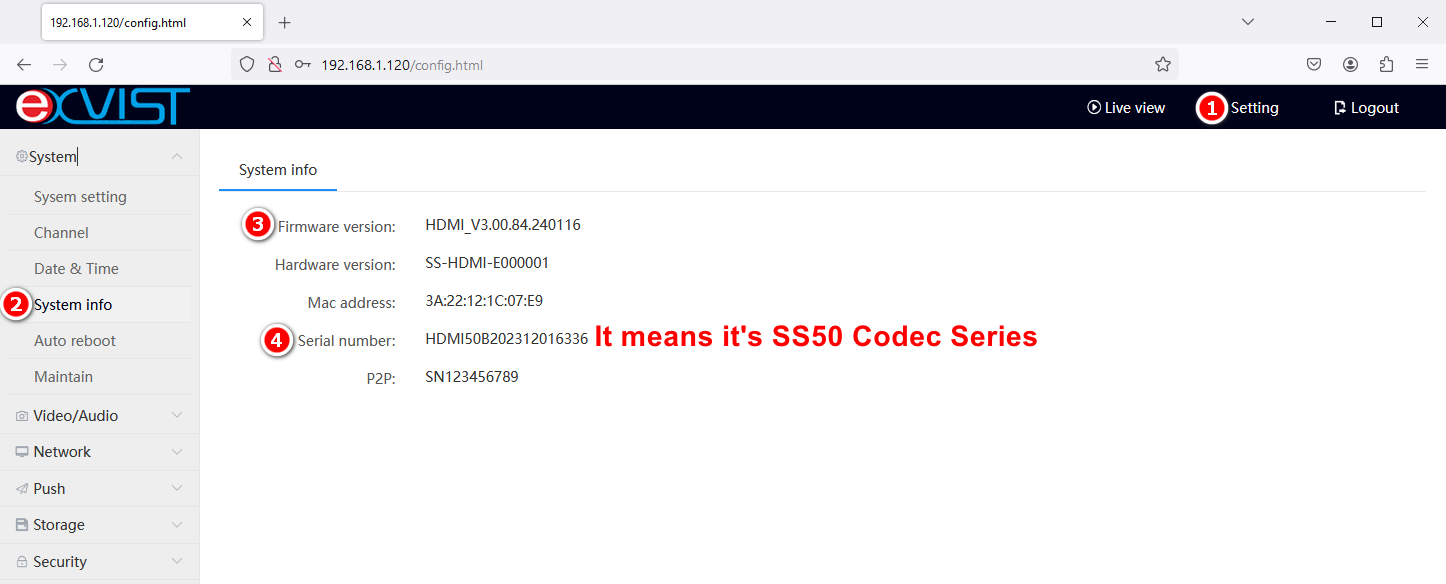

  1. Go to Setting->System->System Info
Item
Description
Firmware version
Current firmware version and date of release which you can tell from the version number.
Hardware version
Current hardware version
Mac address
Unique Mac address
Serial number
The serial number of this unit
P2P
The P2P number

Notes
NOTE: The version number "HDMI_V3.00.52.220921" can be interpreted as indicating that the firmware version was released on September 21st, 2022.
  1. "V3.00.52" indicates the major, minor, and patch version numbers of the firmware.
  2. "220921" represents the release date, with "22" for the year 2022, "09" for the month of September, and "21" for the 21st day of the month.

Learn more about FAQs of System Info

  1. FAQs: System Info of Codec
