Datasheet of ZSC8PSH16F
Overview

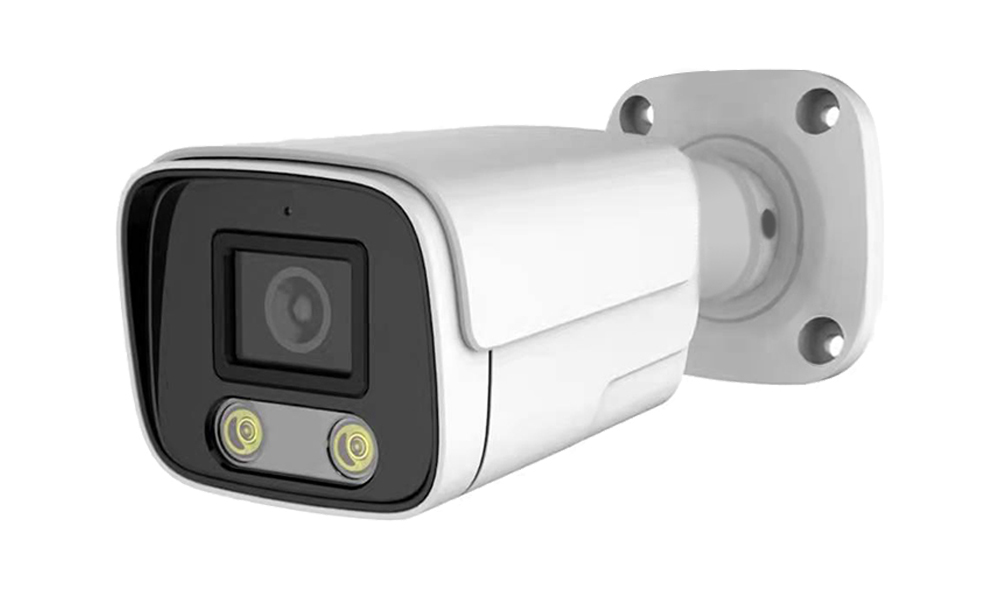

4K UltraHD Smart IR PoE Bullet IP Security Camera – Hikvision Compatible
Capture every detail with this 4K UltraHD 8MP Smart IR Security Camera, designed for unmatched clarity and performance. Perfect for both indoor and outdoor use, it features a 2.8mm lens for a wide field of view and offers optional lens sizes of 3.6mm, 6mm, and 8mm for customized coverage.
Key features include:
- Hikvision Compatibility: Seamlessly integrates with Hikvision systems for effortless setup.
- PoE Convenience: Power over Ethernet (PoE) simplifies installation with a single cable for power and data.
- Smart IR Night Vision: Delivers clear footage even in low-light conditions.
- Streaming Ready: Supports RTMP for direct streaming to platforms like YouTube and Facebook.
- Weatherproof Design: Built with an IP66 rating to withstand challenging weather conditions.
Ideal for professional-grade security, this camera offers versatile lens options and cutting-edge features to meet your surveillance needs.
Specification
| Part Number | ZSC8PSH16F |
| Basics |
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
|
|
Model: ZSC8PSH16F(
Smart IR
)
|
|
|
Sensor: 1/2.8" Progressive Scan CMOS Sensor
|
|
|
Lens: 2.8mm(
BY DEFAULT
)/3.6mm/6mm/8mm (Pls remark if other lens are required)
|
|
|
WDR: 80dB
|
|
|
Electric Shutter: Adaptive, 1/2s-1/1,000s
|
|
|
Video/Audio Encoding
|
Video Encoding: H.265/H.264
|
|
Audio Encoding: AAC/G.711A/G.711U; Sampling: up to 16K
|
|
|
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 256kbps~8Mbps(Configurable)
|
|
|
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable); Max.
4K@15FPS
|
|
|
Main Stream: 3840*2160, 3072*2048, 2592*1944, 2592*1520, 2304*1296, 1920*1080, 1280*720
|
|
|
Sub Stream: 704*576, 640*360, 640*480, 352*288
|
|
|
Video Stream
|
RTSP (Main Stream): rtsp://192.168.1.120:554/live/1_0
|
|
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1_1
|
|
|
Protocols
|
Network: IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
|
|
Media: CGI, RTSP, RTMP, Compatible with ONVIF, HTTP, SIP, 802.1x
|
|
|
Wireless: Not Available by Default
|
|
|
Interface
|
Network Port: 1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
Audio: Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port
|
|
|
Power: 1ch DC12V Power Input
|
|
|
Reset: 1ch Reset(Press it for more than 5 seconds to reset)
|
|
|
Others
|
Operating Temperature: -30°C~60°C (-22°F~140°F)
|
|
Operating Humidity: ≤95%(Non-Condensing)
|
|
|
Power Supply: Powered by Standard PoE Switch or DC12V 1A or Higher
|
|
|
Power Consumption: ≤5W
|
|
|
Unit Dimension: 18.5cm x 7.7cm x 7cm[7.28in x 3.03in x 2.76in]
|
|
|
Package Dimension: 19.5cm x 10.5cm x 10cm[7.68in x 4.13in x 3.94in]
|
|
|
Net Weight: 397g [0.88lb, 14.00oz]
|
|
|
Net Weight: 397g [0.88lb, 14.00oz]
|
