Datasheet of ZSD3PSH16F
Overview

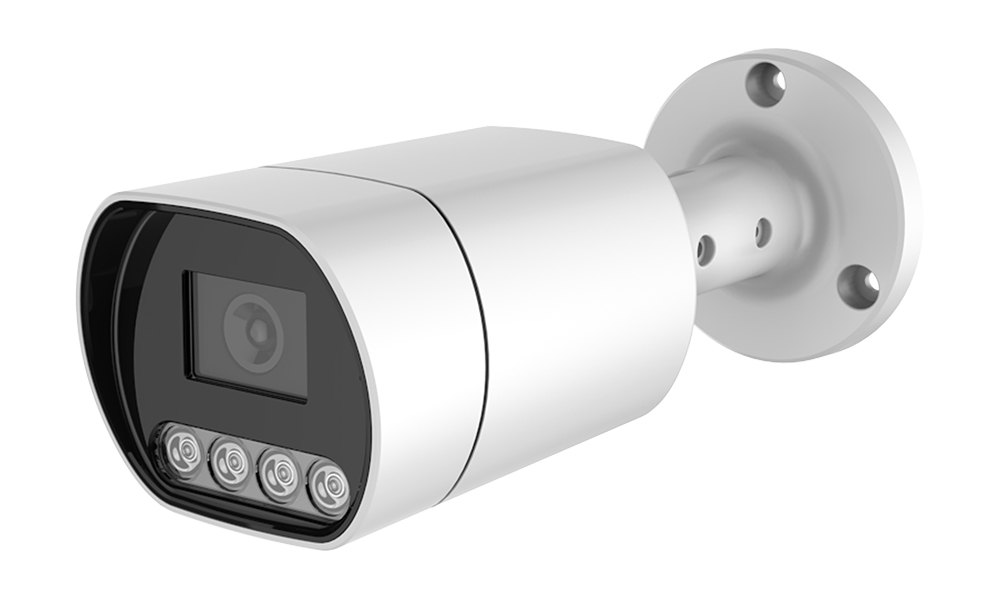

3MP PoE Dual Light Bullet IP Camera with RTMP Streaming
The EXVIST 3MP PoE Bullet Camera is engineered for content creators and security professionals who demand reliability and high performance. This camera delivers crisp 3MP video and features innovative Dual Light illumination (IR + Warm Light) for superior image quality in any lighting condition. With built-in audio and native support for RTMP/RTSP protocols, it streams directly to platforms like YouTube and Facebook, while its ONVIF and Hikvision compatibility ensures seamless integration into existing security systems. Powered by a single PoE cable for easy installation, it's the all-in-one solution for indoor and outdoor streaming and surveillance.
Key Advantages
- Crystal-Clear 3MP Resolution: Capture detailed video at 2304x1296 resolution, providing a sharper image than standard 1080p for both live streaming and security monitoring.
- Advanced Dual Light Night Vision: Intelligent illumination system activates IR LEDs for general night vision and switches to warm white light upon human detection for full-color footage, acting as a visual deterrent.
- Direct RTMP/RTSP Live Streaming: Stream video and audio directly to popular social media platforms (YouTube, Facebook) and third-party software (OBS, VLC) without the need for a separate encoder.
- PoE for Simplified Installation: Power over Ethernet (IEEE 802.3af) allows for transmission of both power and data through a single cable, reducing wiring complexity and enabling flexible mounting.
- Robust Weatherproof Design: Rated IP66, the camera is fully protected against dust and heavy rain, ensuring reliable operation in harsh outdoor environments.
Technical Specifications
Imaging Performance
|
Item
|
Description |
|
Image Sensor
|
1/2.8" Progressive Scan CMOS
|
|
Max. Resolution
|
3MP (2304 x 1296)
|
|
Lens Options
|
2.8mm / 3.6mm / 6mm / 8mm (Optional)
|
|
Dual Light Mode
|
IR Mode: B/W night vision
Warm Light Mode: Full-color night vision on human detection
|
|
Wide Dynamic Range (WDR)
|
Digital WDR (80dB) for high-contrast scenes
|
|
Digital Noise Reduction (DNR)
|
3D DNR for cleaner low-light video
|
|
Min. Illumination
|
0 Lux (with IR LED on)
|
|
Electric Shutter
|
Adaptive, 1/2s-1/1,000s
|
Video & Audio
|
Item
|
Description |
|
Video Compression
|
H.265 / H.264 (Dual-stream)
|
|
Max. Frame Rate
|
30fps@3MP (2304x1296)
|
|
Main Stream Resolutions
|
2304x1296, 1920x1080, 1280x960, 1280x720
|
|
Sub Stream Resolutions
|
704x576 (D1), 640x480, 640x360, 352x288
|
|
Bit Rate
|
Configurable, 256 Kbps ~ 8 Mbps (CBR/VBR)
|
|
Audio Compression
|
AAC / G.711U / G.711A
|
|
Audio Input
|
Built-in Mic (Default) or External 3.5mm Line-in
|
Streaming & Connectivity
|
Item
|
Description |
|
Key Streaming Protocols
|
RTMP (Direct to YouTube), RTSP (for VLC/OBS), ONVIF
|
|
Concurrent Streams
|
6x Independent RTSP Streams
|
|
RTSP Stream URLs
|
rtsp://192.168.1.120:554/live/1_0
rtsp://192.168.1.120:554/live/1_1
|
|
Network Interface
|
1x RJ45 10/100 Mbps Ethernet (PoE)
|
|
Compatibility
|
ONVIF Profile S, Hikvision Protocol
|
General
|
Item
|
Description |
|
Power Supply
|
PoE (IEEE 802.3af) or DC 12V ±10%
|
|
Power Consumption
|
≤ 5W (Max.)
|
|
Weatherproof Rating
|
IP66 (Dustproof & Heavy Rain Resistance)
|
|
Operating Temperature
|
-30°C ~ +60°C (-22°F ~ +140°F)
|
|
Operating Humidity
|
0% ~ 95% (Non-condensing)
|
|
Default IP Address
|
192.168.1.120
|
|
Default Login
|
Username: admin / Password: 12345
|
|
Reset Method
|
Hardware Reset Button (on pigtail cable)
|
Physical Specifications
|
Item
|
Description |
|
Unit Dimensions (L x Ø)
|
185 x 77 x 70 mm (7.28" x 3.03" x 2.76")
|
|
Unit Weight
|
397 g (0.88 lb)
|
|
Package Dimensions
|
195 x 105 x 100 mm (7.68" x 4.13" x 3.94")
|
|
Gross Weight
|
480 g (1.06 lb)
|
