How to Configure RTMP for Live Streaming on EXVIST IP Cameras

RTMP of IP Camera

RTMP

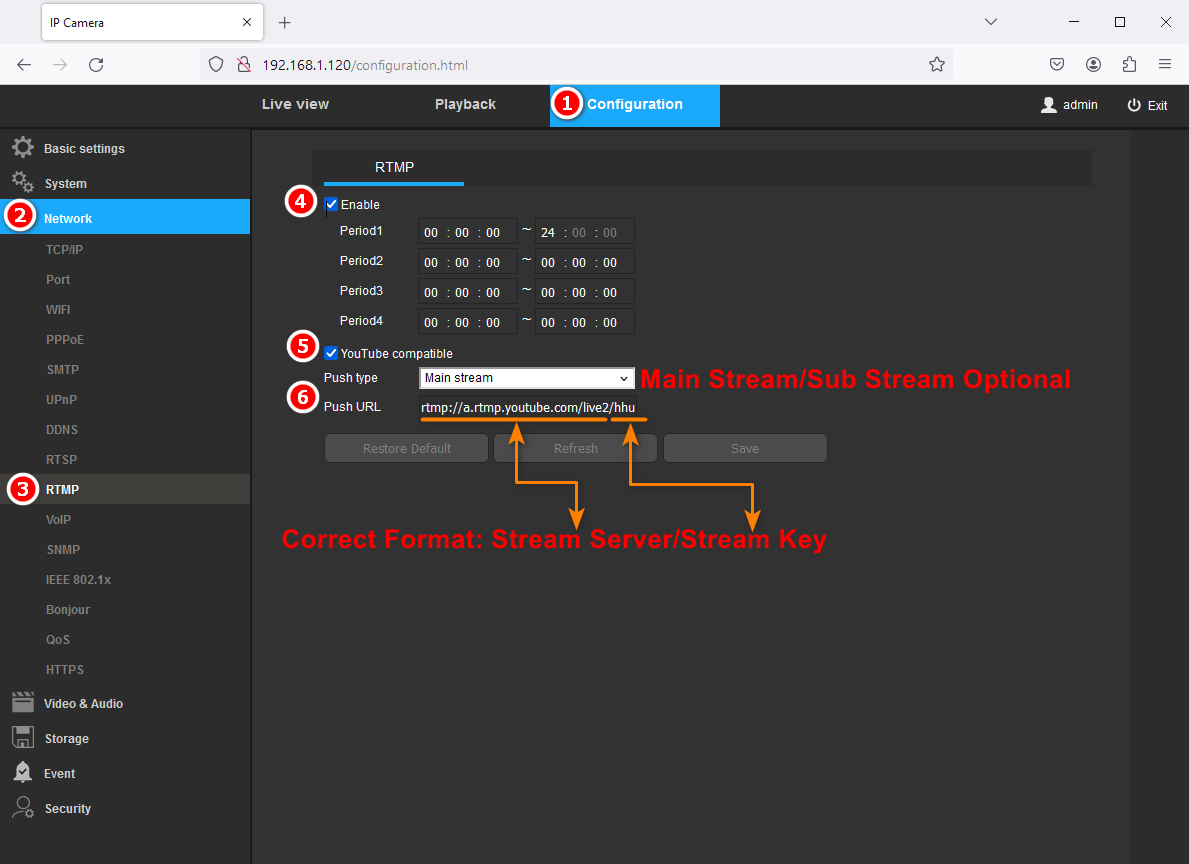

  1. Go to Configuration->Network->RTMP
RTMP stands for Real Time Messaging Protocol. This technology is used for media live streaming communication between the stream server and cameras. The user can use RTMP to ask the camera to push the video and audio to the specified RTMP servers, thus the camera’s media can be live play in the servers. As an example there are some famous broadcasting public RTMP servers like YOUTUBE, Wowza Live Streaming etc.

Explanation

  1. Enable: This dropdown box allows the user to enable RTMP functionality.
  2. Periods: This fields allow the user to set the schedule of the RTMP live stream.
  3. Push type: This dropdown box allows the user to select the stream type.
  4. Push URL: This field allows the user to fill out the RTMP server address.
  5. Restore Default: Restore the values to default setting.
  6. Refresh: Refresh the display of the settings’ value.
  7. Save: Save the settings.

Video Tutorial
