Datasheet of ON-PFS-16G2F
Overview
High-Density 16-Port PoE Switch with Fiber Uplink for Demanding Networks

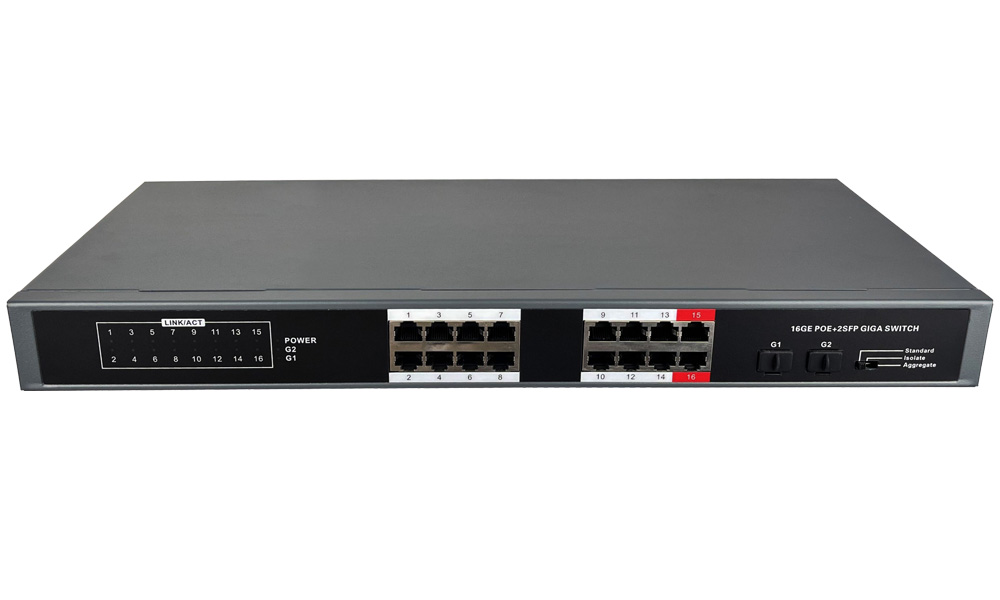

The ON-PFS-16G2F is a high-performance non-managed Gigabit PoE fiber switch designed to deliver both data connectivity and power to multiple network devices through a single Ethernet cable. Featuring 16 PoE-capable Gigabit Ethernet ports and 2 Gigabit SFP fiber slots, this switch provides exceptional connectivity options for medium to large network environments. With support for IEEE 802.3af/at standards and up to 30W per port, it can simultaneously power a comprehensive range of PoE devices including wireless access points, IP cameras, VoIP phones, and smart building systems. The plug-and-play design requires no configuration, making it an ideal solution for hotels, campuses, retail stores, and enterprises seeking to build robust, high-performance networks with fiber backbone connectivity.
Key Advantages
- High-Density PoE Power: 16 PoE ports supporting IEEE 802.3af/at standards with up to 30W per port, providing ample power for multiple devices simultaneously
- Fiber Optic Connectivity: 2 Gigabit SFP slots enable long-distance network connections and integration with fiber backbone networks
- Advanced DIP Switch Functions: Three-position DIP switch offers VLAN, port isolation, and link aggregation capabilities for enhanced network management
- Plug-and-Play Operation: Non-managed design requires no configuration, making deployment simple and straightforward
- High-Capacity Backplane: 36Gbps switching fabric ensures non-blocking performance across all ports
- Robust Construction: IP30-rated metal housing ensures durability and reliability in demanding conditions
DIP Switch Function Description (Three Positions)
- Standard: All ports belong to the same VLAN, meaning all ports can communicate with each other.
- Isolate: Except for the Uplink ports (ports 15 and 16) and the two fiber ports G1 and G2, all other ports belong to the same port isolation group. This means the Uplink ports can communicate with other ports, but communication between other ports is restricted.
- Aggregate: Enables the link aggregation function for the two Uplink ports (ports 15 and 16) and the two fiber ports G1 and G2. That is, ports 15 and 16, as well as fiber ports G1 and G2, are added to an aggregation group to increase link bandwidth and improve link reliability.
Technical Specifications
Technology
|
Item
|
Description
|
|
Standards
|
IEEE 802.3 10Tx Ethernet
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000Tx Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet
|
|
Processing Type
|
Store and Forward
|
|
Flow Control
|
IEEE 802.3x back pressure flow control
|
Switch Properties
|
Item
|
Description
|
|
Switch Architecture
|
Back-Plane (Switching Fabric): 36.0Gbps
|
|
Packet Forwarding Rate
|
26.784 Mpps
|
|
Packet Buffer
|
4.1Mbits
|
|
MAC Table Size
|
8K
|
Port Interface
|
Item
|
Description
|
|
Ethernet Port
|
16*10/100/1000Tx (PSE: 30W/Port), Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
|
|
SFP Port
|
2x SFP slots
|
Mechanical Characteristics
|
Item
|
Description
|
|
Housing Metal
|
IP30 protection
|
|
Unit Weight
|
2.7kg (5.95 lbs, 95.24 oz)
|
|
Shipping Weight
|
3.2kg (7.05 lbs, 112.88 oz)
|
|
Unit Dimensions
|
440 × 210 × 44 mm (17.32 × 8.27 × 1.73 in)
|
|
Package Dimensions
|
510 × 300 × 90 mm (20.8 × 11.81 × 3.54 in)
|
|
Mounting Options
|
DIN-rail mounting(Excluded), Wall mounting(Excluded)
|
Power Requirement
|
Item
|
Description
|
|
Rated Input Voltage
|
100Vac~240Vac/47Hz~63Hz
|
|
Input Voltage Range
|
90Vac~264Vac
|
|
Fuse Current
|
6.3A/250V, 10A/250V
|
|
System Power Consumption
|
<5.5W(Idle)
|
|
System Power Consumption
|
<280W(Full Load)
|
|
Power Pinout
|
Pairs 1/2/4/5 (+), Pairs 3/6/7/8 (-)
|
|
Max PoE Power Budget
|
260W
|
|
PoE Power Output
|
30W max. per PoE port
|
Environmental Specifications
|
Item
|
Description
|
|
Operating Temperature
|
-10°C to 50°C (14°F to 122°F)
|
|
Storage Temperature
|
-10°C to 50°C (14°F to 122°F)
|
|
Operating Humidity
|
10% to 95% RH (non-condensing)
|
Power Status Indicator
|
Item
|
Description
|
|
Illuminated Green (Steady)
|
Indicates that the switch has passed all internal power-on self-tests and is functioning correctly.
|
|
Off
|
Indicates a lack of power input or a critical fault in the power supply unit.
|
SFP Port Status Indicator Light
|
Item
|
Description
|
|
Steady Green Illumination
|
Indicates that the link is successfully established at the physical layer.
|
|
Blinking Green
|
Indicates that the port is actively processing (receiving or transmitting) data packets.
|
|
No Illumination
|
Indicates that no link is detected. The SFP module may be absent, faulty, or the cable may be disconnected.
|
Ethernet Port Status Indicator (10/100/1000BASE-T)
|
Item
|
Description
|
|
Steady Green
|
Indicates a successful physical layer connection (Link Up) at the negotiated speed (10, 100, or 1000 Mbps).
|
|
Flashing Green
|
Indicates active data transmission or reception on this port.
|
|
Off
|
Indicates that no link is established. The cable may be unplugged, the connected device may be off, or there may be a fault.
|
