Datasheet of ON-PFS-10G2F
Overview
High-Density PoE Power with Fiber Backbone Connectivity

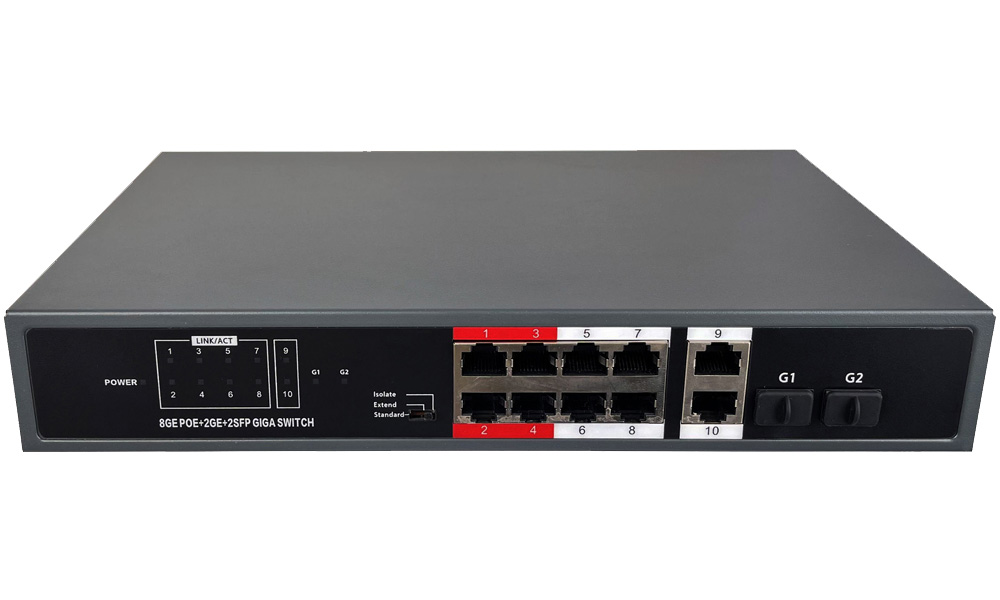

The ON-PFS-10G2F is a non-managed Gigabit PoE fiber switch designed to deliver both data connectivity and power to network devices through a single Ethernet cable. Featuring 8 PoE-capable Gigabit Ethernet ports and 2 Gigabit SFP fiber slots, this switch provides flexible connectivity options for various network environments. With support for IEEE 802.3af/at standards and up to 30W per port, it can power a range of PoE devices including wireless access points, IP cameras, VoIP phones, and smart building systems. The plug-and-play design requires no configuration, making it an ideal solution for hotels, campuses, retail stores, and small-to-medium enterprises seeking to build cost-effective, high-performance networks.
Key Advantages
- High-Density PoE Power: 8 PoE ports supporting IEEE 802.3af/at standards with up to 30W per port, providing ample power for multiple devices simultaneously
- Fiber Optic Connectivity: 2 Gigabit SFP slots enable long-distance network connections and integration with fiber backbone networks
- Plug-and-Play Operation: Non-managed design requires no configuration, making deployment simple and straightforward
- Flexible Deployment Options: Supports both DIN-rail and wall mounting for versatile installation in various environments
- Robust Construction: IP30-rated metal housing ensures durability and reliability in demanding conditions
- Smart PoE Management: Automatic detection and power delivery to compliant PD devices, preventing damage to non-PoE equipment
DIP Switch Function Description (Three Positions)
- Standard: All ports belong to the same VLAN, meaning all ports can communicate with each other.
- Extend: Enables 250-meter long-distance PoE mode for Ports 1~8; network speed drops to 10 Mbps.
- Isolate: Ports 1~4 belong to the same isolation group. Ports within this group cannot communicate with each other, but they can communicate with ports outside the group (Ports 5~8).
Technical Specifications
Technology
|
Item
|
Description
|
|
Standards
|
IEEE 802.3 10Tx Ethernet
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000Tx Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet
|
|
Processing Type
|
Store and Forward
|
|
Flow Control
|
IEEE 802.3x back pressure flow control
|
Switch Properties
|
Item
|
Description
|
|
Switch Architecture
|
Back-Plane (Switching Fabric): 24.0Gbps
|
|
Packet Forwarding Rate
|
17.856 Mpps
|
|
Packet Buffer
|
4.1Mbits
|
|
Jumbo Frame
|
9.2 Kbytes
|
|
MAC Table Size
|
8K
|
Port Interface
|
Item
|
Description
|
|
Ethernet Port
|
10*10/100/1000Tx (PSE: 30W/Port), Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
|
|
SFP Port
|
2x SFP slots
|
Mechanical Characteristics
|
Item
|
Description
|
|
Housing Metal
|
IP30 protection
|
|
Unit Weight
|
1.5kg (3.31 lbs, 52.91 oz)
|
|
Shipping Weight
|
1.9kg (4.19 lbs, 67.02 oz)
|
|
Unit Dimensions
|
270 × 181 × 44 mm (10.63 × 7.13 × 1.73 in)
|
|
Package Dimensions
|
340 × 300 × 90 mm (13.39 × 11.81 × 3.54 in)
|
|
Mounting Options
|
DIN-rail mounting(Excluded), Wall mounting(Excluded)
|
Power Requirement
|
Item
|
Description
|
|
Rated Input Voltage
|
100Vac~240Vac/47Hz~63Hz
|
|
Input Voltage Range
|
90Vac~264Vac
|
|
Fuse Current
|
5A/250V
|
|
System Power Consumption
|
<3W(Idle)
|
|
System Power Consumption
|
<150W(Full Load)
|
|
Power Pinout
|
Pairs 1/2/4/5 (+), Pairs 3/6/7/8 (-)
|
|
Max PoE Power Budget
|
135W
|
|
PoE Power Output
|
30W max. per PoE port
|
Environmental Specifications
|
Item
|
Description
|
|
Operating Temperature
|
-10°C to 50°C (14°F to 122°F)
|
|
Storage Temperature
|
-10°C to 50°C (14°F to 122°F)
|
|
Operating Humidity
|
10% to 95% RH (non-condensing)
|
Power Status Indicator
|
Item
|
Description
|
|
Illuminated Green (Steady)
|
Indicates that the switch has passed all internal power-on self-tests and is functioning correctly.
|
|
Off
|
Indicates a lack of power input or a critical fault in the power supply unit.
|
SFP Port Status Indicator Light
|
Item
|
Description
|
|
Steady Green Illumination
|
Indicates that the link is successfully established at the physical layer.
|
|
Blinking Green
|
Indicates that the port is actively processing (receiving or transmitting) data packets.
|
|
No Illumination
|
Indicates that no link is detected. The SFP module may be absent, faulty, or the cable may be disconnected.
|
Ethernet Port Status Indicator (10/100/1000BASE-T)
|
Item
|
Description
|
|
Steady Green
|
Indicates a successful physical layer connection (Link Up) at the negotiated speed (10, 100, or 1000 Mbps).
|
|
Flashing Green
|
Indicates active data transmission or reception on this port.
|
|
Off
|
Indicates that no link is established. The cable may be unplugged, the connected device may be off, or there may be a fault.
|
