Datasheet of GPA Antenna ATGBD
Overview
High-Sensitivity Waterproof GPS Antenna for Professional Tracking and Navigation Applications

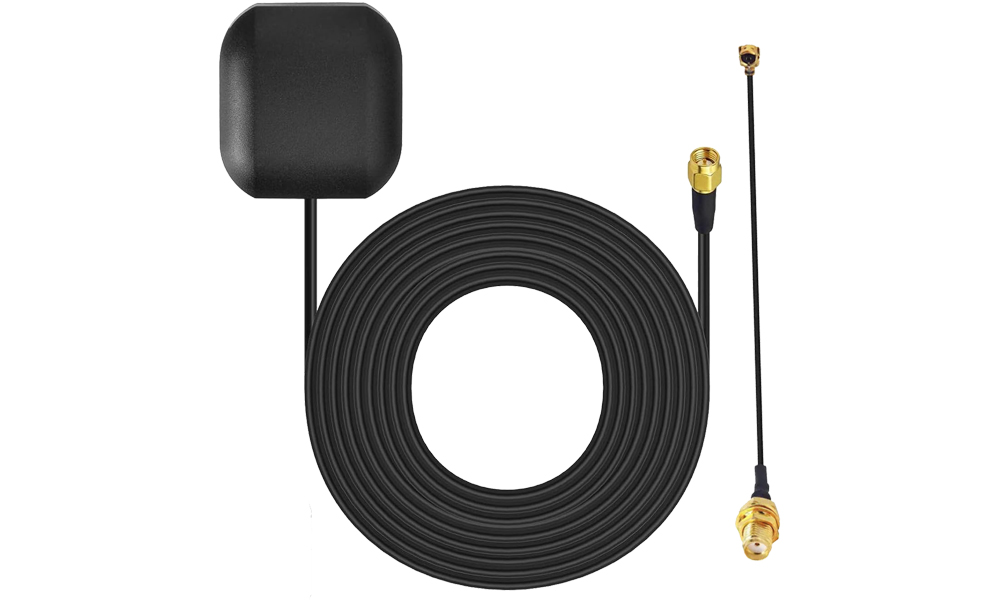

This waterproof active GPS antenna is a high-performance navigation solution designed for professional tracking and IoT applications. Featuring an integrated low-noise amplifier (LNA) with 28dB gain and right-hand circular polarization (RHCP), it delivers exceptional GPS L1 band (1575.42MHz) reception even in challenging environments. The antenna comes with both adhesive and magnetic mounting options, a 3-meter RG174 cable, and a 15cm RG178 coaxial pigtail with SMA male connector for easy integration. With an IP67 waterproof rating and operating temperature range of -40℃ to +65℃, it is ideal for vehicle telematics, industrial IoT, and mobile tracking systems where reliability is critical.
Key Advantages
- High-Gain Active Design: Integrated 28dB LNA ensures superior signal reception in weak signal areas and urban environments
- Dual Mounting Flexibility: Magnetic base and adhesive mounting provide installation versatility for various surfaces and applications
- Professional Waterproof Rating: IP67 certification ensures reliable operation in harsh weather conditions and outdoor environments
- Plug-and-Play Compatibility: Includes SMA male connector and 15cm pigtail for easy connection to GPS modules and receivers
- Wide Voltage Compatibility: Operates on 3V to 5V DC power, making it compatible with most tracking and telematics systems
- Extended Temperature Operation: Functions reliably in extreme temperatures from -40℃ to +65℃
Technical Specifications
GPS Antenna Characteristics
|
Item |
Description |
|
Frequency Range |
1575.42 ± 4 MHz |
|
Antenna Gain |
3.0 dBi |
|
Coverage Angle |
360° horizontal |
|
VSWR |
1.5 maximum |
|
Polarization |
Right Hand Circular Polarization (RHCP) |
|
Impedance |
50 Ω |
|
Axis Ratio |
≤ 5 dB |
|
10dB Bandwidth |
± 10 MHz |
|
Dimensions |
50×48×17 mm(1.97x1.89x0.67 in) |
Low Noise Amplifier (LNA) Characteristics
|
Item |
Description |
|
Frequency Range |
1575 ± 5 MHz |
|
Gain |
28 ± 2 dB |
|
Passband Ripple |
< 1 dB @ 1575.42M ± 1.023MHz |
|
1dB Compression Point |
> -15 dBm output |
|
Noise Figure |
1.8 dB typical |
|
Out-of-band Suppression |
> 35 dBc @ 100 MHz offset |
|
Output VSWR |
≤ 2:1 |
|
Output Impedance |
50 Ω |
|
Operating Voltage |
3.0 - 5.0 VDC |
|
Current Consumption |
≤ 10 mA |
Cable & Connector Specifications
|
Item |
Description |
|
Main Cable Type |
RG174 (3 meters standard) |
|
Pigtail Cable |
15cm/6 inch |
|
Connector |
SMA Male (standard) |
|
Waterproof Rating |
IP67 (100% waterproof) |
Environmental Specifications
|
Item |
Description |
|
Operating Temperature |
-40℃ to +65℃(-40℉ to +149℉) |
|
Storage Temperature |
-50℃ to +85℃(-58℉ to +185℉ |
|
Operating Humidity |
40% to 95% RH |
Mechanical Specifications
|
Item |
Description |
|
Antenna Type |
Active ceramic patch antenna |
|
Mounting Options |
Magnetic base + Adhesive mounting |
|
Housing Material |
ABS plastic (weather resistant) |
|
Waterproof Rating |
IP67 |
|
Color |
Black (standard) |
Compatible Applications
Vehicle Telematics & Tracking
- 4G LTE GPS Tracker Locators
- Vehicle Real-Time Tracking Systems
- Mobile DVR Video Recorders
- Bus/Truck/RV/Van Security Alarm Systems
- Vehicle Amateur Radio Mobile Radio Systems
- Car Anti-theft Devices
- Electronic Navigation Systems
Industrial & IoT Applications
- Internet of Things (IoT) Devices
- Machine-to-Machine (M2M) Communication Systems
- 4G LTE Industrial Gateway Modular Modems
- Mobile Routers and Cellular Terminals
- 4G LTE Cellular RTU/DTU Terminals
- Trail Cameras and Outdoor Monitoring Systems
- Portable Navigation Terminals
Package Contents
- 1 × Waterproof GPS Active Antenna
- 1 × 15cm Pigtail Cable (with SMA Male connector to IPEX)
- Mounting accessories (magnetic base + adhesive pad)
Installation Guidelines
- Choose mounting location with clear view of the sky
- Clean surface thoroughly for adhesive mounting
- Ensure magnetic surface is clean for magnetic mounting
- Connect pigtail cable to antenna and GPS receiver
- Provide 3V-5V DC power to antenna through pigtail cable
- Secure cable to prevent strain on connections
