Datasheet of P2U82V04USB

Overview

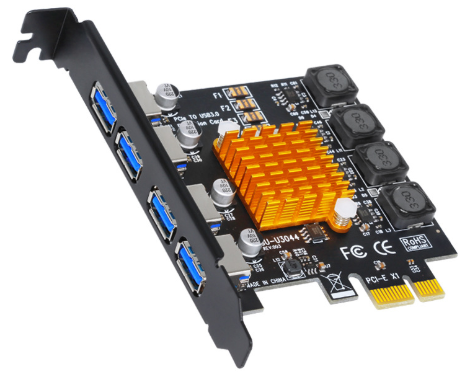

EXVIST PCIe to USB 3.0 Expansion Card (4-Port, High-Speed, Desktop)

This PCIe to USB 3.0 expansion card provides four high-speed USB 3.0 ports for desktop computers. It features NEC technology, allowing for fast data transfer with no external power required. Each USB port is independently powered with up to 2A to ensure stable and reliable performance. This expansion card is ideal for users who need additional USB connectivity without the hassle of external power adapters.

Specification

1. Interface: PCIe (supports PCIe X1, X4, X8, X16)
2. USB Ports: 4 x USB 3.0 (Backward compatible with USB 1.1/2.0)
3. Power Supply: No external power required (internal power management with 4 independent chips)
4. Power per Port: 2A per port, independent power supply for stable performance
5. Data Transfer Speed: Up to 5Gbps
6. Capacitors: Explosion-proof, stable voltage supply for each interface
7. Heat Dissipation: High thermal conductivity material for better stability
8. Protection: Each port features intelligent fuses for added protection

System Requirements

1. Operating System: Windows 7/8/10/11, Linux
2. Available PCIe Slot: PCIe X1, X4, X8, or X16
3. Hardware Requirements: Compatible with desktop computers with a free PCIe slot

Hardware Installation

1. Open the case of your desktop and remove the side panel.
2. Remove the backplate corresponding to the PCIe slot you intend to use.
3. Insert the PCIe card into an available PCIe X1, X4, X8, or X16 slot (do not insert into a PCI slot).
4. Secure the card with a screw to ensure it is properly fixed in place.

Driver Installation

1. After installation, boot your computer and the system should automatically detect the new USB 3.0 expansion card.
2. If needed, install the drivers from the provided CD or download the latest drivers from the manufacturer’s website.

Package Content

1. 1 x PCIe to USB 3.0 Expansion Card (4-Port)
2. 1 x User Manual
3. 1 x Set of screws for installation
