Datasheet of P2R81H02RJ45

Overview

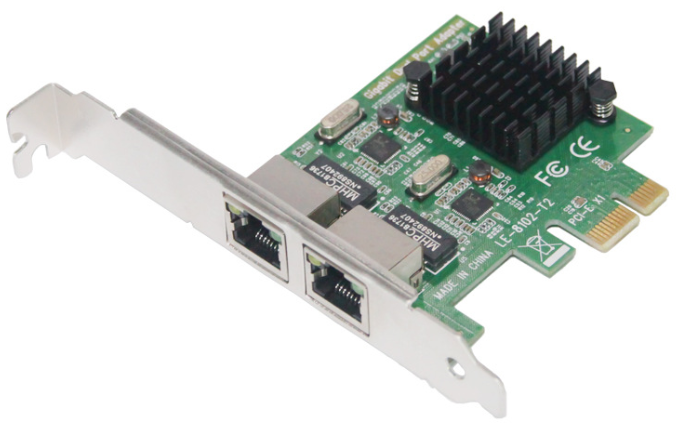

EXVIST PCIe RTL8111H Dual-Port Gigabit Ethernet Network Adapter

The dual-port Gigabit Ethernet network card, powered by the RTL8111H chipset, offers high-performance and reliable connectivity for desktops, workstations, and servers. With dual RJ45 ports supporting 10/100/1000 Mbps transfer speeds and jumbo frame support up to 9K bytes, this card ensures efficient data handling for high-demand networking environments. Its advanced features, including VLAN aggregation, PXE boot, and soft routing capabilities, make it an ideal solution for both professional and personal use.

Specification

1. Network Type: Gigabit Ethernet
2. Transfer Speed: 10/100/1000 Mbps (adaptive)
3. Bus Type: PCI-E X1, compatible with X4, X8, and X16 slots
4. Transmission Media: Cat5e/Cat6 cables
5. Interface: Dual RJ45 ports
6. Transmission Distance: Supports up to 100 meters for 1000 Base-T
7. Duplex Mode: Full-duplex and half-duplex adaptive

8. Jumbo Frame Support: Up to 9K bytes
9. Main Chipset: Intel 82571EB

10. Networking Standards: IEEE 802.1P, 802.1Q, 802.2, 802.3ac, 802.3az, 802.3X, 802.3z

Key Features

1. VLAN aggregation for advanced network segmentation
2. PXE boot support for diskless environments
3. Compatibility with VMware ESXi for virtualization
4. Support for soft routing and network optimization


System Requirements

1. Windows (32-bit & 64-bit)
2. SCO UnixWare/Open Unix
3. Novell Netware
4. SUSE Linux Enterprise Server
5. Red Hat Enterprise Linux
6. Generic Linux distributions
7. FreeBSD
8. Sun Solaris
9. Microsoft DOS
10. VMware ESX

Application

This network card is ideal for high-demand networking tasks such as:

1. Enhancing the performance of desktop systems in office environments
2. Optimizing workstations for file-sharing, virtualization, and server applications
3. Building soft routing solutions for small to medium-sized businesses
4. Configuring PXE boot environments for diskless systems
5. Supporting high-throughput virtual machines in virtualization platforms

Design and Build

1. Independent Power Management: Ensures stable performance for each port.
2. Heat Dissipation: High-efficiency thermal management for reliable operation.
3. Durable Components: Explosion-proof capacitors and robust build quality for long-term reliability.


Dimension

Package Content

1. 1 x PCIe RTL8111H Dual-Port Gigabit Ethernet Network Adapter
2. 1 x Low-Profile Bracket
