Datasheet for Network Adapter Expansion Card P2R81F04RJ45

Datasheet of P2R81F04RJ45

Overview

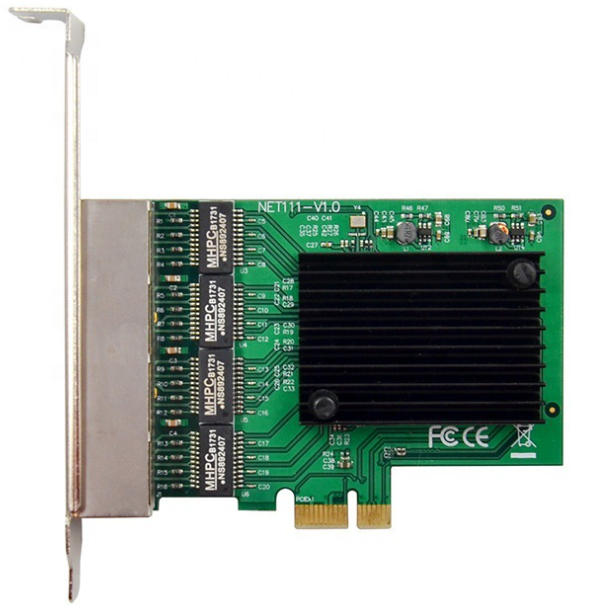

EXVIST PCIe RTL8111F Quad-Port Gigabit Ethernet Network Adapter
This Gigabit Ethernet PCI-Express Card delivers high-performance 10/100/1000 BASE-T Ethernet connectivity, designed with the RTL8111F+ASM1184e chipset for both home and office environments. Equipped with four RJ45 ports, it supports adaptive 10/100/1000 Mbps speeds in both full-duplex and half-duplex modes. The card enables the transmission of gigabit jumbo frames, achieving bidirectional data transfer rates of up to 1000 Mbps.

By integrating this card, you can upgrade your desktop to gigabit network speeds, significantly boosting network performance. It is 100 times faster than standard 10/100BASE-T systems while remaining fully backward-compatible, making it an easy upgrade for networks using CAT-5 cabling.

Specification

  1. Adheres to PCI-Express Revision 1.1 standards.
  2. Features a PCI-Express x1 interface.
  3. Compatible with both standard and low-profile chassis.
  4. Equipped with a high-performance 1000BASE-T Ethernet controller.
  5. Backward compatible with 10/100BASE-T networks.
  6. Supports jumbo frames up to 9K bytes.
  7. Offers 10/100/1000 Mbps auto-negotiation for data rates.
  8. Works with existing CAT-5 UTP cables.
  9. Fully compliant with IEEE802.3, 802.3u, and 802.3ab standards.
  10. Supports half/full duplex and 802.3x Flow Control.
  11. Includes IEEE802.1P Layer 2 Priority Encoding.
  12. Supports IEEE802.1Q VLAN tagging.
  13. Provides on-chip transmit/receive buffer support.
  14. Features crossover detection and auto-correction.
  15. Includes power-saving modes for link/power down.
  16. Supports Wake-on-LAN and remote wake-up functionality.
  17. Offers four RJ45 Gigabit LAN ports.

System Requirements

  1. Compatible with Linux and Windows® operating systems, including versions 98SE, ME, 2000, XP, 2003, Vista, Win7, 2008, and Win8 (32/64-bit).
  2. Requires a PCI Express-compatible system with an available PCI Express slot.

Hardware Installation

  1. Shut down the computer and disconnect the power cord.
  2. Open the computer case and remove the slot cover corresponding to your adapter.
  3. Firmly insert the adapter into the slot and secure it to the chassis.
  4. Close the computer case and reconnect the power cord.
  5. Turn on the computer to complete the installation.

Driver Installation

1. Insert the provided driver CD into your computer's CD-ROM drive.
2. On the Windows desktop, click Start, then Run.
3. Depending on your Windows version, type the corresponding setup file path and click OK:
  1. Windows 98SE/ME: PCIE_Install_5708_1119\setup.exe.
  2. Windows 2000/XP/Server 2003: PCIE_Install_5790_11182011\setup.exe.
  3. Windows Vista/Server 2008: Install_Vista_6250_11182011\setup.exe.
  4. Windows 7/Server 2008: Install_Win7_7049_11182011\setup.exe.
  5. Windows 8/8.1: Install_Win8_8.1_8020_09182013\setup.exe.
4. Follow the on-screen prompts to complete the installation.

Package Content

  1. 1 x PCIe RTL8111F Quad-Port Gigabit Ethernet Network Adapter
  2. 1 x Low-Profile Bracket
