4GM2A Series
Introduction
Part Number | Connector |
M.2(NGFF), USB 3.0, NANO SIM Card Slot |
NOTE: It's essential to note that while the adapter itself is purely hardware, users will need to install the corresponding drivers of the related module you mounted to ensure proper functionality. For more details, please refer to article: Quick Start of LTE Adapter.
We're excited to introduce the EXVIST 4G/5G module evaluation kit, crafted to simplify and expedite the assessment of 4G/5G M.2 modules for our users. Our kit seamlessly integrates the common M.2(NGFF) interface with USB 3.0 downward compatibility, along with essential features such as power supply circuitry and a SIM card slot to streamline the evaluation process.
Designed with practicality and user convenience in mind, this kit functions as a comprehensive component that can be directly plugged into application motherboards. By incorporating USB-powered connectivity and secure fixing holes, we've ensured straightforward integration, empowering users to seamlessly assess and integrate 4G/5G modules into their own applications.
Our aim is to not only meet the technical needs of module evaluation but also to emphasize an exceptional user experience, providing engineers and developers with a user-friendly solution that facilitates the exploration of 4G and 5G technologies.
The adapter features a single USB 3.0 connector, enhancing its ease of installation within a variety of settings, including industrial machines, advertising systems, vending machines, camera modules, and more. Compatibility is assured with a wide range of leading 4G/5G LTE wireless modem brands, including HUAWEI, ZTE, YUGA, QUECTEL, MEIG, DTMOBILE, SIMCOM, and others. We have extensively tested the most common modems, ensuring seamless operation through their virtual serial port drivers, enabling proper dialing as well as sending and receiving text messages.
Hardware Interfaces

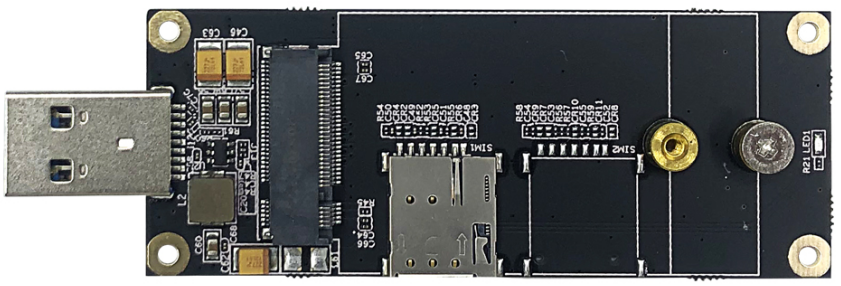

USB3.0 Interface

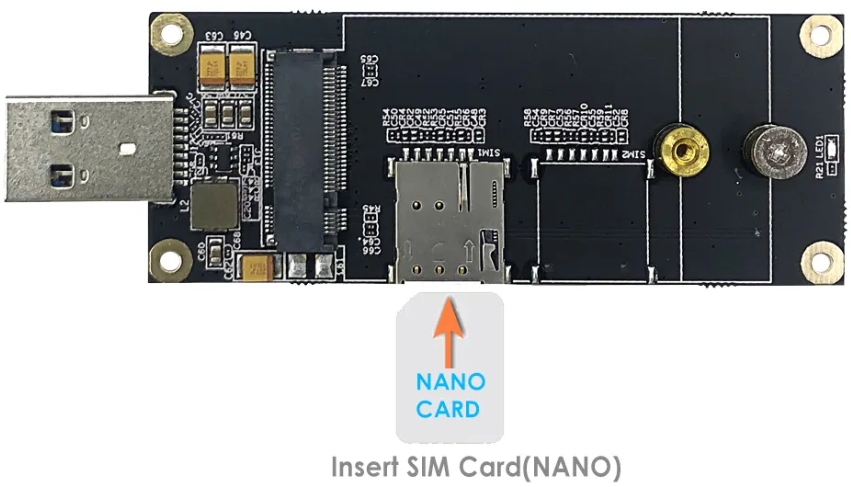

SIM Card & Direction
LED Real-Time Display
The LED_WWAN# signal is directly derived from the 4G/5G module. On the industrial M.2(NGFF) to USB 3.0 adapter, there is a single LED indicator, designated as LED1, which is specifically designed to display the operational status of the modems. For a more detailed explanation of the LED indicator's functionality, please consult the data manual of the 4G/5G module.

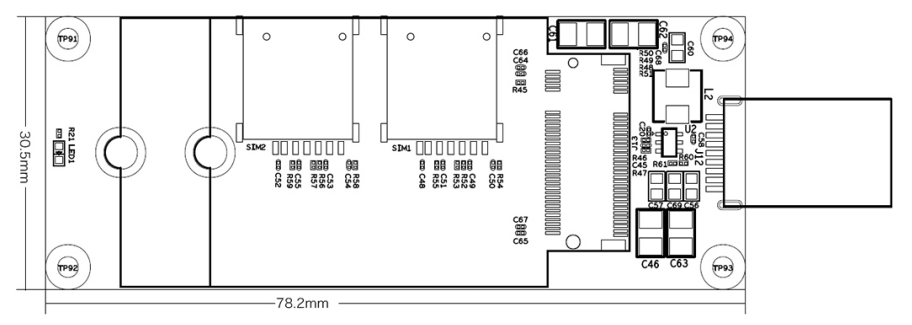

Dimension
