Datasheet of ITS4EM Series
Overview

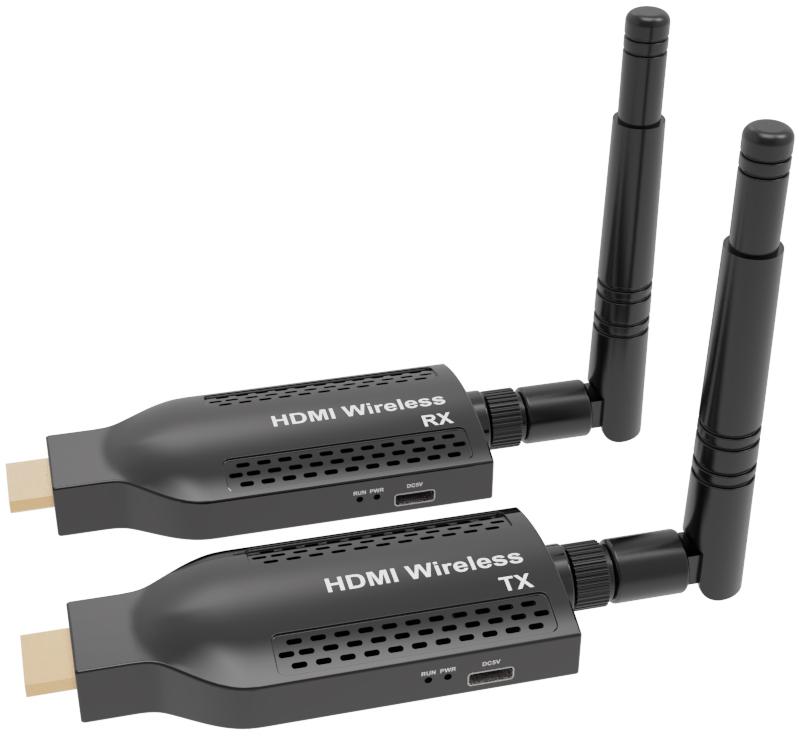

EXVIST ITS4EM Series 150M 4K Ultra HD Wireless HDMI Transmitter & Receiver Kit
The EXVIST ITS4EM Series Wireless HDMI Extender Kit redefines portable high-definition video, delivering stunning 4K@30Hz resolution over a robust wireless link. Engineered for field engineers, content creators, and event production professionals, this system is powered directly by USB-C, often eliminating the need for separate adapters by drawing power from your laptop or a power bank.
With an exceptional 150-meter (492ft) range, support for one-to-four multi-screen setups, and ultra-low latency, the ITS4EM is the ultimate tool for mobile presentations, live production, and any application where cable-free 4K video is critical.
Connection
- Connect the transmitter (TX) to your signal source (e.g., computer, DVD player, or digital camera).
- Connect the receiver (RX) to your display device (e.g., monitor, TV, or projector).
- Press and hold the [RST] button on the receiver (RX) for two seconds to cycle through the available resolutions.

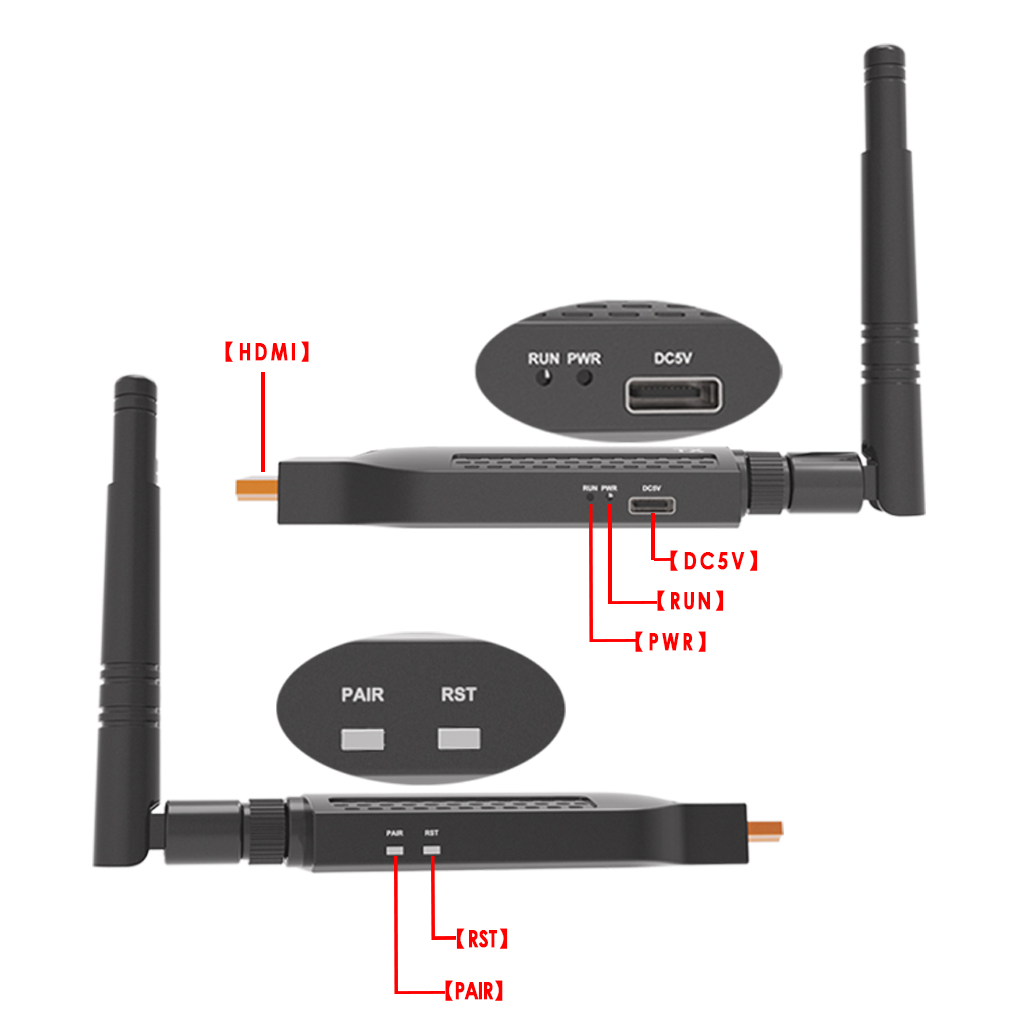

Hardware Interfaces
NOTES:
- DC5V: USB to TYPE-C Power Interface.
- RUN: Running Light (Solid during normal operation, blinks during data transmission.
- PWR: Power Indicator (Lights up when powered on).
- RST: Reset Button (Hold for 10 seconds to restore factory settings).
- PAIR: Pairing Button (Press and hold for 3-5 seconds to enter pairing mode)
Advantages
- True 4K Resolution for Mobile Setups: Transmit crystal-clear 4K Ultra HD (3840x2160) video at 30Hz wirelessly, ensuring your high-resolution content looks impeccable on the big screen, directly from your laptop or camera.
- Unmatched Portability with USB-C Power: The industry-first design is powered directly via USB-C, compatible with laptop power delivery and standard power banks. This eliminates bulky power adapters, making it the most portable pro-grade wireless video solution available.
- Long-Range, Low-Latency Performance: Maintain a stable and reliable 4K video feed at distances up to 150 meters (492 feet), with ultra-low latency that keeps audio and video in perfect sync for live presentations and monitoring.
- One-to-Many Multi-Screen Support: Broadcast your HDMI signal from a single transmitter to up to four receivers simultaneously. Ideal for driving main displays, client monitors, and recording stations all from one source device.
- All-inclusive Professional Kit: Comes complete with a premium travel case, USB-C cables, and everything needed to deploy a professional wireless video system straight out of the box.
Parameters
|
Part Number
|
|
|
Video Encoding
|
H.265
|
| Resolution |
3840*2160P@30HZ, 1920*1080P@60fps
|
|
Transmission Distance
|
Up to 492ft by Wi-Fi Under Open Air
|
|
1-to-More Mode
|
Max. 4x Receivers
|
|
Frequency Bands
|
2.4GHz
|
|
Sets At Site
|
Max. 2 sets at the same site, or else it might cause channel jam.
|
|
Power Adapter
|
Type-C DC5V
|
Specification
Connectors
| Item |
Description
|
|
HDMI (1.4)
|
1x HDMI Male(Transmitter)
1x HDMI Male(Receiver)
|
|
Antenna
|
2x External WiFi Antennas (Transmitter/Receiver)
|
|
RST
|
1x RST (Reset or press & hold it for 1 second to switch output resolution of RX)
|
|
Power
|
1x Type-C DC5V(Transmitter/Receiver)
|
Signal Input/Output
| Item |
Description
|
|
Signal Input
|
1x HDMI Input by Transmitter
|
|
Signal Output
|
1x HDMI Output by Receiver
|
|
Max. Transmission Distance
|
Wireless: Up to 492ft (150M) under open air
|
Video
| Item | Description |
|
Video Encoding
|
H.265
|
|
Video Resolutions
|
Up to 3840*2160P@30HZ, 1920x1080P@60fps, 1080i Not Recommended
|
WiFi
|
Item
|
Description
|
|
Frequency
|
Single Band, 2.4GHz
|
Power
|
Item
|
Description
|
|
Input Voltage
|
AC110V-220V, 50/60HZ
|
|
Output Voltage
|
DC5V/2A
|
|
Consumption
|
≤4.0W(Transmitter/Receiver)
|
Physical
| Item |
Description
|
|
Unit Dimension
|
100 x 40 x 12 mm(3.94 x 1.57 x 0.47 in.)
|
|
Package Dimension
|
172 x 150 x 41 mm(6.77 x 5.91 x 1.61 in.)
|
|
Unit weight(1x unit)
|
42g (0.09 lb, 1.48 oz.)
|
|
Gross weight(1x TX, 1x RX)
|
303g(0.67 lb, 10.69 oz.)
|
|
Housing
|
Plastic
|
|
Color
|
Black
|
Operating Environment
|
Item
|
Description
|
|
Operation Temperature
|
-15℃ ~ 55℃ (5°F ~ 131°F)
|
|
Storage Temperature
|
-40℃~ 60℃ (-40°F ~ 140°F)
|
|
Humidity(Non-Condensing)
|
0-95%
|
Learn more about Model Comparison of 4K Extender.
