RTSP of 1080P Extender

RTSP of 1080P Extender

ONLY available for Transmitter

  1. Power on the transmitter via DC 12V;
  2. Connect it to the switch or router via Ethernet cable;
  3. Or Connect it to your PC via Ethernet cable directly(In this way, it's necessary to add one more network segment to your PC which makes your PC and transmitter are on the same network segment)

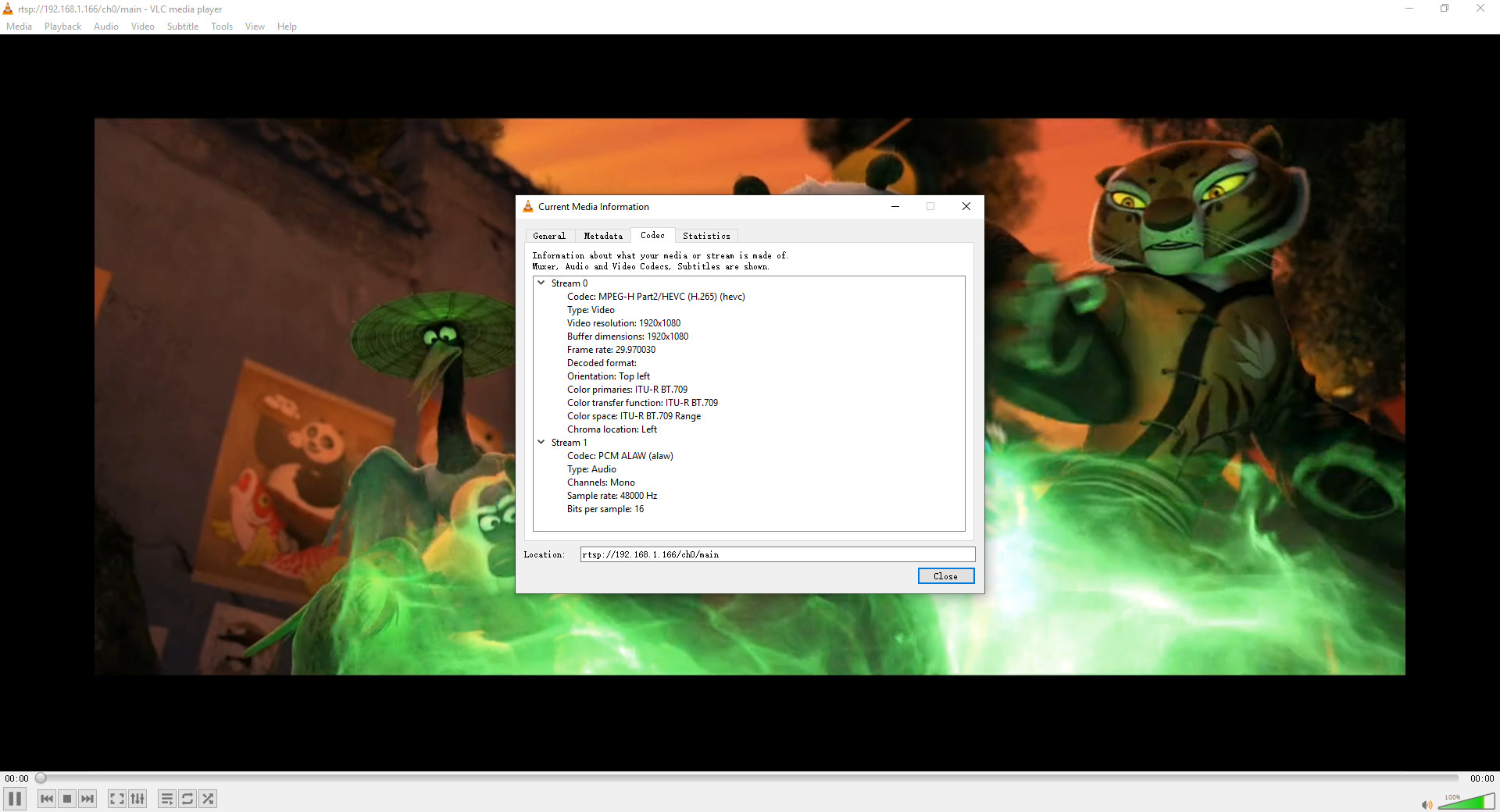

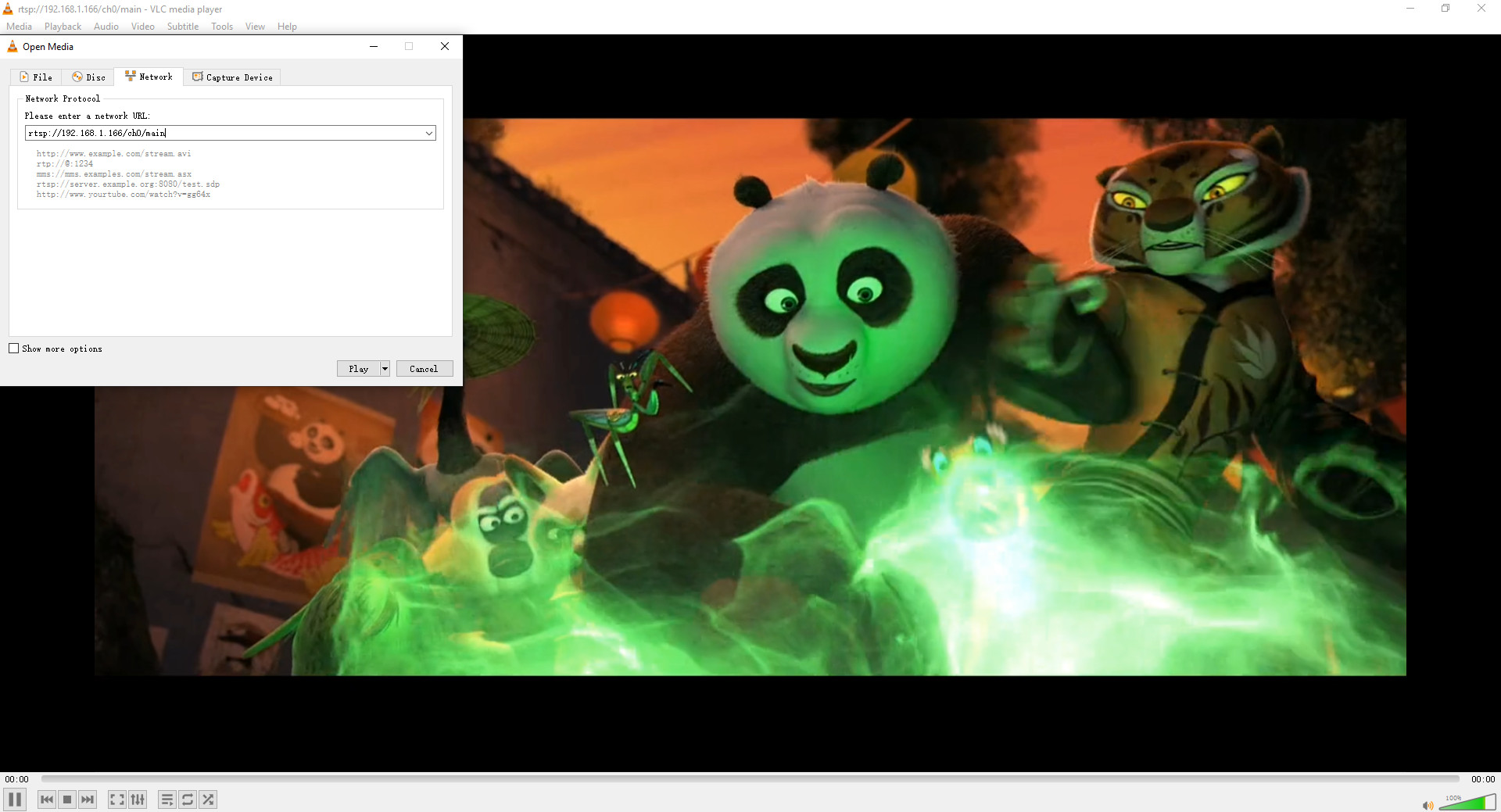

  4. Run VLC Player->Media->Open Network Stream->Enter RTSP URL: rtsp://192.168.1.166/ch0/main->Then video can be play successfully on VLC player


How can we get the RTSP URL correctly?

Please follow below steps:
  1. Start a browser like IE, Chrome, Firefox (Chrome Recommended);
  2. Enter the default IP address 192.168.1.166 (Make sure they're on the same network segment)
  3. Go to Tab Status Dislay->RTSP, which you can check it below:
