Configuring Image Settings and Corridor Mode on EXVIST HDMI Encoders

Image of Encoder

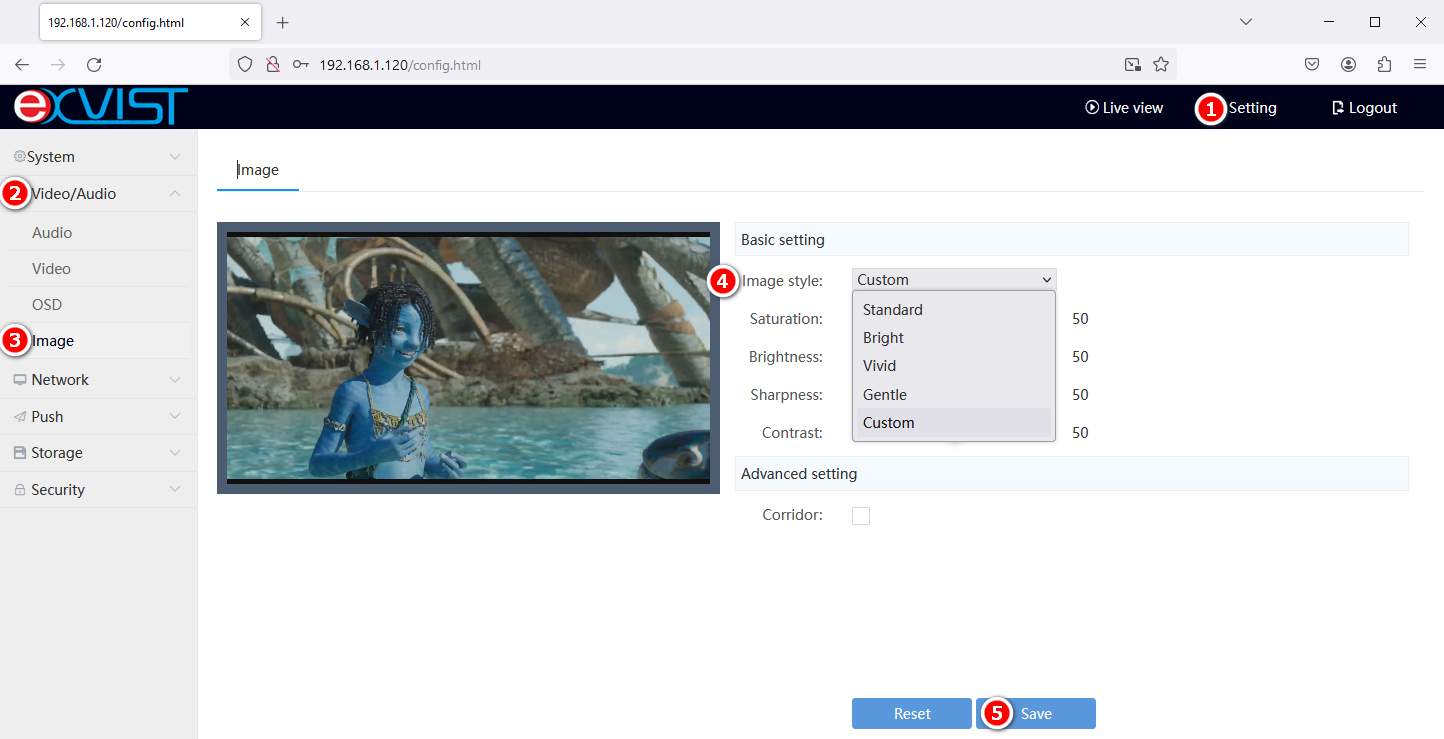

Basic Setting

Items
Options
Saturation
0-100
Brightness
0-100
Sharpness
0-100
Contrast
0-100
Info
🧙TIPS: it might not be helpful for GK72 & Pro Encoder Series.

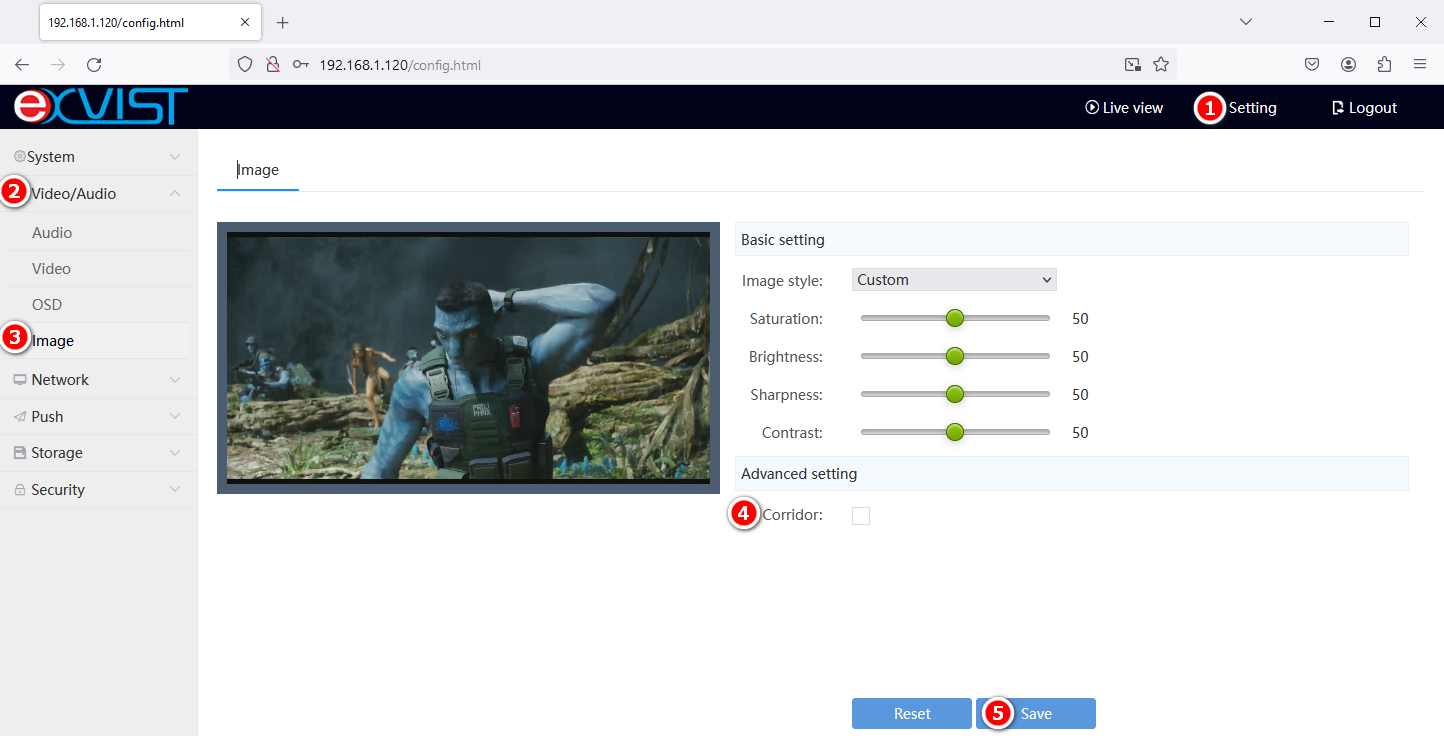

Advanced Setting

  1. Go to Setting->Video/Audio->Image->Advanced Setting
  2. Enable Corridor if you'd like to stream live video to TikTok or other platform;

Notes
NOTE: Enabling the "corridor mode" or "portrait mode" allows users to stream or capture live video in a vertical format. This is particularly useful for content intended for platforms where vertical video is the preferred orientation, such as certain social media apps TIKTOK and websites, as well as for specific content types like live interviews, tutorials, and mobile viewing experiences.

By enabling corridor mode, the video feed is displayed vertically, creating a seamless viewing experience for audiences who are using mobile devices or platforms where vertical video is best suited. It's important to note that not all cameras or streaming devices support corridor mode, so users should ensure that their equipment has this feature if they intend to stream video in a vertical format.

When corridor mode is activated, the video stream or recorded content will be optimized for vertical viewing, providing a better experience for audiences engaging with the content on mobile devices or platforms that favor vertical video.

Video Tutorial(Old Hardware)
