How to Configure Unicast Streaming on EXVIST HDMI Encoder

Unicast of Encoder

Unicast

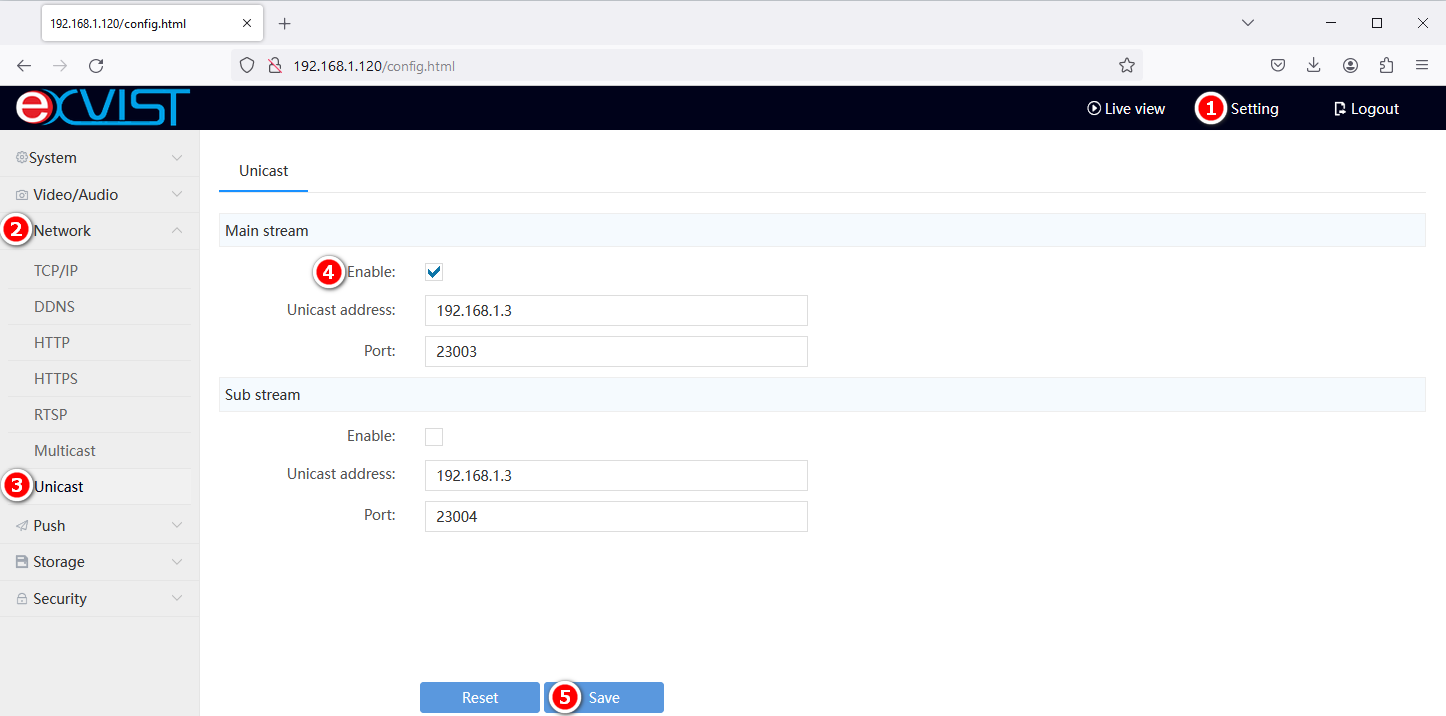

  1. Go to Setting->Network->Unicast
Item
 Description
Main Stream
Enable: Check the checkbox;
Unicast address: 192.168.1.3;
Port: change port if required;
Sub Stream
Enable: Check the checkbox;
Unicast address: 192.168.1.3;
Port: Change port if required;
