How to Configure HTTP Port, TS Stream, and HLS on EXVIST HDMI Encoders

HTTP of Encoder

HTTP

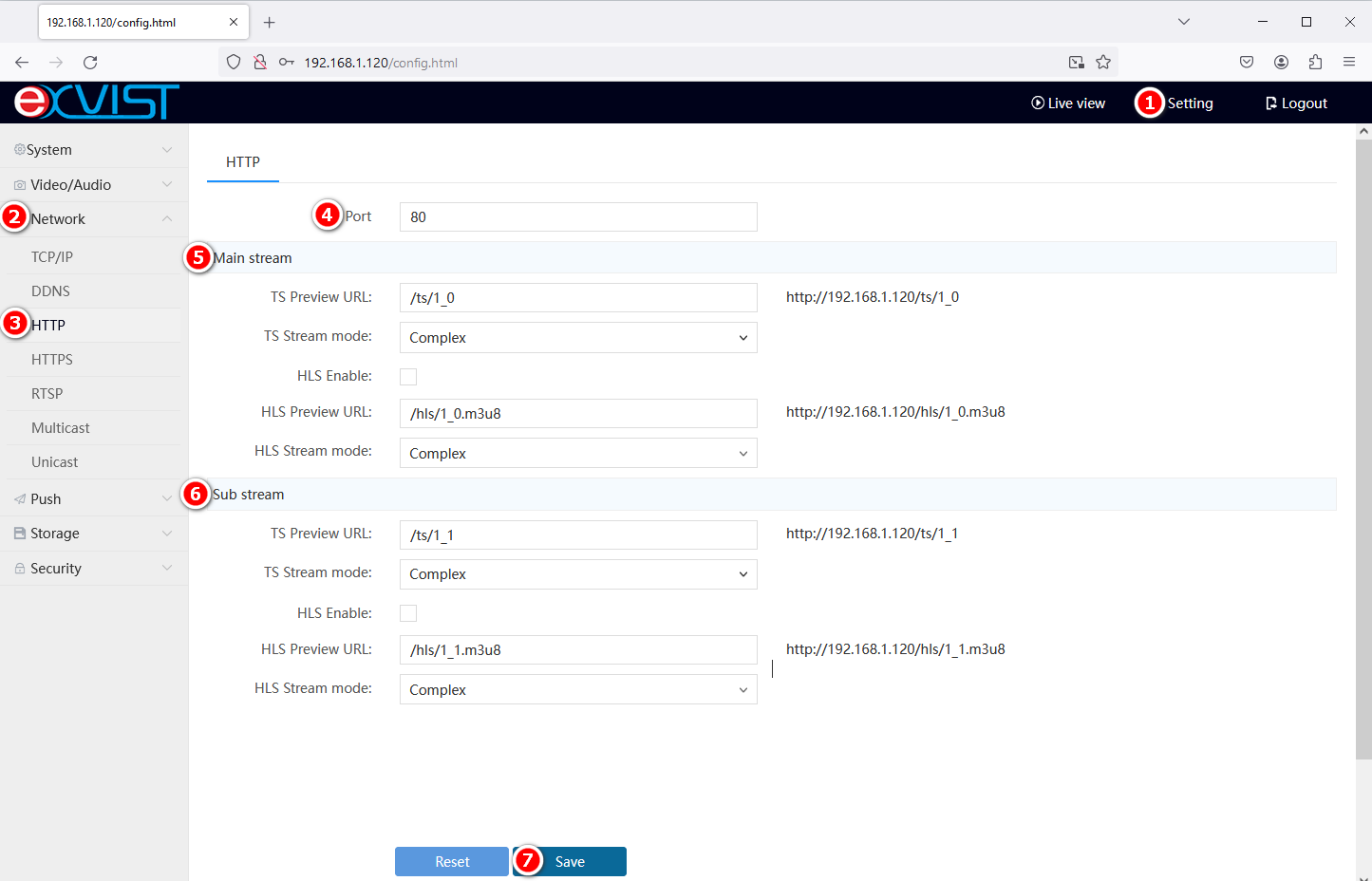

  1. Go to Setting->Network->HTTP
Item
Description
Port
Change port if required
Main Stream
TS Preview URL: http://192.168.1.120/ts/1_0; TS Stream mode: Complex/Video/Audio;
HLS Preview URL: http://192.168.1.120/hls/1_0.m3u8; HLS Stream mode: Complex/Video/Audio;
Sub Stream
TS Preview URL: http://192.168.1.120/ts/1_1; TS Stream mode: Complex/Video/Audio;
HLS Preview URL: http://192.168.1.120/hls/1_1.m3u8; HLS Stream mode: Complex/Video/Audio;
TS
1_0: Main Stream/1_1: Sub Stream, And the 1st 1 means the Channel 1
HLS
1_0: Main Stream/1_1: Sub Stream, And the 1st 1 means the Channel 1
Complex
Video & Audio together

Info
🧙TIPS: The capability of playing video via the HLS (HTTP Live Streaming) protocol is supported on VLC and smartphones. This means that users can simply paste the provided links into VLC media player or a smartphone's web browser to access and stream the content using the HLS protocol.

Video Tutorial for Native Stream HLS(Old Hardware)

In this video, we're going to show you how to use HLS to view H.264 video stream in browser-Chrome/Safari on our iPhone.

Video Tutorial for Streaming Audio Only(Old Hardware)

Learn more about FAQs of HTTP

  1. FAQs: HTTP of Encoder
