Datasheet of ON-DMI-16D
Overview
EXVIST Basic HDMI Video Encoder W/Loopout & SD Card Slot
The ON-DMI-16D is an EXVIST HDMI Video Encoder with a built-in HDMI loopout and SD card slot. This device is designed to encode HDMI video signals and transmit them over a network for viewing on a variety of devices. The HDMI loopout feature allows for easy connection to a local display or monitor, while the SD card slot provides a convenient way to store and record video footage. With its advanced encoding capabilities, the ON-DMI-16D is a versatile and reliable solution for streaming high-quality live video. Application scenarios are as below:
- IPTV, Hotel TV System
- Digital Signage, Video Conference, Video Capture
- Live Broadcasting or Streaming to YouTube or Wowza etc.
- Distance Education, Campus Broadcast, Telemedicine
- Multimedia Stitching Display
- NVR, Recording System, Video Surveillance

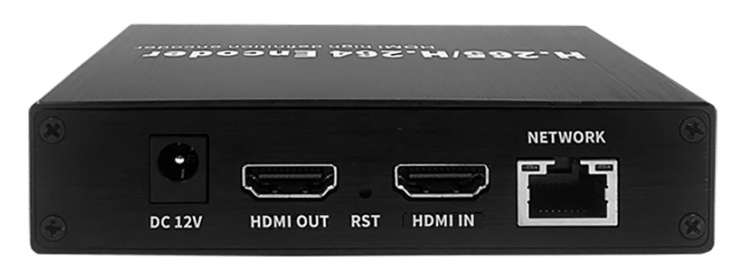

Hardware
Advantages
- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264) like IPTV, but also for pushing stream via RTMP (H.264 only) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable not only for basic CCTV surveillance, NVR, recording system, but also for live broadcasting like IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. With HLS(H.264 Only), you can also view live video on your smartphone, iPad directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast etc protocols supported. It's compatible with Onvif and Hikvision private prococol which allows it work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
- Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 128G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P Basic HDMI Encoder w/HDMI Loopout, SD Card Slot for Recording
|
|
Encoding
|
Max. 1ch Encoding
|
|
Video Input
|
1ch HDMI Input, Max. 1920*1080P@50/60FPS
|
|
System Mode
|
Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60
|
|
Frame Rate
|
Up to 25/30 or 50/60, Configurable, Determined by System Mode
|
|
Encoding Performance
|
Max. 1080p@55fps, Tested by Playing RTSP Stream in PotPlayer
|
|
Video Output
|
1ch Output by HDMI Output or Ethernet
|
|
HDMI Output
|
1ch HDMI Output, Max. 1920*1080P@60fps
|
|
Audio I/O
|
Embedded over HDMI or 3.5mm Line-In
|
|
Audio Mix
|
Unavailable
|
|
Local Recording
|
Built-in Micro SD slot for Local Recording, Max. 128GB
|
|
Interfaces
|

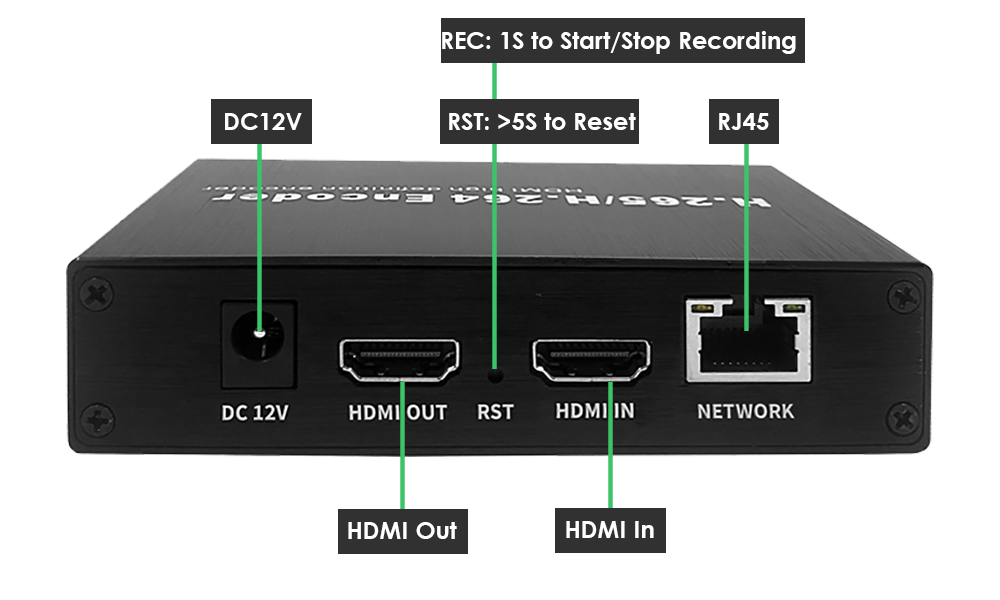

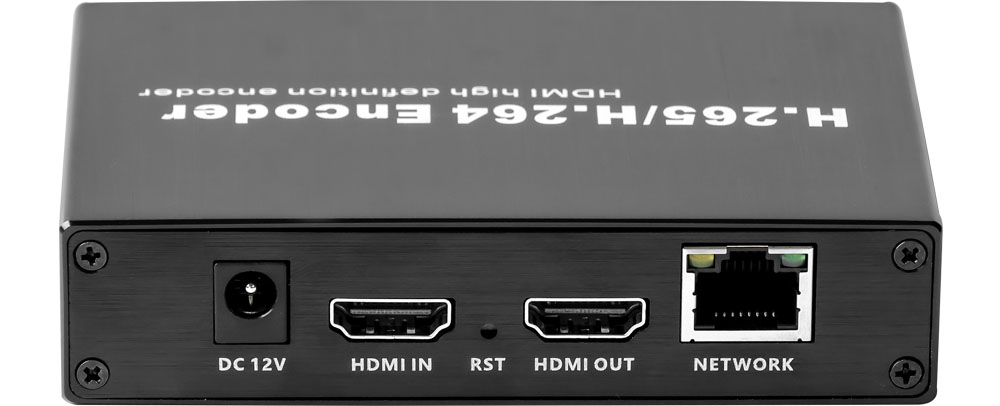

1x HDMI In, 1x 3.5mm Line-In Audio Jack, 1x Micro-SD Slot, 1x Hardware Reset Button, 1x RJ45
|
Specification
|
Part Number
|
|
|
SOC
|
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
|
|
Model: ON-DMI-16D (Max. 60FPS)
|
|
|
Video/Audio Encoding
|
Video Encoding: H.265/H.264
|
|
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
|
|
|
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
|
|
|
Frame Rate: 52Hz: 1-25fps; 60Hz: 1-30fps(Configurable)
|
|
|
Main Stream: 1920*1080, 1600*900, 1440*1052, 1440*900, 1360*768, 1280*1024, 1280*720
|
|
|
Sub Stream: 704*576, 640*480, 640*352, 352*288, 320*240
|
|
|
Video Stream
|
TS (Main Stream): http://192.168.1.120:80/ts/1_0
|
|
TS (Sub Stream): http://192.168.1.120:80/ts/1_1
|
|
|
HLS (Main Stream): http://192.168.1.120/hls/1_0.m3u8
|
|
|
HLS (Sub Stream): http://192.168.1.120/hls/1_1.m3u8
|
|
|
RTSP (Main Stream): rtsp://192.168.1.120:554/live/1_0
|
|
|
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1_1
|
|
|
UDP: udp://@224.1.2.3:10000
|
|
|
Protocols
|
TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, ONVIF
|
|
Interface
|
Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
|
|
HDMI: 1ch HDMI Input
|
|
|

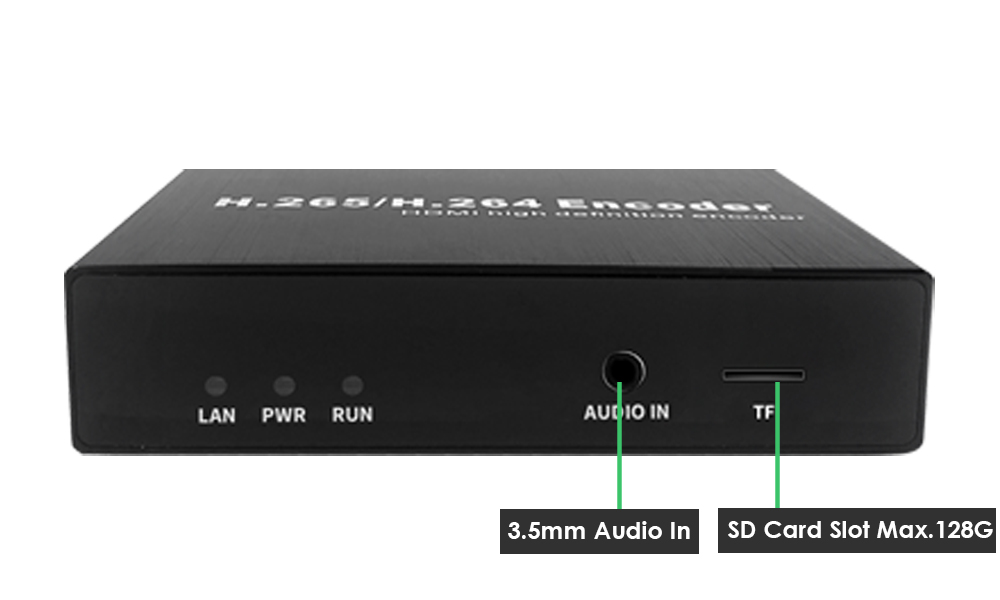

SD Card Slot: 1ch Micro SD Card Slot, available for recording/playing
|
|
|

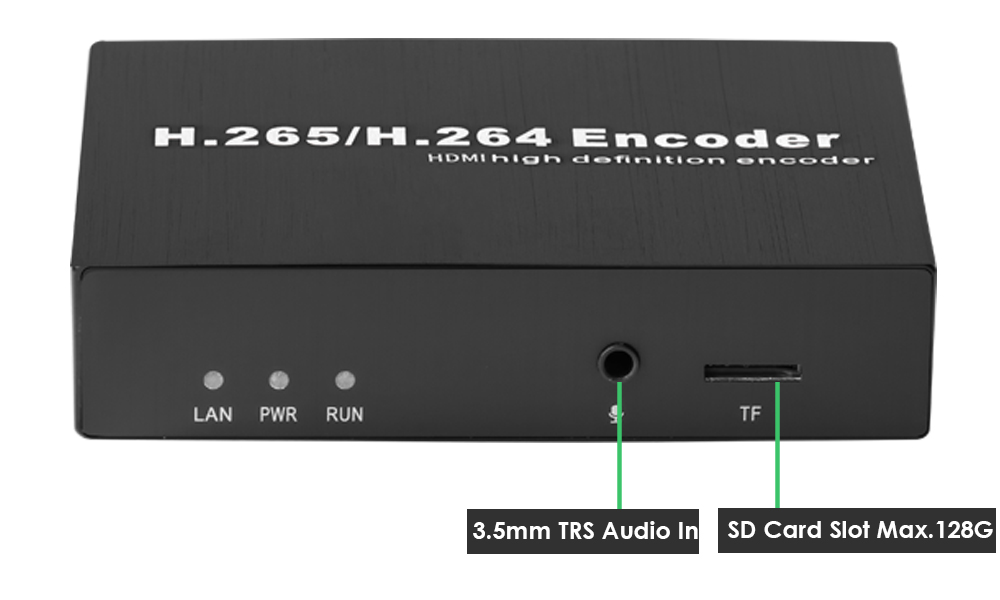

Audio: 1ch 3.5mm Line-in Port
|
|
|
Power: 1ch DC12V Power Input
|
|
|
Reset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
|
|
|
Others
|
Operating Temperature: -10°C~+55°C[14°F~131°F]
|
|
Operating Humidity: ≤95%(Non-Condensing)
|
|
|
Power Supply: DC12V 1A or Higher
|
|
|
Power Consumption: ≤3W
|
|
|
Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
|
|
|
Package Dimension: 220mm x 152mm x 60mm[8.7in x 5.9in x 2.4in]
|
|
|
Net Weight: 186g[0.41lb, 6.56oz]
|
|
|
Gross Weight: 385g[0.85lb, 13.58oz]
|
|
|
Application
|
IPTV Satellite Modulator/Hotel TV System
|
|
CCTV Camera/Camcorder
|
|
|
UAV Image Transmission/DLSR Camera
|
|
|
Drone/DV/FPV/Medical Equipment
|
|
|
Digital Signage/Video Conference
|
|
|
Online Live Streaming Broadcast or Server
|
|
|
Teaching/Campus Broadcast/Telemedicine
|
|
|
Multimedia Stitching Display
|
|
|
NVR/Recording System
|
|
|
Package Include
|
1x HDMI Video Encoder
|
|
1x DC12V 1A Power Adapter
|
|
|
1x HDMI Cable(1M)
|
|
|
1x Ethernet Cable(1M)
|
|
|
1x Live Broadcasting Quick Guide
|
