Datasheet of ON-DMI-16EC
Overview

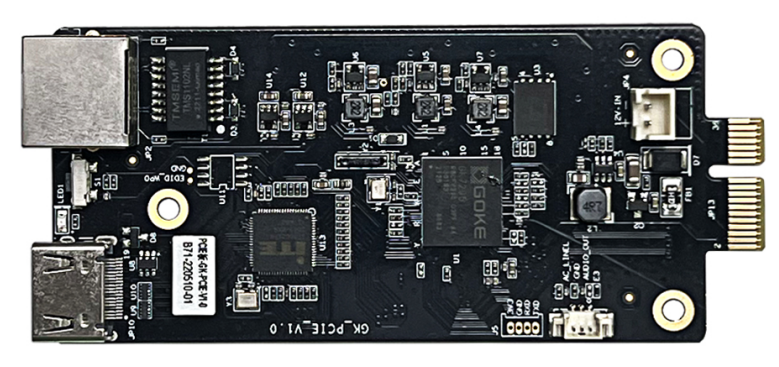

EXVIST Mini HDMI Video Encoder W/PCIe
Introducing the ON-DMI-16EC, a versatile mini HDMI video encoder designed for a wide array of applications, including CCTV surveillance, computer monitoring, and live broadcasting to platforms like YouTube and Facebook. This compact encoder supports resolutions up to 1080P, ensuring high-quality video output. The ON-DMI-16EC offers flexible power options, allowing it to be powered by either a DC12V adapter or PCIe interface, making it ideal for various setups. Whether you’re streaming live events or enhancing your surveillance capabilities, the ON-DMI-16EC is the perfect solution for reliable and efficient video encoding. Application scenarios are as below:
- IPTV, Hotel TV System
- Digital Signage, Video Conference, Video Capture
- Live Broadcasting or Streaming to YouTube or Wowza etc.
- Distance Education, Campus Broadcast, Telemedicine
- Multimedia Stitching Display
- NVR, Recording System, Video Surveillance
Advantages
- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264) like IPTV, but also for pushing stream via RTMP (H.264 only) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable not only for basic CCTV surveillance, NVR, recording system, but also for live broadcasting like IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. With HLS(H.264 Only), you can also view live video on your smartphone, iPad directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast etc protocols supported. It's compatible with Onvif and Hikvision private prococol which allows it work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P HDMI Encoder w/PCIe
|
|
Encoding
|
Max. 1ch Encoding
|
|
Video Input
|
1ch Mini HDMI Input, Max. 1920*1080P@50/60FPS
|
|
System Mode
|
Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60
|
|
Frame Rate
|
Up to 25/30 or 50/60, Configurable, Determined by System Mode
|
|
Encoding Performance
|
Max. 1080p@55fps, Tested by Playing RTSP Stream in PotPlayer
|
|
Video Output
|
1ch Output by Ethernet
|
|
HDMI Output
|
Unavailable
|
|
Audio I/O
|
Embedded over Mini HDMI
|
|
Audio Mix
|
Unavailable
|
|
Local Recording
|
Unavailable
|
|
Interfaces
|
1x HDMI In, 1x PCIe, 1x DC12V Power Input(2PIN PH2.5), 1x Hardware Reset Button, 1x RJ45
|
Specification
|
Part Number
|
|
|
SOC
|
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
|
|
Model: ON-DMI-16EC (Max. 60FPS)
|
|
|
Video/Audio Encoding
|
Video Encoding: H.265/H.264
|
|
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
|
|
|
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
|
|
|
Frame Rate: 52Hz: 1-25fps; 60Hz: 1-30fps(Configurable)
|
|
|
Main Stream: 1920*1080, 1600*900, 1440*1052, 1440*900, 1360*768, 1280*1024, 1280*720
|
|
|
Sub Stream: 704*576, 640*480, 640*352, 352*288, 320*240
|
|
|
Video Stream
|
TS (Main Stream): http://192.168.1.120:80/ts/1_0
|
|
TS (Sub Stream): http://192.168.1.120:80/ts/1_1
|
|
|
HLS (Main Stream): http://192.168.1.120/hls/1_0.m3u8
|
|
|
HLS (Sub Stream): http://192.168.1.120/hls/1_1.m3u8
|
|
|
RTSP (Main Stream): rtsp://192.168.1.120:554/live/1_0
|
|
|
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1_1
|
|
|
UDP: udp://@224.1.2.3:10000
|
|
|
Protocols
|
TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, ONVIF
|
|
Interface
|
Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
|
|
HDMI: 1ch HDMI Input
|
|
|
Audio: Embedded over HDMI
|
|
|
Power: 1ch DC12V Power Input(2PIN PH2.5) or 1ch PCIe
|
|
|
Reset/Record: 1ch Reset(Press it for more than 5 seconds to reset)
|
|
|
Others
|
Operating Temperature: -10°C~+55°C[14°F~131°F]
|
|
Operating Humidity: ≤95%(Non-Condensing)
|
|
|
Power Supply: DC12V 1A or Higher
|
|
|
Power Consumption: ≤3W
|
|
|
Unit Dimension: 110mm x 48mm x 19mm[4.33in x 1.89in x 0.75in]
|
|
|
Package Dimension: 130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in]
|
|
|
Net Weight: 28g[0.06lb, 0.98oz]
|
|
|
Gross Weight: 100g[0.22lb, 3.53oz]
|
|
|
Application
|
IPTV Satellite Modulator/Hotel TV System
|
|
CCTV Camera/Camcorder
|
|
|
UAV Image Transmission/DLSR Camera
|
|
|
Drone/DV/FPV/Medical Equipment
|
|
|
Digital Signage/Video Conference
|
|
|
Online Live Streaming Broadcast or Server
|
|
|
Teaching/Campus Broadcast/Telemedicine
|
|
|
Multimedia Stitching Display
|
|
|
NVR/Recording System
|
|
|
Package Include
|
1x HDMI Video Encoder
|
|
1x HDMI Cable(1M)
|
|
|
1x Ethernet Cable(1M)
|
|
|
1x Live Broadcasting Quick Guide
|
