Datasheet of ON-BNC-16EM
Overview
EXVIST Mini CVBS Video Encoder W/SD Card Slot
ON-BNC-16EM is designed for industrial use which enables users to stream live video to YouTube or Facebook via wired connection. It's ideal for not only projects but also personal use if you would like to do live broadcasting to YouTube, Facebook, Twitch etc as well as recording real-time video. With the latest firmware, it can not only work as one video encoder, but also as one audio encoder because it supports video and audio seperation. Application scenarios are as below:
- IPTV, Hotel TV System
- Digital Signage, Video Conference, Video Capture
- Live Broadcasting or Streaming to YouTube or Wowza etc.
- Distance Education, Campus Broadcast, Telemedicine
- Multimedia Stitching Display
- NVR, Recording System, Video Surveillance

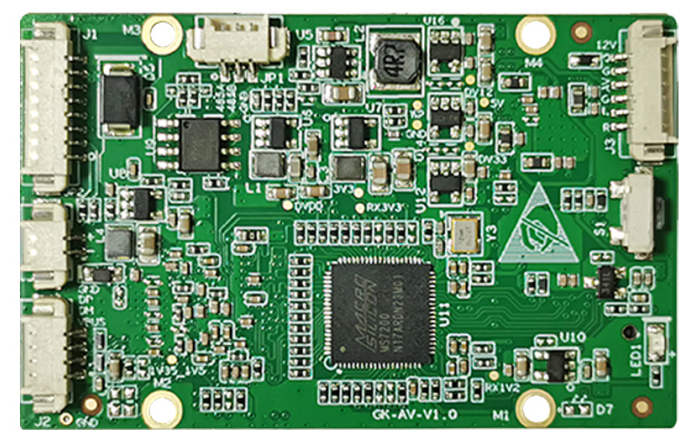

Hardware
Advantages
- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264) like IPTV, but also for pushing stream via RTMP (H.264 only) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable not only for basic CCTV surveillance, NVR, recording system, but also for live broadcasting like IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. With HLS(H.264 Only), you can also view live video on your smartphone, iPad directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast etc protocols supported. It's compatible with Onvif and Hikvision private prococol which allows it work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
- Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 128G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P CVBS Encoder w/SD Card Slot for Recording
|
|
Encoding
|
Max. 1ch Encoding
|
|
Video Input
|
1ch CVBS Input, Max. 1920*1080P@50/60FPS
|
|
System Mode
|
Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60
|
|
Frame Rate
|
Up to 25/30 or 50/60, Configurable, Determined by System Mode
|
|
Encoding Performance
|
Max. 1080p@55fps, Tested by Playing RTSP Stream in PotPlayer
|
|
Video Output
|
1ch Output by Ethernet
|
|
HDMI Output
|
Unavailable
|
|
Audio I/O
|
Embedded over CVBS
|
|
Audio Mix
|
Unavailable
|
|
Local Recording
|

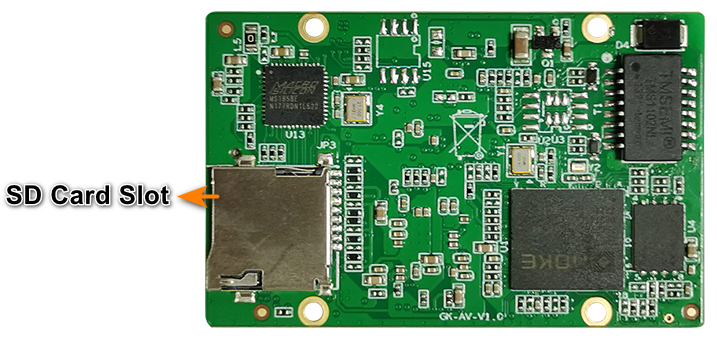

Built-in Micro SD slot for Local Recording, Max. 128GB
|
|
Interfaces
|
1x CVBS In, 1x Micro-SD Slot, 1x Hardware Reset Button, 1x RJ45
|
Specification
Video Input/Output
|
Item
|
Description
|
|
Video Input Interfaces
|
CVBS
|
|
Max. Input Resolution
|
1080P@60FPS
|
|
Supported Input Resolutions
|
1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
|
|
Unsupported Input Resolutions
|
1366x768, 1080i
|
|
Output Interfaces
|
Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(Micro SD Card)
|
|
Loopout Resolution
|
N/A
|
|
Max. Loopout Resolution
|
N/A |
Audio Input/Output
|
Item
|
Description |
|
Audio Input Interfaces
|
3.5mm TRS Line-In(2PIN PH1.25)
|
|
Audio Sampling Rate
|
8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
|
|
Audio Input Volume
|
0~100, Adjustable for 3.5mm TRS Line-IN ONLY
|
|
Audio Output Interfaces
|
Network Audio Stream
|
|
Audio Output Volume
|
0~100, Adjustable for Intercom ONLY
|
Video Encoding
|
Item
|
Description
|
|
Supported Video Standards
|
H.264/AVC, H.265/HEVC
|
|
Video Encoding Channels
|
1
|
|
Main Stream
|
1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
|
|
Sub Stream
|
720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
|
|
Max. Encoding Resolution
|
1080@60FPS
|
|
Bitrate Control Mode
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|
Framerate
|
Up to 25/30FPS or 50/60FPS, Determined by System Mode
|
|
GOP(Key Interval)
|
5-200
|
|
Bitrate
|
64-12000Kbit/s
|
|
OSD Overlay
|
Date&Time, Text, Picture(JPG, PNG)
|
Audio Encoding
|
Item
|
Description
|
|
Supported Audio Codecs
|
AAC, G.711A, G.711U
|
|
Audio Encoding Channels
|
1
|
|
Audio Bitrate Range
|
32K/64K/128K/256K
|
|
Audio Channels Supported
|
Stereo/Mono
|
Video Stream
|
Item
|
Description
|
|
Concurrent Stream Count
|
6x RTSP Streams
|
|
Stream Latency
|
70~140ms(PC-To-Encoder+Decoder HDMI Output)
|
|
Stream Types Supported
|
Live Streaming, Multicast Streaming
|
|
TS (Main Stream)
|
|
|
TS (Sub Stream)
|
|
|
HLS (Main Stream)
|
|
|
HLS (Sub Stream)
|
|
|
RTSP (Main Stream)
|
rtsp://192.168.1.120:554/live/1_0
|
|
RTSP (Sub Stream)
|
rtsp://192.168.1.120:554/live/1_1
|
|
UDP
|
udp://@224.1.2.3:10000
|
Protocols & Networking
|
Item
|
Description
|
|
Networking Protocols
|
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
|
|
Streaming Protocols
|
RTSP Pull, RTSP Push, RTMP, RTMPS, SRT, HLS, TS, UDP
|
|
ONVIF Protocol
|
Compatible
|
|
HK/DH Protocol
|
Compatible
|
|
Security Features
|
RTSP Authentication, ONVIF Authentication
|
Interface
|
Item
|
Description
|
|
Physical Input Interfaces
|
1x CVBS Input, 1x 3.5mm TRS Line-in(2PIN PH1.25)
|
|
Physical Output Interfaces
|
1x Network Port Terminal(4PIN PH1.25)
|
|
Network Interface
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
Local Recording
|
1ch Built-in Micro SD Slot for Local Recording, Max. 128GB
|
|
Reset/Record
|
1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
|
|
Screen Type
|
N/A
|
General
|
Item
|
Description
|
|
Default Credentials
|
User: admin; Password: 12345
|
|
Default Static IP
|
192.168.1.120
|
|
Power Supply
|
DC12 1A or Higher
|
|
Power Consumption
|
≤3w
|
|
Operating Temperature
|
-10°C~+55°C[14°F~131°F]
|
|
Operating Humidity
|
≤95%
|
|
Unit Dimension
|
60mm x 35mm x 8mm[2.36in x 1.38in x 0.31in]
|
|
Package Dimension
|
172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
|
|
Net Weight
|
12g[0.03lb, 0.42oz]
|
|
Gross Weight
|
100g[0.22lb, 3.53oz]
|
