Datasheet of ON-AHD-16EM
Overview
EXVIST ON-AHD-16EM – 1080P AHD Encoder w/SD Card & Multi-Protocol Streaming
The EXVIST ON-AHD-16EM is a compact embedded AHD encoder that converts analog AHD video (up to 1080p@60fps) into H.265/H.264 network streams. It supports simultaneous streaming via RTMP, RTSP, SRT, HLS, TS, UDP, and Multicast. With a built-in microSD slot (up to 128GB) for local recording, ONVIF/Hikvision compatibility, cross-browser web UI, and ultra-low latency (70–140ms), it is ideal for live broadcasting, IPTV, CCTV surveillance, video conferencing, and remote teaching.
Application Scenarios
- Live broadcasting to YouTube, Facebook Live, Twitch, Wowza, and RTMP platforms
- IPTV systems and multicast streaming for hotels, campuses, or enterprises
- CCTV surveillance with NVR integration (ONVIF, Hikvision iVMS-4200/8700)
- Video conferencing and telemedicine systems
- Remote teaching, e-learning, and major events streaming
- Esports and video game live streaming
- WeMedia and personal live streaming with HLS for mobile viewing

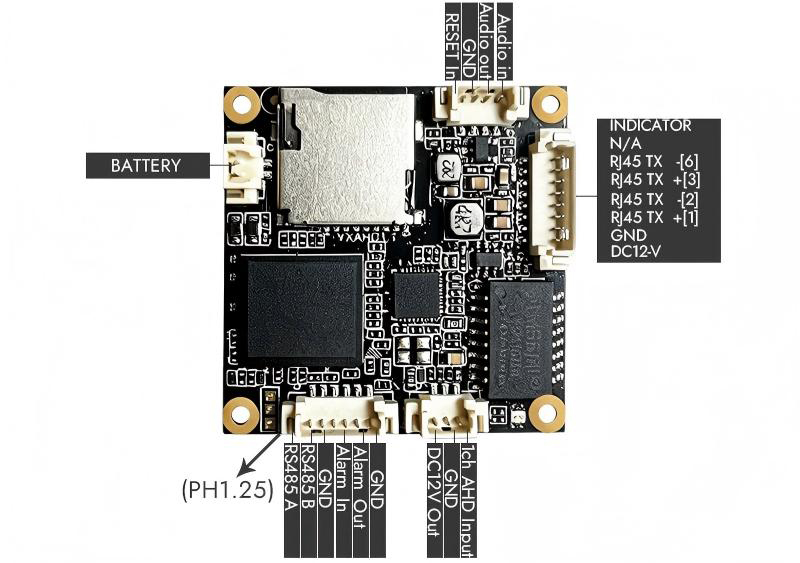

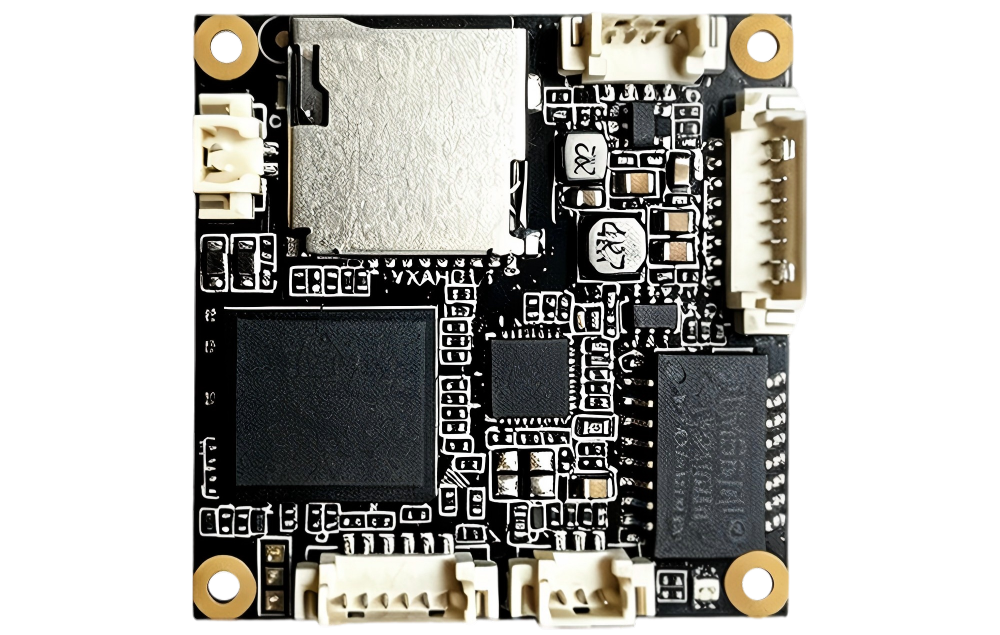

Hardware
Advantages
- Multi-Platform Broadcasting – Supports pulling streams via TS (H.265/H.264) to any server and pushing RTMP (H.264) directly to Wowza, YouTube, Twitch, Facebook Live, Livestream, Wirecast, vMix, and more. Also supports dual-address push streaming.
- Comprehensive Protocol Support – RTMP, RTMPS, SRT, RTSP, HLS, TS, UDP, Multicast, HTTP, HTTPS, ONVIF, and Hikvision private protocol. Works seamlessly with iVMS-4200/8700 and Hikvision NVRs (H.265 recording supported).
- True Cross-Browser & User-Friendly UI – Live preview and full configuration on IE, Edge, Chrome, Firefox, and Safari. Insert logo (JPG 200×200), add OSD text, set AAC audio, adjust bitrate, and remotely upgrade firmware – all from the browser.
- Ultra-Low Latency & Flexible Streaming – Stream latency as low as 70–140ms (PC-to-encoder + decoder HDMI output). Supports 6 concurrent RTSP streams, adjustable bitrate (64–12000 Kbps), dual-stream encoding (main/sub), and 1080p@60fps encoding performance.
- Compact & Rugged Design – Tiny footprint (38mm × 38mm × 8mm) and lightweight (9.5g), making it easy to embed into any system, install in tight spaces, or use in mobile applications.
Parameters
| Part Number | |
|
Part Name
|
1080P Embedded AHD Encoder w/SD Card Slot for Recording
|
|
Encoding
|
Max. 1ch Encoding
|
|
Video Input
|
1ch AHD Input, Max. 1920*1080P@50/60FPS
|
|
System Mode
|
Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60
|
|
Frame Rate
|
Up to 25/30 or 50/60, Configurable, Determined by System Mode
|
|
Encoding Performance
|
Max. 1080p@55fps, Tested by Playing RTSP Stream in PotPlayer
|
|
Video Output
|
1ch Output by Ethernet
|
|
Audio I/O
|
3.5mm Line-In/Out(2PIN PH1.25)
|
|
Alarm I/O
|
Supported
|
|
RS485
|
Supported
|
|
Local Recording
|
Built-in Micro SD slot for Local Recording, Max. 128GB
|
|
Interfaces
|
1x AHD In, 1x 3.5mm Line-I/O, 1x Alarm I/O, 1x RS485, 1x Micro-SD Slot, 1x Battery, 1x RJ45
|
Specification
Video Input/Output
|
Item
|
Description
|
|
Video Input Interfaces
|
AHD
|
|
Max. Input Resolution
|
1080P@60FPS
|
|
Supported Input Resolutions
|
1920x1080, 1280x720
|
|
Unsupported Input Resolutions
|
1366x768, 1080i
|
|
Output Interfaces
|
Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(Micro SD Card), FTP
|
Audio Input/Output
|
Item
|
Description
|
|
Audio Input Interfaces
|
PH1.25 Terminal
|
|
Audio Sampling Rate
|
8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
|
|
Audio Input Volume
|
0~100, Adjustable for 3.5mm TRS Line-IN ONLY
|
|
Audio Output Interfaces
|
PH1.25 Terminal/Network Audio Stream
|
|
Audio Output Volume
|
0~100, Adjustable for Intercom ONLY
|
Alarm Input/Output
|
Item
|
Description
|
|
Alarm Input Interfaces
|
PH1.25 Terminal
|
|
Alarm I/O Level
|
High Level/Low Level Configurable
|
|
Motion Detection
|
Configurable, Detection Area, Sensitivity, Output Option(IO, Record, FTP, Snap)
|
|
Person Detection
|
Configurable, Detection Area, Sensitivity, Output Option(IO, Record, FTP, Snap)
|
|
RS485
|
PTZ Control, Pelco-D/Pelco-P
|
Video Encoding
|
Item
|
Description
|
|
Supported Video Standards
|
H.264/AVC, H.265/HEVC
|
|
Video Encoding Channels
|
1
|
|
Main Stream
|
1920x1080, 1280x720
|
|
Sub Stream
|
1280x720, 704x576, 640x480, 640x360, 352x288, 320x240
|
|
Max. Encoding Resolution
|
1080@60FPS
|
|
Bitrate Control Mode
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|
Framerate
|
Up to 25/30FPS or 50/60FPS, Determined by System Mode
|
|
GOP(Key Interval)
|
5-200
|
|
Bitrate
|
64-12000Kbit/s
|
|
OSD Overlay
|
Date&Time, Text, Picture(JPG, PNG)
|
Audio Encoding
|
Item
|
Description
|
|
Supported Audio Codecs
|
AAC, G.711A, G.711U
|
|
Audio Encoding Channels
|
1
|
|
Audio Bitrate Range
|
32K/64K/128K/256K
|
|
Audio Channels Supported
|
Stereo/Mono
|
Video Stream
|
Item
|
Description
|
|
Concurrent Stream Count
|
6x RTSP Streams
|
|
Stream Latency
|
70~140ms(PC-To-Encoder+Decoder HDMI Output)
|
|
Stream Types Supported
|
Live Streaming, Multicast Streaming
|
|
TS (Main Stream)
|
|
|
TS (Sub Stream)
|
|
|
HLS (Main Stream)
|
|
|
HLS (Sub Stream)
|
|
|
RTSP (Main Stream)
|
rtsp://192.168.1.120:554/live/1_0
|
|
RTSP (Sub Stream)
|
rtsp://192.168.1.120:554/live/1_1
|
|
UDP
|
udp://@224.1.2.3:10000
|
Protocols & Networking
|
Item
|
Description
|
|
Networking Protocols
|
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, FTP
|
|
Streaming Protocols
|
RTSP Pull, RTSP Push, RTMP, RTMPS, SRT, HLS, TS, UDP
|
|
PTZ Protocol
|
Pelco-D/Pelco-P
|
|
ONVIF Protocol
|
Compatible
|
|
HK/DH Protocol
|
Compatible
|
|
Security Features
|
RTSP Authentication, ONVIF Authentication
|
Interface
|
Item
|
Description
|
|
Physical Input Interfaces
|
1x AHD, 1x 3.5mm TRS Line-In(PH1.25), 1x Alarm In(PH1.25), 1x DC12V In (PH1.25)
|
|
Physical Output Interfaces
|
1x Network Port Terminal(4PIN PH1.25), 1x 3.5mm TRS Line-Out(PH1.25), 1x Alarm Out(PH1.25), 1x DC12V Out(PH1.25)
|
|
Network Interface
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
Local Recording
|
1ch Built-in Micro SD Slot for Local Recording, Max. 128GB
|
General
|
Item
|
Description
|
|
Default Credentials
|
User: admin; Password: 12345
|
|
Default Static IP
|
192.168.1.120
|
|
Power Supply
|
DC12 1A or Higher
|
|
Power Consumption
|
≤3w
|
|
Operating Temperature
|
-10°C~+55°C[14°F~131°F]
|
|
Operating Humidity
|
≤95%
|
|
Unit Dimension
|
38mm x 38mm x 8mm[1.5in x 1.5in x 0.31in]
|
|
Package Dimension
|
172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
|
|
Net Weight
|
9.5g[0.02lb, 0.34oz]
|
|
Gross Weight
|
100g[0.22lb, 3.53oz]
|
