Video of Codec
Video

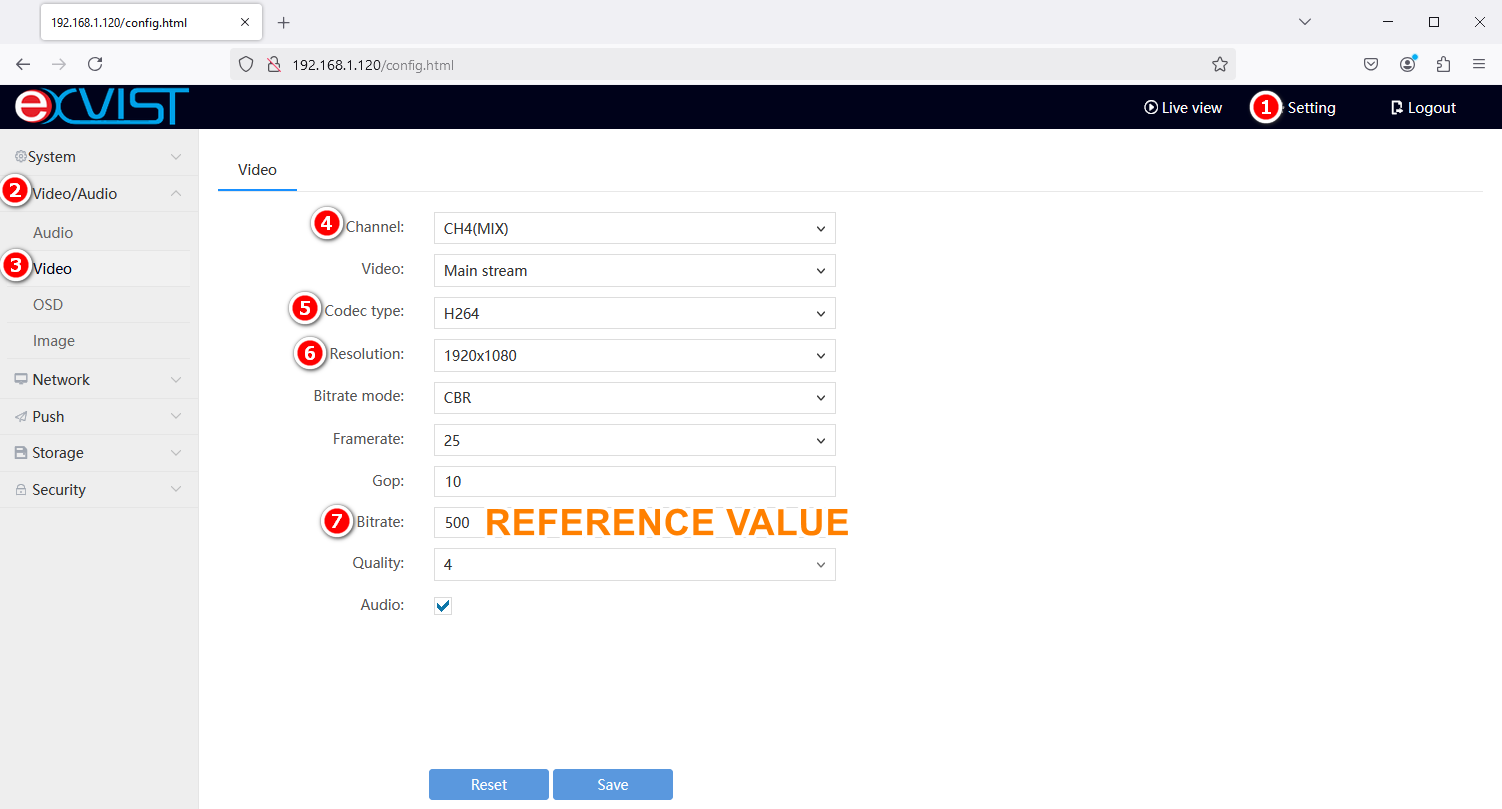

- Go to Setting->Video/Audio->Video
Item | Description |
Channel | CH1~CH8 (Determined by added decoding channels) |
Video | Main stream/Sub stream |
Codec type | H.264/H.265 |
Resolution | Up to 1920*1080P(Main Stream) |
Bitrate Mode | VBR/CBR |
Framerate | Up to 25/30fps ONLY. |
GOP(Key Interval) | 5-200 |
Bitrate | 64-12000Kbit/s |
Quality | 0-5(VBR available only) |
Audio | ON/OFF |
NOTES:
- Configuring video settings for decoding channels, such as CH5 to CH8, is not supported.
- Lowering the Key Interval (GOP) can improve image quality in certain cases if required.
- It's a good practice to set a lower bitrate, such as 500Kbits/s, if your local bandwidth is limited. Lowering the bitrate reduces the amount of data used for streaming video, which can help improve the quality and stability of the stream when network conditions are poor or bandwidth is constrained because too much uploading bandwidth will be occupied.
- H.264 is supported for RTMP ONLY while H.264 & H.265 are supported for Preview, RTSP Pull and Push. For more details, prefer to Preview of Codec.
- If it's required to view image directly in ODM(ONVIF Device Manager), it's necessary to disable.
Learn more about FAQs of Video
