RTSP Push of Codec
RTSP

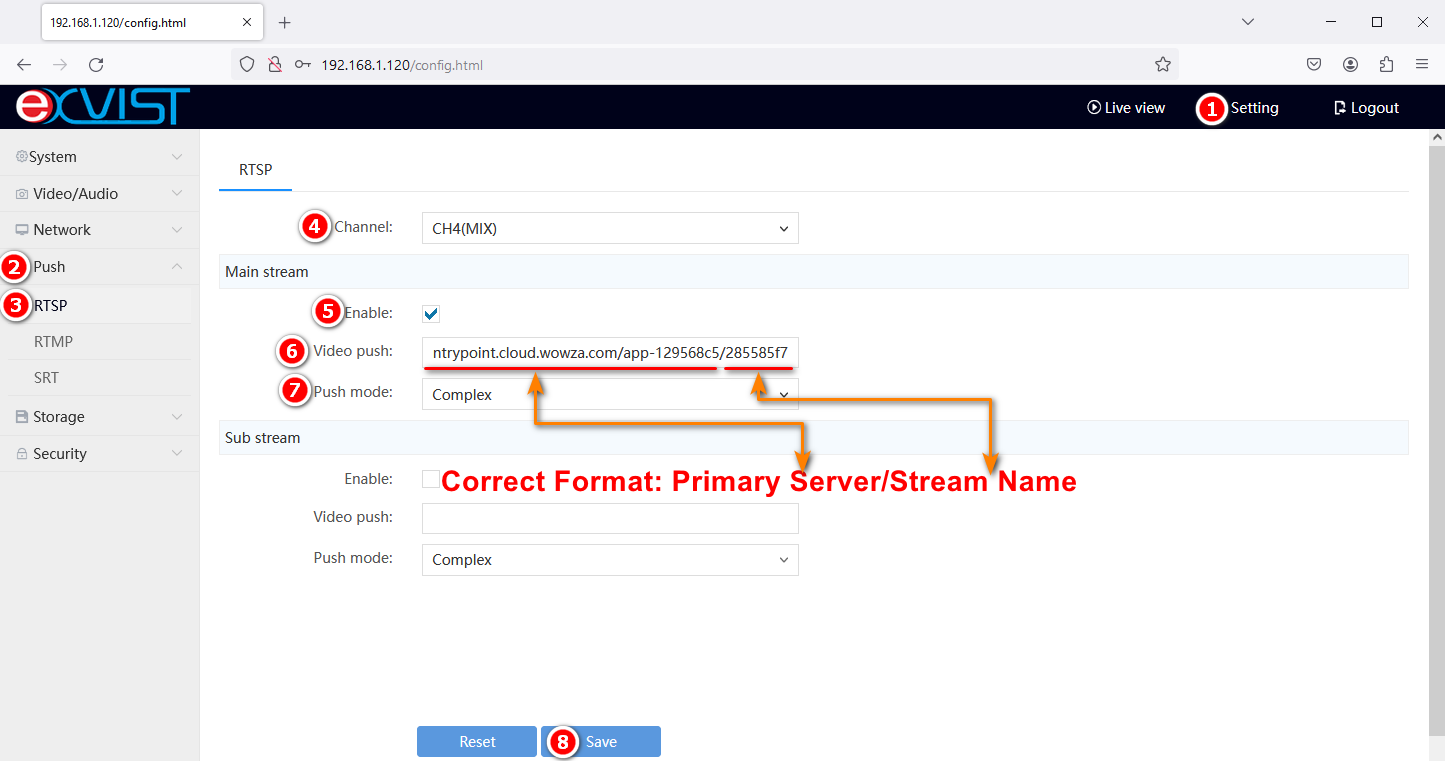

- Go to Setting->Push->RTSP
| Item | Description |
|
Main Stream
|
Enable: Check the checkbox;
Video Push: Enter PUSH URL;
Push Mode: Complex/Video/Audio
|
|
Sub Stream
|
Enable: Check the checkbox;
Video Push: Enter PUSH URL;
Push Mode: Complex/Video/Audio
|
|
Push Mode
|
Three modes: Complex(Video&Audio), Video only, Audio only
|
|
Push URL
|
Get the URL from live streaming platform
|
🧙TIPS: take Wowza for example, the general format of PUSH URL is: Primary Server/Stream Name. For more details, please refer to
Learn more about FAQs of RTSP Push
