RTMP of Codec

RTMP

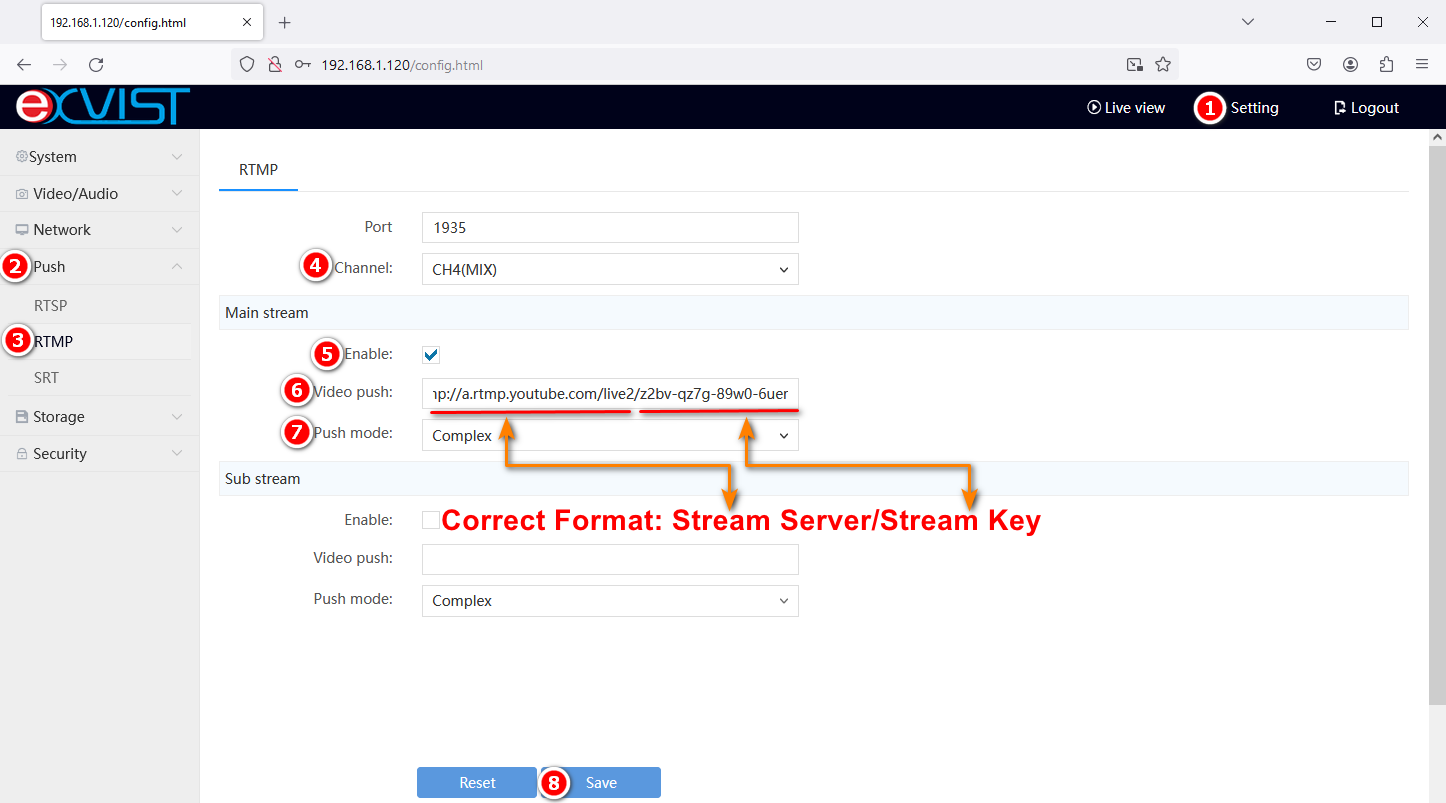

  1. Go to Setting->Network->RTMP
Item Description
Channel
CH1~CH8(Determined by added decoding channel)
Main Stream
Enable: Check the checkbox;
Video Push: Enter PUSH URL;
Push Mode: Complex/Video/Audio
Sub Stream
Enable: Check the checkbox;
Video Push: Enter PUSH URL;
Push Mode: Complex/Video/Audio
Push Mode
Three modes: Complex(Video&Audio), Video only, Audio only
Push URL
Get the URL from live streaming platform

Info
🧙TIPS: take YouTube for example, the general format of PUSH URL is: Stream Server/Stream Key

Learn more about FAQs of RTMP

  1. FAQs: RTMP of Codec
