RTSP of Codec
RTSP

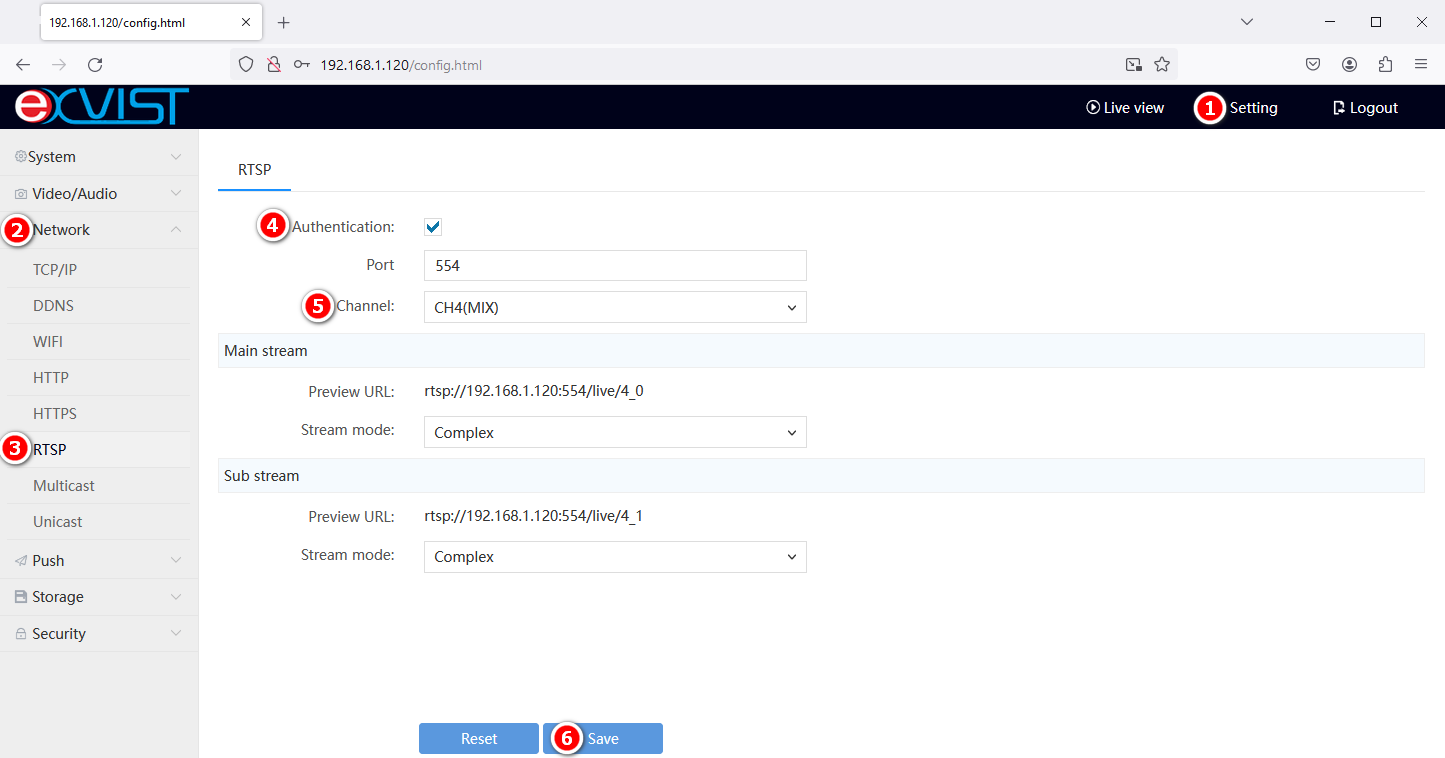

- Go to Setting->Network->RTSP
| Item |
Description
|
|
Authentication
|
Check the checkbox to enable Authentication
|
|
Port
|
Change port if required
|
|
Channel
|
CH1~CH8 (Determined by added decoding channels)
|
|
Main Stream
|
Preview URL: rtsp://192.168.1.120:554/live/1_0;
Stream mode: Complex/Video/Audio;
|
|
Sub Stream
|
Preview URL: rtsp://192.168.1.120:554/live/1_1;
Stream mode: Complex/Video/Audio;
|
|
Complex
|
Video & Audio together
|
🧙TIPS: When pulling an RTSP (Real Time Streaming Protocol) stream, it is possible to test the real frames per second (FPS) by copying the RTSP stream URL into media players such as VLC or PotPlayer. However, PotPlayer may offer a better experience for testing real FPS. PotPlayer is known for providing robust support for various video formats and streaming protocols. It offers advanced video playback capabilities that may include detailed display of video properties, such as the frames per second. This can be useful for analyzing the actual performance of a real-time video stream and accurately measuring its FPS.Video Tutorial of Getting Lower Latency via VLC
How can we get lower latency via VLC when playing video on your iPad?
Learn more about FAQs of RTSP
