Multicast of Codec
Multicast

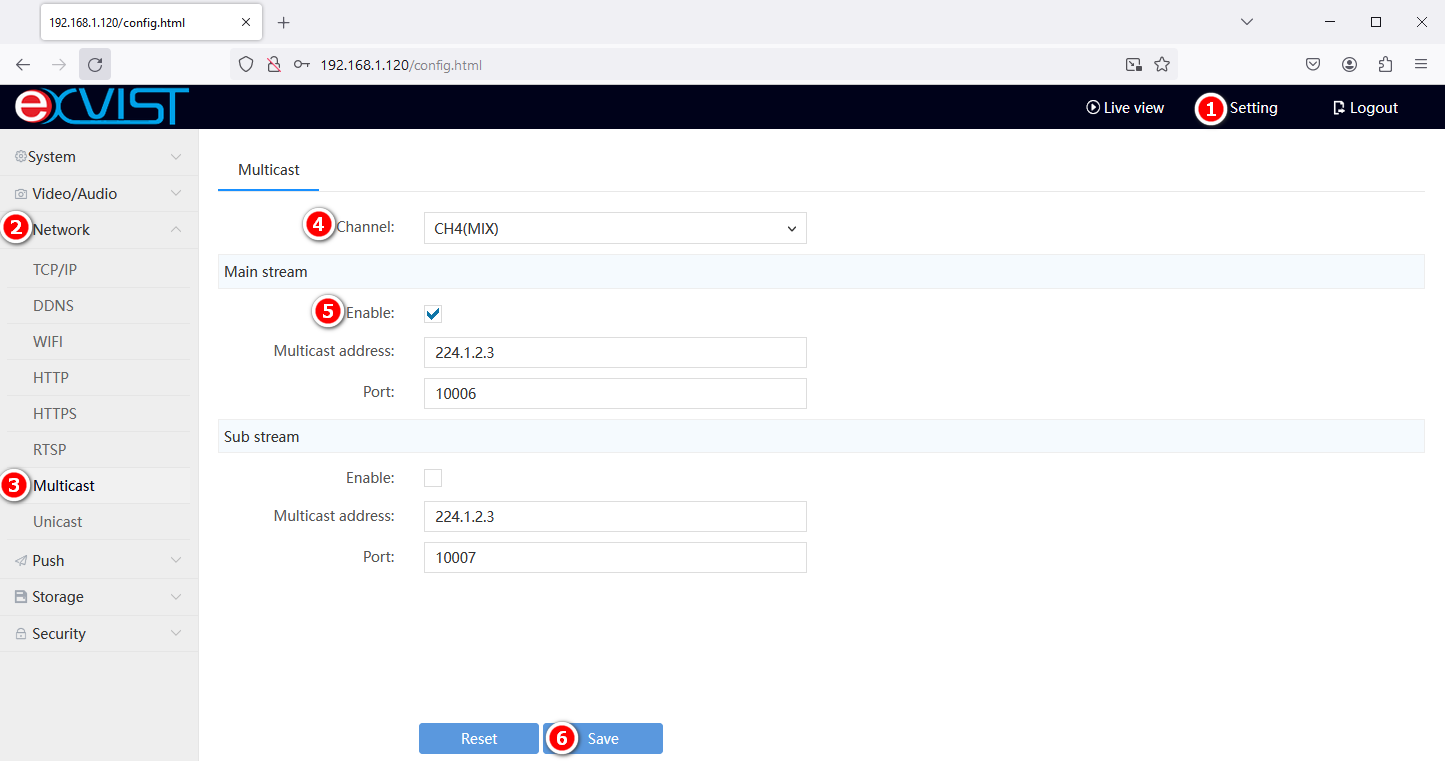

- Go to Setting->Network->Multicast
|
Item
|
Description |
|
Main Stream
|
Enable: Check the checkbox;
Multicast address: 224.1.2.3;
Port: change port if required;
|
|
Sub Stream
|
Enable: Check the checkbox;
Multicast address: 224.1.2.3;
Port: Change port if required;
|
Video Tutorial
Simply transmit video stream via UDP
