Datasheet of ON-MIX-30D
Overview
EXVIST Basic HDMI Encoder Decoder W/Loopout & Screen & USB2.0
ON-DMI-30D is designed for industrial control which enables users to stream live video to YouTube or Facebook via wired connection. With the capability of decoding, it can not only decode feeds from EXVIST's streaming encoder via SQ private protocol, but also pull video stream from IP cameras like EXVIST, Hikvision etc. via RTSP directly. It's ideal for projects or medical forum if it's required to integrate multiple images together and broadcast simultaneously as well as record video by inserting one USB flash drive. Application scenarios are as below:
- IPTV, Hotel TV System
- Digital Signage, Video Conference, Video Capture
- Live Broadcasting or Streaming to YouTube or Wowza etc.
- Distance Education, Campus Broadcast, Telemedicine
- Multimedia Stitching Display
- NVR, Recording System, Video Surveillance
Advantages
- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264) like IPTV, but also for pushing stream via RTMP (H.264 only) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable not only for basic CCTV surveillance, NVR, recording system, but also for live broadcasting like IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. With HLS(H.264 Only), you can also view live video on your smartphone directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast etc protocols supported. It's compatible with Onvif and Hikvision private protocol which allows it work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Multiple Decoding - Available for simultaneously decoding video streams over HTTP, RTSP, RTMP, TS, HLS, SQ(Private Protocol) up to 3 channels from EXVIST video encoders and IP cameras. Then it's okay to output via HDMI directly or even select corresponding channels or fusion channel to stream to different platforms via different protocols independently.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
- Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted USB flash drive(128G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P Basic HDMI Encoder w/Screen, HDMI Loopout, USB2.0 for Recording
|
|
Encoding|Decoding
|
Max. 2ch encoding & decoding, including 1ch HDMI input, up to 3ch decoding input
|
|
HDMI Input
|
Max. 1920*1080P@60FPS, Encoding Up to 30FPS ONLY
|
|
Decoding Input
|
Max. 1ch 4K or 3ch 1080p SQ/RTSP/RTMP/TS network stream decoding input from IP camera, encoder etc. If it's required to decode 1ch 4K or 3ch 1080p, HDMI input should be disabled to make it valid.
|
|
USB Input
|
Not Supported, Built-in USB2.0 for Local Recording ONLY
|
|
Image Fusion
|
Supported, 1ch/2ch/3ch image fusion preview and output
|
|
Video Output
|
1ch/2ch/3ch image fusion output by HDMI loopout or network stream
|
|
HDMI Output
|
1ch HDMI Output, Max. 1920*1080P@30fps
|
|
Audio Input
|
Embedded over HDMI or 3.5mm Line-In
|
|
Audio Output
|
Embedded over HDMI or 3.5mm Line-Out
|
|
Audio Mix
|
Supported, Available for Latest Firmware ONLY, Combining Audio from HDMI and Line-In to Output, But Decrease Volume for Active Audio
|
|
Local Recording
|
Built-In USB2.0 for Local Recording, Max. 128GB
|
|
Interfaces
|
1x HDMI In, 1x HDMI Out, 1x 3.5mm Line-In, 1x 3.5mm Line-Out, 1x USB2.0, 1x Hardware Reset Button, 1x RJ45
|
Specification
|
Part Number
|
|
|
SOC
|
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
|
|
Model: ON-DMI-30D (Max. 1080P@60FPS)
|
|
|
Video/Audio Encoding
|
Video Encoding: H.265/H.264
|
|
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
|
|
|
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
|
|
|
Frame Rate: 52Hz: 1-25fps; 60Hz: 1-30fps(Configurable)
|
|
|
Main Stream: 1920*1080, 1600*900, 1440*1052, 1440*900, 1360*768, 1280*1024, 1280*720
|
|
|
Sub Stream: 704*576, 640*480, 640*352, 352*288, 320*240
|
|
|
Video/Audio Decoding
|
Video Decoding: H.265/H.264
|
|
Audio Decoding: AAC/G.711A/G.711U
|
|
|
Decoding Performance: Up to 3ch 1080P@60FPS or 1ch 4K@30FPS(Only)
|
|
|
Media Protocol: RTSP, RTMP, TS, SQ(Private Protocol)
|
|
|
Compatible Devices: EXVIST HDMI video encoders, EXVIST IP Cameras, Hikvision IP Cameras, AXIS IP Camera P3365, and other devices with standard protocols
|
|
|
USB Input
|
Not Supported, Built-in USB2.0 for Local Recording ONLY
|
|
Image Fusion
|
Supported, 1ch/2ch/3ch image fusion preview and output
|
|
Video/Audio Output
|
1ch/2ch/3ch image fusion output by HDMI loopout or network stream
|
|
Video Stream
|
TS (Main Stream): http://192.168.1.120:80/ts/1_0
|
|
TS (Sub Stream): http://192.168.1.120:80/ts/1_1
|
|
|
HLS (Main Stream): http://192.168.1.120/hls/1_0.m3u8
|
|
|
HLS (Sub Stream): http://192.168.1.120/hls/1_1.m3u8
|
|
|
RTSP (Main Stream): rtsp://192.168.1.120:554/live/1_0
|
|
|
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1_1
|
|
|
UDP: udp://@224.1.2.3:10000
|
|
|
Protocols
|
TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, ONVIF
|
|

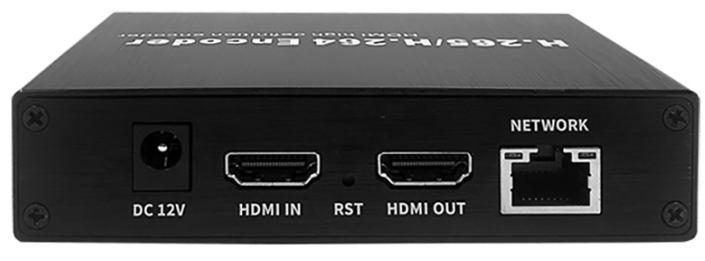

Interface
|
Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
|
|
HDMI: 1ch HDMI Input, 1ch HDMI Output
|
|
|
USB: 1ch USB2.0, available for recording/playing
|
|
|
Audio: 1ch 3.5mm Line-in Port, 1ch 3.5mm Line-out Port
|
|
|
Power: 1ch DC12V Power Input
|
|
|
Reset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
|
|
|
Others
|
Operating Temperature: -10°C~+55°C[14°F~131°F]
|
|
Operating Humidity: ≤95%(Non-Condensing)
|
|
|
Power Supply: DC12V 1A or Higher
|
|
|
Power Consumption: ≤3W
|
|
|
Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
|
|
|
Package Dimension: 220mm x 152mm x 60mm[8.7in x 5.9in x 2.4in]
|
|
|
Net Weight: 186g[0.41lb, 6.56oz]
|
|
|
Gross Weight: 385g[0.85lb, 13.58oz]
|
|
|
Application
|
IPTV Satellite Modulator/Hotel TV System
|
|
CCTV Camera/Camcorder
|
|
|
UAV Image Transmission/DLSR Camera
|
|
|
Drone/DV/FPV/Medical Equipment
|
|
|
Digital Signage/Video Conference
|
|
|
Online Live Streaming Broadcast or Server
|
|
|
Teaching/Campus Broadcast/Telemedicine
|
|
|
Multimedia Stitching Display
|
|
|
NVR/Recording System
|
|
|
Package Include
|
1x HDMI Video Encoder Decoder with HDMI Loopout
|
|
1x DC12V 1A Power Adapter
|
|
|
1x HDMI Cable(1M)
|
|
|
1x Ethernet Cable(1M)
|
|
|
1x Live Broadcasting Quick Guide
|
