Datasheet of ON-MIX-30BP
Overview

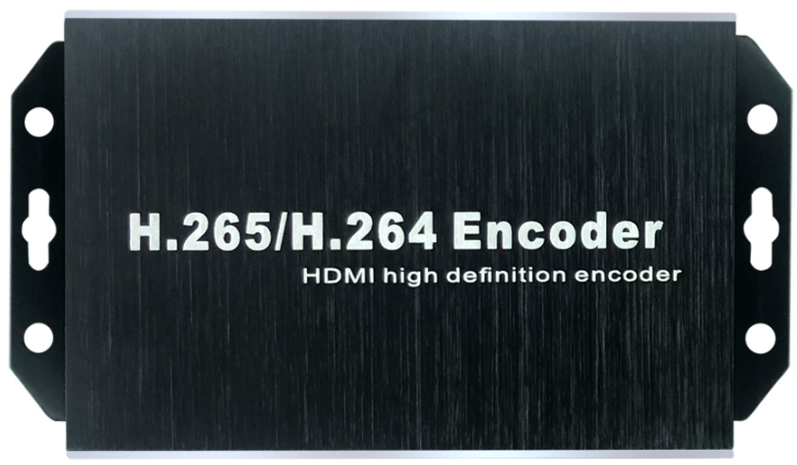

EXVIST PoE HDMI Encoder Decoder W/Loopout & USB2.0
ON-MIX-30BP is designed for industrial control with built-in PoE module which enables users to power it on directly via just one Ethernet cable as long as it's connected to standard PoE switch(at least 48W). With the capability of decoding, it can not only decode feeds from EXVIST's streaming encoder via SQ private protocol, but also pull video stream from IP cameras like EXVIST, Hikvision etc. via RTSP directly. It's ideal for projects or medical forum if it's required to integrate multiple images together and broadcast simultaneously as well as record video by inserting one USB flash drive. Application scenarios are as below:
- IPTV, Hotel TV System
- Digital Signage, Video Conference, Video Capture
- Live Broadcasting or Streaming to YouTube or Wowza etc.
- Distance Education, Campus Broadcast, Telemedicine
- Multimedia Stitching Display
- NVR, Recording System, Video Surveillance
Advantages
- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264) like IPTV, but also for pushing stream via RTMP (H.264 only) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable not only for basic CCTV surveillance, NVR, recording system, but also for live broadcasting like IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. With HLS(H.264 Only), you can also view live video on your smartphone directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast etc protocols supported. It's compatible with Onvif and Hikvision private protocol which allows it work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Multiple Decoding - Available for simultaneously decoding video streams over HTTP, RTSP, RTMP, TS, HLS, SQ(Private Protocol) up to 3 channels from EXVIST video encoders and IP cameras. Then it's okay to output via HDMI directly or even select corresponding channels or fusion channel to stream to different platforms via different protocols independently.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
- Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted USB flash drive(128G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P PoE HDMI Encoder|Decoder w/HDMI Loopout, USB2.0 for Recording
|
|
Encoding|Decoding
|
Max. 2ch encoding & decoding, including 1ch HDMI input, up to 3ch decoding input
|
|
HDMI Input
|
Max. 1920*1080P@60FPS, Encoding Up to 30FPS ONLY
|
|
Decoding Input
|
Max. 1ch 4K or 3ch 1080p SQ/RTSP/RTMP/TS network stream decoding input from IP camera, encoder, NVR etc. If it's required to decode 1ch 4K or 3ch 1080p, HDMI input should be disabled to make it valid.
|
|
USB Input
|
Not Supported, Built-in USB2.0 for Local Recording ONLY
|
|
Image Fusion
|
Supported, 1ch/2ch/3ch image fusion preview and output
|
|
Video Output
|
1ch/2ch/3ch image fusion output by HDMI loopout or network stream
|
|
HDMI Output
|
1ch HDMI Output, Max. 1920*1080P@30fps
|
|
Audio Input
|
Embedded over HDMI or 3.5mm Line-In
|
|
Audio Output
|
Embedded over HDMI or 3.5mm Line-Out
|
|
Audio Mix
|
Supported, Available for Latest Firmware ONLY, Combining Audio from HDMI and Line-In to Output, But Decrease Volume for Active Audio
|
|
Local Recording
|
Built-In USB2.0 for Local Recording, Max. 128GB
|
|
Interfaces
|
1x HDMI In, 1x HDMI Out, 1x 3.5mm Line-In, 1x 3.5mm Line-Out, 1x USB2.0, 1x Hardware Reset Button, 1x RJ45
|
Specification
Video Input/Output
|
Item
|
Description
|
|
Video Input Interfaces
|
HDMI1.4 Input, Network Stream Input, USB2.0 Input
|
|
Max. Input Resolution
|
1080P@60FPS
|
|
Supported Input Resolutions
|
3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
|
|
Unsupported Input Resolutions
|
1366x768, 1080i
|
|
Output Interfaces
|
Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(USB2.0), HDMI Loopout
|
|
Output Mode
|
Configurable, 1ch/2ch/3ch/4ch Image Fusion Output
|
|
Loopout Resolution
|
Same as Input Resolution
|
|
Max. Loopout Resolution
|
1080P@60FPS |
Network Stream Input
|
Item
|
Description |
|
Supported Protocols
|
RTSP(H.264/H.265), RTMP, TS, HLS, SQ(Private Protocol for Encoder, Decoder, IP Cameras from EXVIST)
|
|
Max Concurrent Streams
|
1ch 4K@30FPS Decoding Input or 3ch 1080P@60FPS Decoding Input
|
|
Compatible Devices
|
EXVIST Encoders/IPC, Hikvision IPC, AXIS IPC P3365, Dahua IPC, RaySharp NVRs and IPC, TVT IPC, UNV IPC, Reolink IPC, TP-LINK IPC like the C520WS, and other ONVIF-compliant Devices.
|
|
Compatibility Note
|
While compatible with most ONVIF-conformant devices, successful decoding of RTSP streams from different brands isn't guaranteed. In case of failure, further debugging and integration may be needed.
|
USB Input
|
Item
|
Description |
|
USB Camera Support
|
N/A
|
|
USB Camera Compatibility
|
N/A
|
|
USB Storage Support
|
Max. 2ch USB2.0 Input
|
|
MP4 File Format
|
File System: FAT32; File Size: less than 4G; Video Encoding: H.264, H.265; Audio Encoding: AAC;
|
|
Video Resolution
|
USB2.0: Max 1080P@30FPS
|
Audio Input/Output
|
Item
|
Description |
|
Audio Input Interfaces
|
HDMI Embedded or 3.5mm TRS Line-In or Network Stream Embedded or USB Input
|
|
Audio Sampling Rate
|
8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
|
|
Audio Input Volume
|
0~100, Adjustable for 3.5mm TRS Line-In ONLY
|
|
Audio Output Interfaces
|
Network Audio Stream, Local Audio Output(HDMI), 3.5mm TRS Line-Out
|
|
Audio Output Volume
|
0~100, Adjustable for 3.5mm TRS Line-OUT ONLY
|
Video Encoding
|
Item
|
Description
|
|
Supported Video Standards
|
H.264/AVC, H.265/HEVC
|
|
Video Encoding Channels
|
3
|
|
Main Stream
|
1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
|
|
Sub Stream
|
720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
|
|
Max. Encoding Resolution
|
720P@30FPS
|
|
Bitrate Control Mode
|
Constant Bitrate(CBR)/Variable Bitrate(VBR)
|
|
Framerate
|
Up to 25/30FPS ONLY
|
|
GOP(Key Interval)
|
5–200 frames (Min Key Interval: 5)
|
|
Bitrate
|
64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
|
|
OSD Overlay
|
Date&Time, Text, Picture(JPG, PNG)
|
Audio Encoding
|
Item
|
Description
|
|
Supported Audio Codecs
|
AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
|
|
Audio Encoding Channels
|
3
|
|
Audio Bitrate Range
|
32K/64K/128K/256K
|
|
Audio Channels Supported
|
Stereo/Mono
|
Video Stream
|
Item
|
Description
|
|
Concurrent Stream Count
|
6x RTSP Streams
|
|
Stream Latency
|
70~140ms(PC-To-Encoder+Decoder HDMI Output)
|
|
Stream Types Supported
|
Live Streaming, Multicast Streaming
|
|
TS (Main Stream)
|
|
|
TS (Sub Stream)
|
|
|
HLS (Main Stream)
|
|
|
HLS (Sub Stream)
|
|
|
RTSP (Main Stream)
|
rtsp://192.168.1.120:554/live/1_0
|
|
RTSP (Sub Stream)
|
rtsp://192.168.1.120:554/live/1_1
|
|
UDP
|
udp://@224.1.2.3:10000
|
Protocols & Networking
|
Item
|
Description
|
|
Networking Protocols
|
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
|
|
Streaming Protocols
|
RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP
|
|
ONVIF Protocol
|
Compatible
|
|
HK/DH Protocol
|
Compatible
|
|
Security Features
|
RTSP Authentication, ONVIF Authentication
|
Interface
|
Item
|
Description
|
|
Physical Input Interfaces
|
1x HDMI1.4, 1x 3.5mm TRS Line-In
|
|
Physical Output Interfaces
|
1x HDMI1.4, 1x 3.5mm TRS Line-Out, 1x Network Port(10/100M)
|
|
Network Interface
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
USB Port
|
1ch USB2.0 for Local Recording/Playback, Max. 128GB
|
|
Reset/Record
|
1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
|
|
Screen Type
|
N/A
|
General
|
Item
|
Description
|
|
Default Credentials
|
User: admin; Password: 12345
|
|
Default Static IP
|
192.168.1.120
|
|
Power Supply
|
DC12V 1A or PoE: IEEE802.3af
|
|
Power Consumption
|
≤3w
|
|
Operating Temperature
|
-10°C~+55°C[14°F~131°F]
|
|
Operating Humidity
|
≤95%
|
|
Unit Dimension
|
134mm x 74mm x 30mm[5.28in x 2.9in x 1.18in]
|
|
Package Dimension
|
172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
|
|
Net Weight
|
186g[0.41lb, 6.56oz]
|
|
Gross Weight
|
405g[0.89lb, 14.29oz]
|
