Datasheet of ON-DMI-16DM
Overview
EXVIST Network Decoder with Mini HDMI Output Only
The ON-DMI-16DM is a specialized video decoder designed to seamlessly convert IP signals from various sources such as IP cameras and encoders into Mini HDMI output. But it does NOT support live streaming of video content to popular platforms like YouTube and Facebook over an internet connection because it doesn't support video encoding.
Key Features:
- IP Signal Decoding: Capable of decoding IP signals from compatible sources including Hikvision, Dahua, Axis, and EXVIST cameras.
- Mini HDMI Output: Converts decoded video into Mini HDMI format for easy connection to displays or recording devices.
- Versatile Compatibility: Works with a range of IP cameras, catering to diverse industrial and personal need.

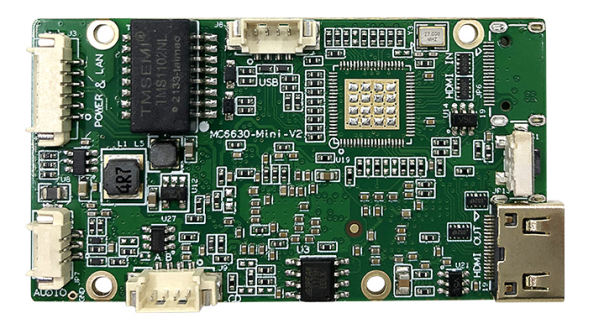

Hardware
Advantages
- Multiple Applications - With HLS(H.264 Only), you can also view live video on your smartphone, iPad directly with picture in picture.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HLS, HTTP, HTTPS, RTP, RTSP, TS, UDP, Multicast etc protocols supported.
- Cross Browsers - Real cross browsers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, set bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
Parameters
|
Part Number
|
|
|
Part Name
|
1080P Network Decoder with Mini HDMI Output for Live Streaming
|
|
Decoding
|
Max. 1ch Decoding
|
|
Decoding Input
|
Max. 1ch 4K or 1ch 1080p SQ/RTSP/RTMP/TS network stream decoding input from IP camera, encoder etc.
|
|
Video Output
|
1ch Output by Ethernet
|
|
HDMI Output
|
1ch Mini HDMI Output
|
|
Audio I/O
|
Network Stream Embedded or 3.5mm TRS Line-In(2PIN PH1.25)
|
|
Audio Mix
|
Available
|
|
Interfaces
|

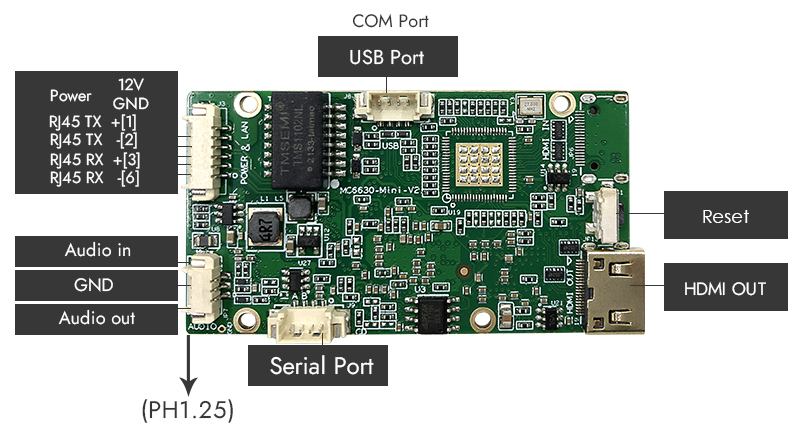

1x Mini HDMI Output, 1x 3.5mm Line-In Audio Jack(2PIN PH1.25), 1x Hardware Reset Button, 1x RJ45(6PIN PH1.25, 2PIN for Power Supply DC12V)
|
Specification
Video Input/Output
|
Item
|
Description
|
|
Video Input Interfaces
|
Network Stream Input
|
|
Max. Input Resolution
|
1080P@60FPS
|
|
Supported Input Resolutions
|
3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
|
|
Video Output Interfaces
|
Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Mini HDMI Output
|
|
Output Resolution
|
1080P@60FPS
|
Network Stream Input
|
Item
|
Description |
|
Supported Protocols
|
RTSP(H.264/H.265), RTMP, TS, HLS, SQ(Private Protocol for Encoder, Decoder, IP Cameras from EXVIST)
|
|
Max Concurrent Streams
|
1ch 4K@30FPS Decoding Input or 1ch 1080P@60FPS Decoding Input
|
|
Compatible Devices
|
EXVIST Encoders/IPC, Hikvision IPC, AXIS IPC P3365, Dahua IPC, RaySharp NVRs and IPC, TVT IPC, UNV IPC, Reolink IPC, TP-LINK IPC like the C520WS, and other ONVIF-compliant Devices.
|
|
Compatibility Note
|
While compatible with most ONVIF-conformant devices, successful decoding of RTSP streams from different brands isn't guaranteed. In case of failure, further debugging and integration may be needed.
|
Audio Input/Output
|
Item
|
Description |
|
Audio Input Interfaces
|
Network Stream Embedded or 3.5mm TRS Line-In(2PIN PH1.25)
|
|
Audio Sampling Rate
|
8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
|
|
Audio Input Volume
|
0~100, Adjustable for 3.5mm TRS Line-In ONLY
|
|
Audio Output Interfaces
|
Network Audio Stream, Local Audio Output(Mini HDMI)
|
|
Audio Output Volume
|
0~100, Adjustable for Intercom ONLY
|
Audio Encoding
|
Item
|
Description
|
|
Supported Audio Codecs
|
AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
|
|
Audio Encoding Channels
|
1
|
|
Audio Bitrate Range
|
32K/64K/128K/256K
|
|
Audio Channels Supported
|
Stereo/Mono
|
Video Stream
|
Item
|
Description
|
|
Concurrent Stream Count
|
6x RTSP Streams
|
|
Stream Latency
|
70~140ms(PC-To-Encoder+Decoder HDMI Output)
|
|
Stream Types Supported
|
Live Streaming, Multicast Streaming
|
|
TS (Main Stream)
|
|
|
TS (Sub Stream)
|
|
|
HLS (Main Stream)
|
|
|
HLS (Sub Stream)
|
|
|
RTSP (Main Stream)
|
rtsp://192.168.1.120:554/live/1_0
|
|
RTSP (Sub Stream)
|
rtsp://192.168.1.120:554/live/1_1
|
|
UDP
|
udp://@224.1.2.3:10000
|
Protocols & Networking
|
Item
|
Description
|
|
Networking Protocols
|
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
|
|
Streaming Protocols
|
RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP
|
|
ONVIF Protocol
|
Compatible
|
|
HK/DH Protocol
|
Compatible
|
|
Security Features
|
RTSP Authentication, ONVIF Authentication
|
Interface
|
Item
|
Description
|
|
Physical Input Interfaces
|
1x 3.5mm TRS Line-In(2PIN PH1.25)
|
|
Physical Output Interfaces
|
1x Mini HDMI1.4, 1x Network Port(6PIN PH1.25)
|
|
Network Interface
|
1ch RJ45 10M/100M Self Adaptive Ethernet Port
|
|
Reset/Record
|
1ch Reset/Record(Press it for more than 5 seconds to reset)
|
|
Screen Type
|
N/A
|
General
|
Item
|
Description
|
|
Default Credentials
|
User: admin; Password: 12345
|
|
Default Static IP
|
192.168.1.120
|
|
Power Supply
|
DC12 1A or Higher
|
|
Power Consumption
|
≤3w
|
|
Operating Temperature
|
-10°C~+55°C[14°F~131°F]
|
|
Operating Humidity
|
≤95%
|
|
Unit Dimension
|
60mm x 35mm x 8mm[2.36in x 1.38in x 0.31in]
|
|
Package Dimension
|
130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in]
|
|
Net Weight
|
12g[0.03lb, 0.42oz]
|
|
Gross Weight
|
100g[0.22lb, 3.53oz]
|
